THIS PRODUCT IS NO LONGER AVAILABLE. Click to see similar products > Collet Chuck Multilock - BT40, BT50 (C-Series)
TOOLMASTERBT40-ASC32-105
Collet Chuck Multilock (C SERIES)
  • 1 of 1
    T300
Order Code: T300
BT40-ASC32-105 - Collet Chuck Multilock (C SERIES)
6-32mm
TOOLMASTER
ORDER CODE
T300
Model
BT40-ASC32-105
BT
BT40
Capacity
6-32mm

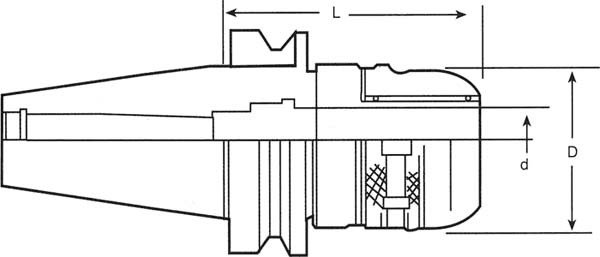

d (lowercase)
32mm
D
76mm
L
105mm
Collet Type
SC-32
Weight
3.0kg
Description
Collet chuck meet the specifications of machine tool builders (DIN 2080 taper shank grade AT-3 - 85% taper contact)
Collet chucks are rated to 10,000 rpm. (balancing up to 15,000 - 25,000 available on request)
Features
  • Heavy duty collet chuck designed for ripper cutters and heavy metal removal
  • Four layers of roller bearings provide increased gripping force
  • Run-out accuracy of 5 microns can be obtained 100mm out from chuck
  • The design ensures a powerful clamping force, minimising vibration and distortion
  • Spanner not included
