TOOLMASTERBT40 x ER16-70
Collet Chuck ER
  • 1 of 1
    T203
Order Code: T203
BT40 x ER16-70 - Collet Chuck ER
0.5-10mm
TOOLMASTER
ORDER CODE
T203
Model
BT40 x ER16-70
Rated RPM
10,000rpm
BT
BT40
Capacity
0.5-10mm

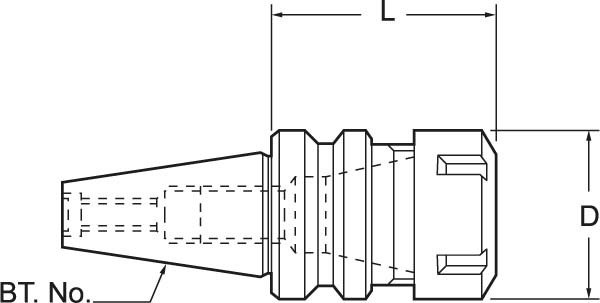

L
70mm
D
28mm
Collet Type
ER16
Weight
1.3kg
Description
All BT collet chucks meet the specifications of machine tool builders (DIN 2080 taper Shank Grade AT-3 - 85% taper contact) and are rated to 10,000 rpm (balancing available to 15,000 rpm)
Spanner not included
Features
  • Precision ground
  • Manufactured to MAS403BT40 standard
  • M16 Pull Stud thread
  • 70mm extension from the gauge line
