Tube Bender - Manual - 12B-M
Ø16 - Ø25mm Round Capacity
T063
1 of 2
Discontinued
Order Code: T063
1 Year Warranty
Made in Australia
Description
Tube Bender - Manual - 12B-M
Ø16 - Ø25mm Round Capacity
Overview
The 12B is the simplest & least expensive tube bender in the Swade-Sir range & uses the compression method of bending. It's design allows hand bending of medium to heavy wall steel & non-ferrous tube, & is bench mounted.
The machine is manufactured from high grad materials- semi steel body & former locking plate. All other components including formers are made from high quality steel.
Features include easy access for tube positioning & removal plus no clamping of tube or use of mandrel is required.
Suitable for setting up a number of banks for multiple bending operations. The machine can be fitted with slide blocks & special tooling for bending square, angle or section formed materials.
Made in Australia
The machine is manufactured from high grad materials- semi steel body & former locking plate. All other components including formers are made from high quality steel.
Features include easy access for tube positioning & removal plus no clamping of tube or use of mandrel is required.
Suitable for setting up a number of banks for multiple bending operations. The machine can be fitted with slide blocks & special tooling for bending square, angle or section formed materials.
Made in Australia
Features
- Engineered from the highest quality materials
- Simple setup and operation
- Speed with accuracy
- Hand operated - Bench mounted. Direction of bend right or left hand.
- Capacity 25mm x 3mm (1" x 10swg) mild steel and non-ferrous materials, 25mm x 3mm (1" x 10swg) stainless steel, 20mm (3/4") nominal bore pipe
- Maximum angle of Bend 180 degrees
- Maximum Radius 90mm (3-1/2") centre line radius
- Minimum Radius 50mm (2") centre line radius
- Overall Dimensions 470mm long x 450mm wide x 230mm high
- Weight approximately 34kg
Compare Product Range
Specifications
| ORDER CODE | T063 |
|---|---|
| MODEL | 12B-M |
| (Type)Material | Tube |
| (Type)Material Section | Round |
| (Type)Machine | Manual |
| (inch / mm)Round Tube Range (OD) - Mild Steel | Ø5/8 - Ø1" |

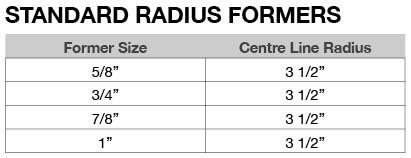

| (inch / mm)Tube Formers Included | 5/8", 3/4", 7/8", 1" |
| (inch / mm)Pipe Formers Included | ~ |
| (kg)Nett Weight | 34 |
