THIS PRODUCT IS NO LONGER AVAILABLE. Click to see similar products > Tube Benders - Manual & Electric
SWADESIR11B-MSQ
Tube Bender - Manual
  • 1 of 2
    Rear View
  • 2 of 2
    T060A
Order Code: T060A
11B-MSQ - Tube Bender - Manual
12 - 25mm Square Capacity
SWADESIR
ORDER CODE
T060A
Model
11B-MSQ
Tube Type
Square
Square Tube Capacity
12-25mm RHS
Formers Included

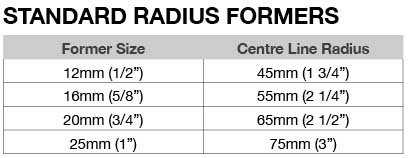

12,16,20,25mm Square
Weight (nett)
34kg
Description
The 11B and 11BH models are Universal Draw Bender type designed to form precision bends using mild steel, or non-ferrous materials in either tube or section forms.

Features include slide block pressure applied by cam action clamp, tube clamping by quick action cam lock giving ease & speed of operation plus rapid setting up times for short run production.

Simple bends without use of mandrel or slide block can be performed with the use of special slide block jaw attachment.

Made in Australia
Features
  • Engineered from the highest quality materials
  • Simple set-up and operation
  • Bench mounted
  • Hand operated
  • Bench mounted. Cam lock tube clamp. Cam lock slide block adjustment. Direction of bend left or right
  • Square tube capacity 25mm x 2.5mm, 25mm x 1.6mm
  • Maximum angle of Bend 180 degrees
  • Maximum Radius 125mm Centre Line Radius
  • Overall Dimensions 54cm long x 51cm wide x 13cm high
  • Weight Approximately 34kg
