TOOLMASTERK3-MT3
Reversible Tapping Chuck
  • 1 of 1
    T003
Order Code: T003
K3-MT3 - Reversible Tapping Chuck
M6 - M14
TOOLMASTER
ORDER CODE
T003
Model
K3-MT3
Arbor Mount
Fixed
Taper
3MT
Tapping Range
M6 - M14

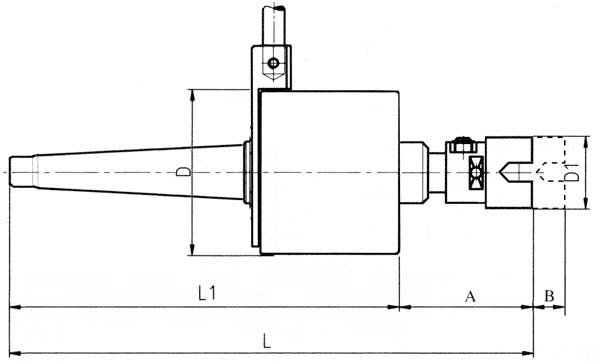

D
117mm
D1
38mm
L
270mm
L1
195mm
A
75mm
B
13mm
Weight (nett)
4.5kg
Description
Manufactured in Taiwan

Suits drilling and milling machines
Features
  • Special clutch device permits smooth drive and reverse
  • Pre-set depth control minimises possibility of tap breakage
  • Cushioned drive prevents thread distortion and cross-threading when tapping in two operations
  • Cushioned reverse provides smooth and vibration-free transition between forward and reverse drive
