THIS PRODUCT IS NO LONGER AVAILABLE. Click to see recommended item > S788 (RSTP 1270x86)
SAHINLERRM1270x90
Motorised Plate Curving Rolls
  • 1 of 2
    S794
  • 2 of 2
    Shown with Optional Ball Transfer Tables
Order Code: S794
RM1270x90 - Motorised Plate Curving Rolls (415V)
1270 x 2.5mm Mild Steel Capacity

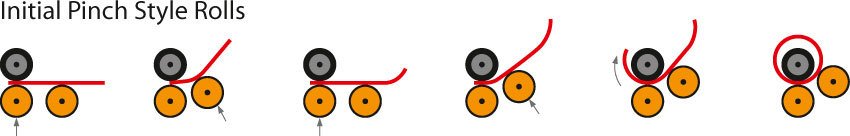

Initial Pinch Design
SAHINLER
ORDER CODE
S794
Model
RM1270x90
Curving System Type
Initial Pinch
Curving Material Length
1270mm
Curving Plate Thickness - Mild Steel
2.5mm
Minimum Rolling Diameter
135mm
Roll Diameter
90mm
Motor Power
1.1kW / 1.5hp
Motor Voltage
415V
Dimensions (LxWxH)
2300 x 700 x 1250mm
Weight (nett)
490kg
Features
  • SAE 1050 (CK45) certificated forged steel rolls with high tensile strength
  • Precision ground rolls
  • Cast Iron end frames
  • Brake motor standard for precision bending
  • Mobile control panel with emergency stop
  • Safety trip wire (RM & IRM) or kick bar (IR) standard
  • Conical bending device
  • Single handle adjustment of bottom rolls
  • Made in Turkey
  • Models available to 2550 x 140
  • Mild steel capacity is rated on hot rolled material with 250MPA
