THIS PRODUCT IS NO LONGER AVAILABLE. Click to see recommended item > S804 (PR-136A)
Motorised Plate Curving Rolls
  • 1 of 3
  • 2 of 3

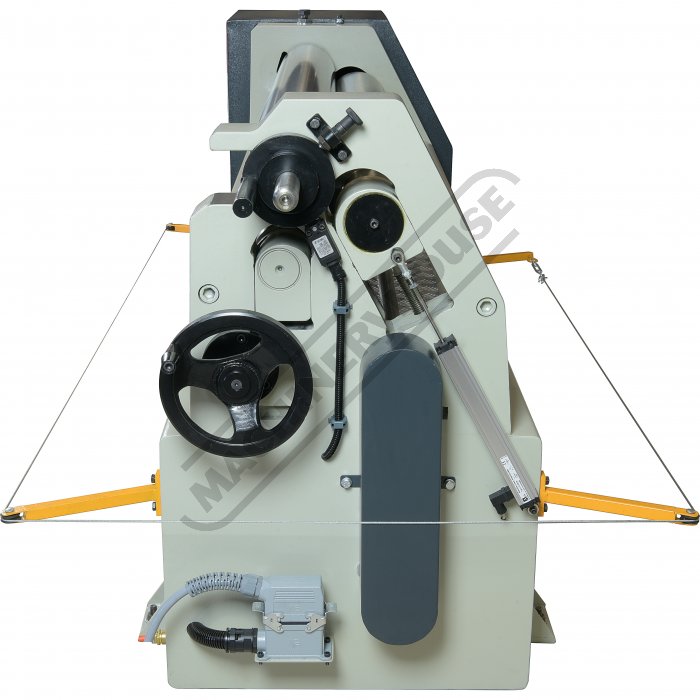

    Standard Manual Drop End
  • 3 of 3
    Shown with Optional Ball Transfer Tables
Order Code: S785
IRM1270x140 - Motorised Plate Curving Rolls (415V)
1270 x 6mm Mild Steel Capacity

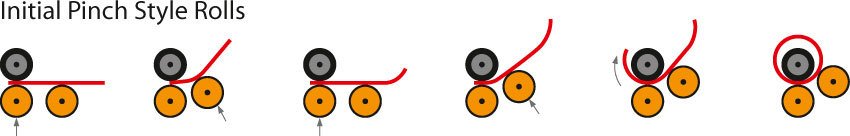

Initial Pinch Design
Curving System Type
Initial Pinch
Curving Material Length
Curving Plate Thickness - Mild Steel
Minimum Rolling Diameter
Roll Diameter
Motor Power
2.2kW / 3hp
Motor Voltage
Dimensions (LxWxH)
2470 x 750 x 1000mm
Weight (nett)
  • SAE 1050 (CK45) certificated forged steel rolls with high tensile strength
  • Precision hardened rolls suitable for stainless steel
  • Motorised rear bending roller with digital readout display for positioning
  • Heavy cast iron construction at each end frames providing stability and rigidity
  • Single handle adjustment of bottom rolls to suit material thickness
  • Safety trip wire (RM & IRM) or kick bar (IR) standard
  • Brake motor standard for precision bending
  • Mobile control panel with emergency stop
  • Conical bending device
  • Made in Turkey
  • Mild steel capacity is rated on hot rolled material with 250MPA
  • Standard manual drop end
