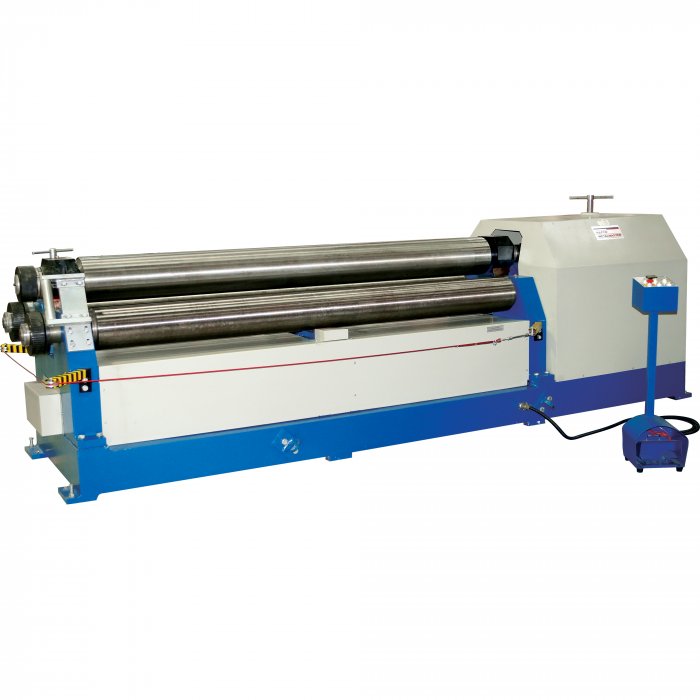

HAFCO METALMASTERPR-2512
Motorised Plate Curving Rolls
  • 1 of 10
    S769
  • 2 of 10
    Rear View
  • 3 of 10
    Left Rear View
  • 4 of 10
    Section Roll End with Flat Bar Dies
  • 5 of 10
    Support Rollers
  • 6 of 10
    Control Panel
  • 7 of 10
    Safety Wire Interlock System
  • 8 of 10
    Includes 50mm Pipe Dies
  • 9 of 10
    Foot Control
  • 10 of 10
    Shown with Optional Ball Transfer Tables
Order Code: S769
PR-2512 - Motorised Plate Curving Rolls (415V)
2550 x 12mm Mild Steel Capacity
Includes Section Rolls
HAFCO METALMASTER
ORDER CODE
S769
Model
PR-2512
Curving System Type
Pyramid
Curving Material Length
2550mm
Curving Plate Thickness - Mild Steel
12mm
Minimum Rolling Diameter
580mm
Roll Diameter
230mm
Motor Power
7.5kW / 10hp
Motor Voltage
415V
Dimensions (LxWxH)
4300 x 1300 x 1600mm
Weight (nett)
5200kg
Features
  • Two rolls powered by gearbox and gear system
  • Swing out end enables complete cylinder to be removed
  • Heavy duty steel welded main frames
  • Mobile control panel with foot pedals
  • Precision ground rolls with wiring grooves
  • Safety wire interlock system with emergency shut-off
  • Motorised up & down top roll for curving adjustment
  • Includes Section roll system with flat bar and pipe dies
  • Mild steel capacity is rated on hot rolled material with 250MPA
Includes
  • 50mm Pipe bending rolls
  • 60 x 6mm Flat bar or 60 x 60 x 6mm Angle rolls
