THIS PRODUCT IS NO LONGER AVAILABLE. Click to see recommended item > S763A (PR-132H)
HAFCO METALMASTERPR-132H
Motorised Sheet Metal Curving Rolls
  • 1 of 18
    S763
  • 2 of 18
    Right View
  • 3 of 18
    Left View
  • 4 of 18
    Rear View
  • 5 of 18
    Safety Trip Wire System
  • 6 of 18
    Safety Trip Wire Micro Switch
  • 7 of 18
    Material Thickness & Curving Roller Adjustment
  • 8 of 18
    Wire Groove Rolls
  • 9 of 18
    Left View of Rolls
  • 10 of 18
    Right View of Rolls
  • 11 of 18
    Swing Out Top Roller
  • 12 of 18
    Rear View Of Curving Roll Adjustment
  • 13 of 18
    Curving Roller Height Adjustment
  • 14 of 18
    Curving Roller Height Adjustment Right Side
  • 15 of 18
    Control Panel
  • 16 of 18
    Main Drive Motor
  • 17 of 18
    Foot Control
  • 18 of 18
    Stop Switch
Order Code: S763
PR-132H - Motorised Sheet Metal Curving Rolls (415V)
1300 x 1.6mm Mild Steel Capacity

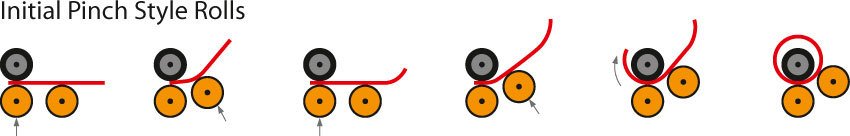

Initial Pinch Design
HAFCO METALMASTER
ORDER CODE
S763
Model
PR-132H
Curving System Type
Initial Pinch
Curving Material Length
1300mm
Curving Plate Thickness - Mild Steel
1.6mm
Minimum Rolling Diameter
100mm
Roll Diameter
75mm
Motor Power
0.75kW / 1hp
Motor Voltage
415V
Dimensions (LxWxH)
1920 x 610 x 1340mm
Weight (nett)
400kg
Features
  • Initial pinch rolls with pre-bending
  • Swing out end enables complete cylinder to be removed
  • Safety wire interlock system with emergency shut-off
  • Two rolls powered by chain & gear drive system
  • Precision ground rolls with wiring grooves
  • Micro adjustment for material thickness
  • Heavy duty steel welded main frames
  • Mobile foot pedal control
  • Mild steel capacity is rated on hot rolled material with 250MPA

Product Brochure

Spare Parts Ordering
To assist you in ordering your spare part quicker than ever before, we have listed our most common spare parts to suit our Hafco Machinery for purchase online. Just choose between the 2 options outlined below, to find exactly what you are looking for. If you need further assistance please contact us.
Option 1
Browse through the "Common Spare Parts" tab below . Once you have identified your part, you can add it to your cart by clicking on the "+ ADD TO CART" button. If you wish to add multiples of this part you can either click the "+ ADD TO CART" button as many times as you like or click on the "VIEW CART" button and change the order quantity, prior to completing your order.
Option 2
If your part is NOT listed in the "Common Spare Parts" tab below , click the "MORE INFO" button to complete the "Spare Parts Enquiry Form".
This will provide you with the option to email your spare part enquiry direct to our Spare Parts and Service Department, or if you wish, you can download a printable version of this enquiry form which will include a copy of the Parts List to suit this machine (if available). Further instructions for the return email address or fax number of this printable form is provided on the document for your convenience.
NOTE: Please remember to clearly identify your part on the included parts diagram if necessary so that we can respond as quickly as possible with a price and availability for the part(s) you require.
