Motorised Plate Curving Rolls - PR-136
1300 x 6.5mm Mild Steel Capacity

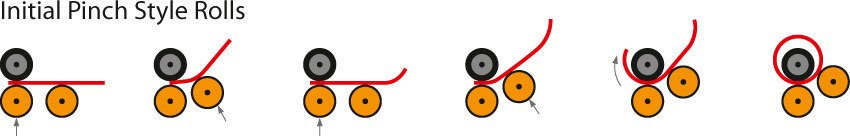

Initial Pinch Design
S762
1 of 13
Right View
2 of 13
Rear View
3 of 13
Side View
4 of 13
Roll Adjustment Handles
5 of 13
Curving Roller Height Adjustment
6 of 13
Swing Out Top Roller Handle
7 of 13
Swing Out Top Roller
8 of 13
Conical Bending Guide Roller
9 of 13
Wire Groove Rolls
10 of 13
Safety Wire Interlock System
11 of 13
Switches
12 of 13
Foot Control
13 of 13
Discontinued
Order Code: S762
415V / (NO PLUG)
1 Year Warranty
1 Year Warranty
Description
Motorised Plate Curving Rolls - PR-136
1300 x 6.5mm Mild Steel Capacity
Initial Pinch Design
Features
- Initial pinch rolls with pre-bending
- Two rolls powered by gearbox drive system
- Swing out top roller enables cylinder to be removed
- Safety wire interlock system with emergency shut-off
- Precision ground rolls with wiring grooves
- Includes a conical bending guide roller
- Mobile foot pedal control
- Mild steel capacity is rated on hot rolled material with 250MPA
Compare Product Range
Specifications
| ORDER CODE | S762 |
|---|---|
| MODEL | PR-136 |
| Curving System Type | Initial Pinch |
| (mm)Curving Material Length | 1300 |
| (mm)Curving Plate Thickness - Mild Steel | 6.5 |
| (mm)Minimum Rolling Diameter | 170 |
| (mm)Roll Diameter | 150 |
| (kW / hp)Motor Power | 3 / 4 |
| (V / amp)Voltage / Amperage | 415 |
| (mm)Dimensions (LxWxH) | 2300 x 800 x 1340 |
| (kg)Nett Weight | 1190 |
- Compare:
- Wishlist:
- ORDER CODE
- MODEL
- Curving System Type
- (mm)Curving Material Length
- (mm)Curving Plate Thickness - Mild Steel
- (mm)Minimum Rolling Diameter
- (mm)Roll Diameter
- (kW / hp)Motor Power
- (V / amp)Voltage / Amperage
- (mm)Dimensions (LxWxH)
- (mm)Floor Space (L x W x H)
- (kg)Nett Weight
- (ex-gst)Pricing
- (inc-gst)
- On Sale
-
Compare
-
Wishlist
- S763A
- PR-132H
- Initial Pinch
- 1300
- 1.6
- 112
- 75
- 0.75 / 1
- 240 / 10
- 1920 x 610 x 1340
- ~
- 400
- $2,990.00
- $3,289.00
- ADD TO CART
- On Sale
-
Compare
-
Wishlist
- S802
- PR-133A
- Initial Pinch
- 1300
- 2.5
- 135
- 90
- 1.1 / 1.5
- 415
- 1800 x 640 x 1000
- 1855 x 1030 x 1000
- 645
- $5,890.00
- $6,479.00
- ADD TO CART
- On Sale
-
Compare
-
Wishlist
- S803
- PR-134A
- Initial Pinch
- 1300
- 4.0
- 180
- 120
- 2.2 / 3
- 415
- 1810 x 640 x 1050
- 1855 x 1030 x 1050
- 855
- $6,990.00
- $7,689.00
- ADD TO CART
- On Sale - Back In Stock Soon
-
Compare
-
Wishlist
- S804
- PR-136A
- Initial Pinch
- 1300
- 6.5
- 225
- 150
- 2.2 / 3
- 415
- 2300 x 800 x 1340
- 1995 x 1050 x 1215
- 1320
- $8,990.00
- $9,889.00
- ADD TO CART
- On Sale
-
Compare
-
Wishlist
- S785
- IRM1270x140
- Initial Pinch
- 1270
- 5
- 210
- 140
- 2.2 / 3
- 415
- 2470 x 750 x 1000
- ~
- 1350
- $18,000.00
- $19,800.00
- ADD TO CART
- On Sale
-
Compare
-
Wishlist
- S805
- PR-204A
- Initial Pinch
- 2000
- 4
- 225
- 150
- 2.2 / 3
- 415
- 2530 x 740 x 1200
- 2695 x 1050 x 1215
- 1620
- $11,450.00
- $12,595.00
- ADD TO CART
- Special Order
-
Compare
-
Wishlist
- S795D
- IRM2550x140
- Initial Pinch
- 2550
- 2.5
- 210
- 140
- 2.2 / 3
- 415
- 3700 x 750 x 1000
- ~
- 1850
- $29,950.00
- $32,945.00
- ADD TO CART
- On Sale
-
Compare
-
Wishlist
- S769
- PR-2512
- Pyramid
- 2550
- 12
- 600
- 240
- 7.5 / 10
- 415
- 4300 x 1300 x 1600
- ~
- 5200
- $25,950.00
- $28,545.00
- ADD TO CART
- Special Order
-
Compare
-
Wishlist
- S7965
- MRM-S 1550x130
- Initial Pinch
- 1550
- 6
- 195
- 130
- 2.2 / 3
- 415
- 3250 x 650 x 1020
- ~
- 1400
- $27,500.00
- $30,250.00
- ADD TO CART
- On Sale
-
Compare
-
Wishlist
- S7968
- MRM-S 2550x150
- Initial Pinch
- 2550
- 4
- 225
- 150
- 2.2 / 3
- 415
- 4250 x 650 x 1020
- ~
- 2150
- $33,950.00
- $37,345.00
- ADD TO CART
- Special Order
-
Compare
-
Wishlist
- S797
- MRM-S 2550x190
- Initial Pinch
- 2550
- 6
- 285
- 190
- 4 / 5
- 415
- 4700 x 950 x 1300
- ~
- 3400
- $44,950.00
- $49,445.00
- ADD TO CART
- On Sale - Back In Stock Soon
-
Compare
-
Wishlist
- S770
- PR-3108
- Pyramid
- 3100
- 8
- 400
- 210
- 5.5 / 7.37
- 415
- 4700 x 1100 x 1450
- ~
- 4500
- $24,950.00
- $27,445.00
- ADD TO CART
