HAFCO METALMASTERPR-134
Motorised Plate Curving Rolls
  • 1 of 16
    S7615
  • 2 of 16
    Right View
  • 3 of 16
    Left View
  • 4 of 16
    Rear View
  • 5 of 16
    Safety Trip Wire System
  • 6 of 16
    Swing Out Top Roller
  • 7 of 16
    Conical Bending Guide Roller
  • 8 of 16
    Roll Adjustment Handles
  • 9 of 16
    Curving Roller Height Adjustment
  • 10 of 16
    Rear Hand Wheel with Adjustable Disengage Coupling
  • 11 of 16
    Curving Roller Height Adjustment Right Side
  • 12 of 16
    Wire Groove Rolls
  • 13 of 16
    Bottom Front Roll Height Adjustment Handle
  • 14 of 16
    Control Panel
  • 15 of 16
    Foot Control
  • 16 of 16
    Emergency Stop Switch
Order Code: S7615
PR-134 - Motorised Plate Curving Rolls (415V)
1300 x 4.5mm Mild Steel Capacity

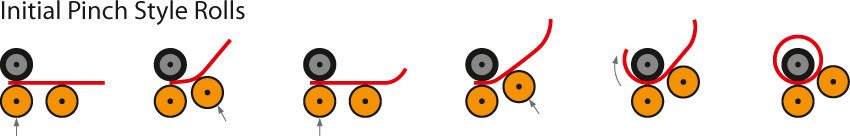

Initial Pinch Design
Only Available From:
Additional Freight Charges May Apply
HAFCO METALMASTER
On Special - While Stocks Last
ex GST
inc GST
$5,950.00
$6,545.00
$5,450.00
$5,995.00

ORDER CODE
S7615
Model
PR-134
Curving System Type
Initial Pinch
Curving Material Length
1300mm
Curving Plate Thickness - Mild Steel
4.5mm
Minimum Rolling Diameter
140mm
Roll Diameter
120mm
Motor Power
2.2kW / 3hp
Motor Voltage
415V
Dimensions (LxWxH)
1810 x 640 x 1050mm
Weight (nett)
660kg
Features
  • Initial pinch rolls with pre-bending
  • Two rolls powered by gearbox drive system
  • Swing out top roller enables cylinder to be removed
  • Safety wire interlock system with emergency shut-off
  • Precision ground rolls with wiring grooves
  • Includes a conical bending guide roller
  • Mobile foot pedal control
  • Mild steel capacity is rated on hot rolled material with 250MPA

Product Brochure

  • PR-134 (S7615)
ORDER CODE
Model
Curving System Type
Curving Material Length
Curving Plate Thickness - Mild Steel
Minimum Rolling Diameter
Roll Diameter
Motor Power
Motor Voltage
Dimensions (LxWxH)
Weight (nett)
Price (ex GST)
Price (inc GST)
