THIS PRODUCT IS NO LONGER AVAILABLE. Click to see similar products > Lockseamers
OZ-16
Lockseamer
  • 1 of 1
    S724
Order Code: S724
OZ-16 - Lockseamer (415V)
0.9 - 1.6mm Mild Steel Capacity
ORDER CODE
S724
MODEL
OZ-16
Capacity - Mild Steel (mm)
0.9 - 1.6
Stations (No.)
7
Work Height Pittsburgh (mm)
1000
Motor Power (kW / hp)
2.2 / 3
Voltage / Amperage (V / amp)
415
Machine Dimensions (L x W x H) (mm)
1400 x 610 x 1060
Nett Weight (kg)
250
Features
  • GENERAL FEATURES OF OZ-FORM-16

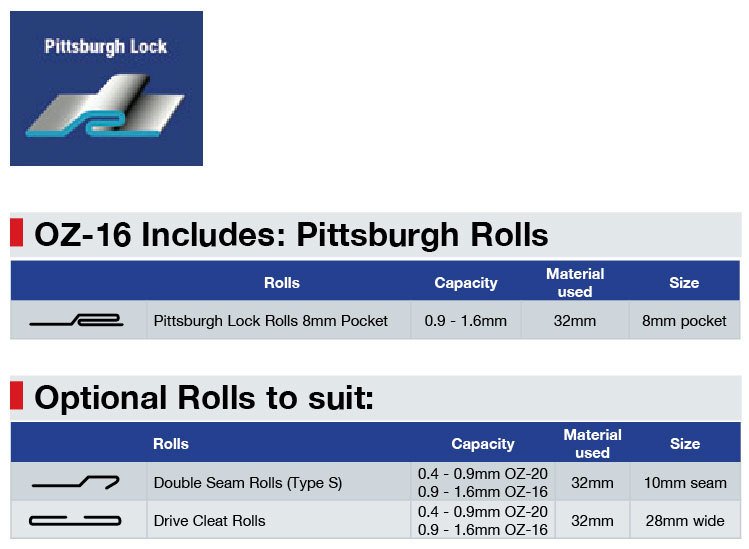

  • Pittsburgh rolls are supplied as standard
  • Extended shafts for optional rolls such as Double Seam and Right Angle Flange
  • Positive lubrication to all moving parts through grease nipples and oil holes
  • Reinforced steel plate stand provides rigidity which eliminates drumming
  • Hardened material guides
  • Forming speed 5m/min maximum
  • Made in Australia
  • Mild steel capacity is rated on hot rolled material with 250MPA

Product Brochure

Spare Parts Ordering
To assist you in ordering your spare part quicker than ever before, we have listed our most common spare parts to suit our Hafco Machinery for purchase online. Just choose between the 2 options outlined below, to find exactly what you are looking for. If you need further assistance please contact us.
Option 1
Browse through the "Common Spare Parts" tab below . Once you have identified your part, you can add it to your cart by clicking on the "+ ADD TO CART" button. If you wish to add multiples of this part you can either click the "+ ADD TO CART" button as many times as you like or click on the "VIEW CART" button and change the order quantity, prior to completing your order.
Option 2
If your part is NOT listed in the "Common Spare Parts" tab below , click the "MORE INFO" button to complete the "Spare Parts Enquiry Form".
This will provide you with the option to email your spare part enquiry direct to our Spare Parts and Service Department, or if you wish, you can download a printable version of this enquiry form which will include a copy of the Parts List to suit this machine (if available). Further instructions for the return email address or fax number of this printable form is provided on the document for your convenience.
NOTE: Please remember to clearly identify your part on the included parts diagram if necessary so that we can respond as quickly as possible with a price and availability for the part(s) you require.
