HAFCORR-10
Manual Section & Pipe Rolling Machine
  • 1 of 3
    S681
  • 2 of 3

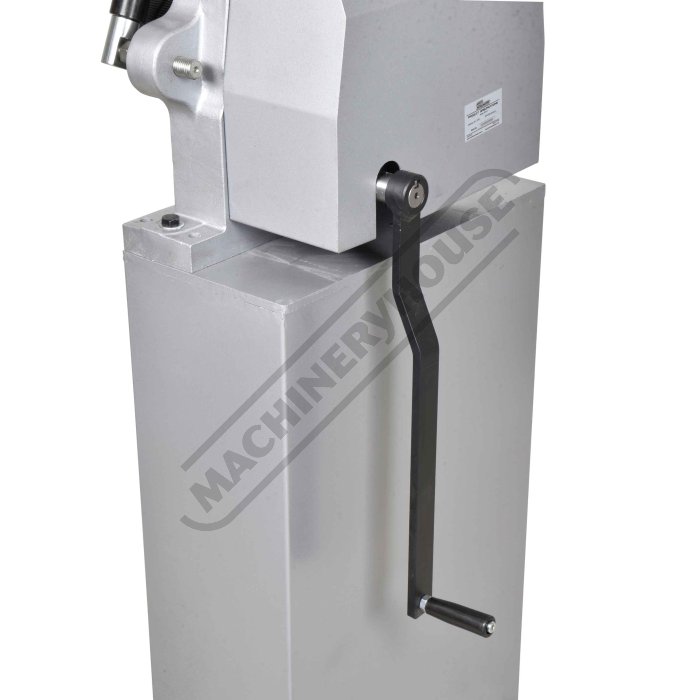

    Handle
  • 3 of 3

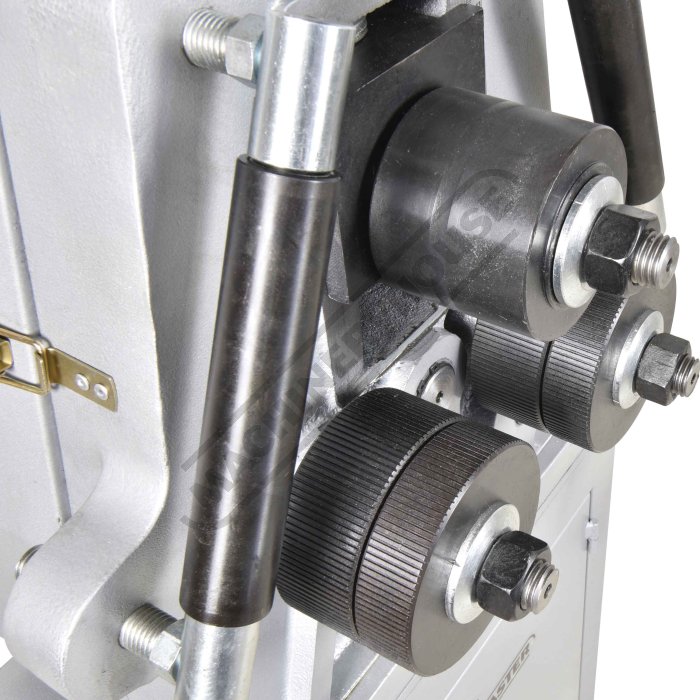

    Rolls
Order Code: S681

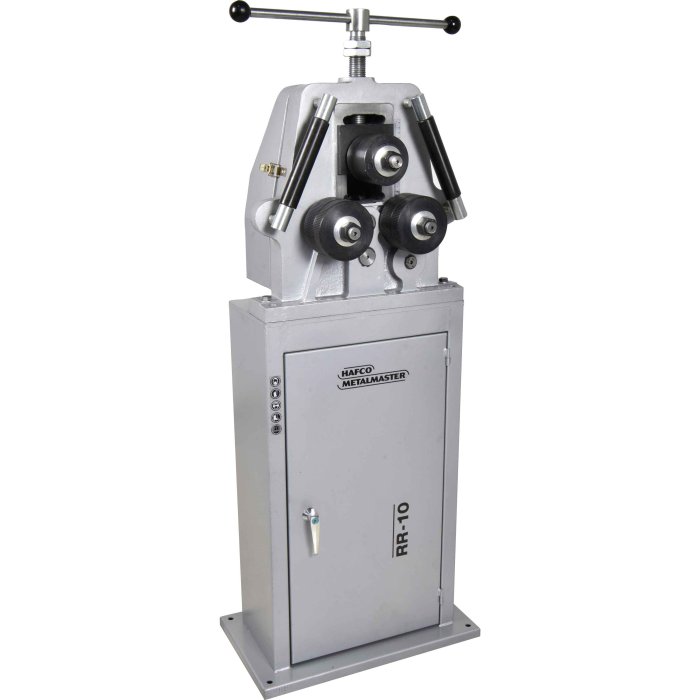

RR-10 - Manual Section & Pipe Rolling Machine
50 x 10mm Flat Bar Capacity
HAFCO
ORDER CODE
S681
MODEL
RR-10
Top Roll Diameter (Ø) (mm)
98
Flat Bar Edge Capacity - MS (size / Ø) (mm)
30 x 10 / 500
Flat Bar Capacity - MS (size / Ø) (mm)
50 x 10 / 400
Square Bar Solid Capacity - MS (size / Ø) (mm)
20 x 20 / 500
Dimensions (L x W x H) (mm)
500 x 480 x 680
Nett Weight (kg)
185
Note: Requires Additional Tooling (No / Yes*)
No
Features

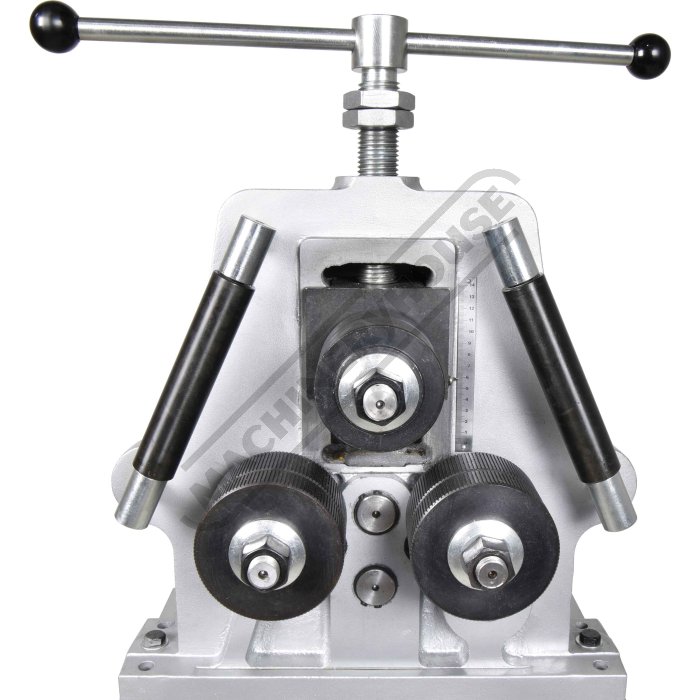

  • Hardened 98mm top & 118mm bottom rolls
  • 30mm heat treated drive shaft

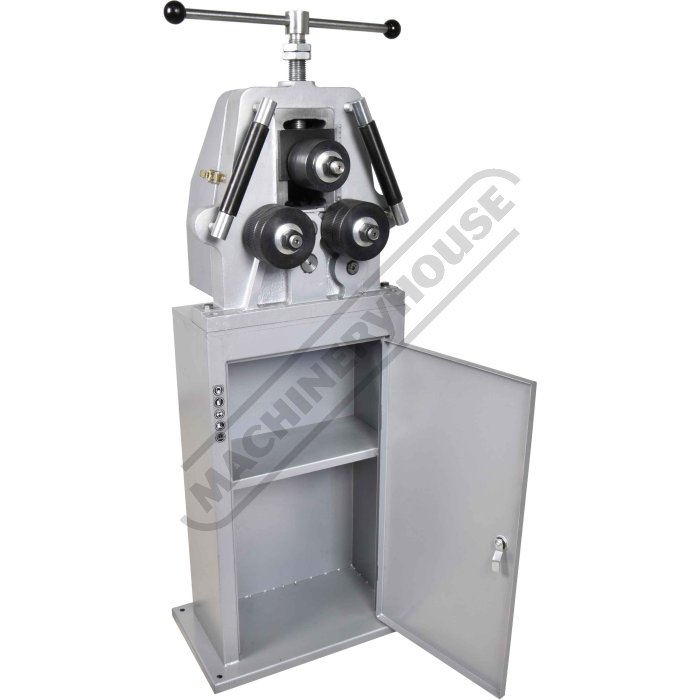

  • Cast iron housing on heavy duty stand
  • Gear driven rolls
  • Heavy duty steel fabricated frame
  • Bottom rolls are knurled for additional grip on material

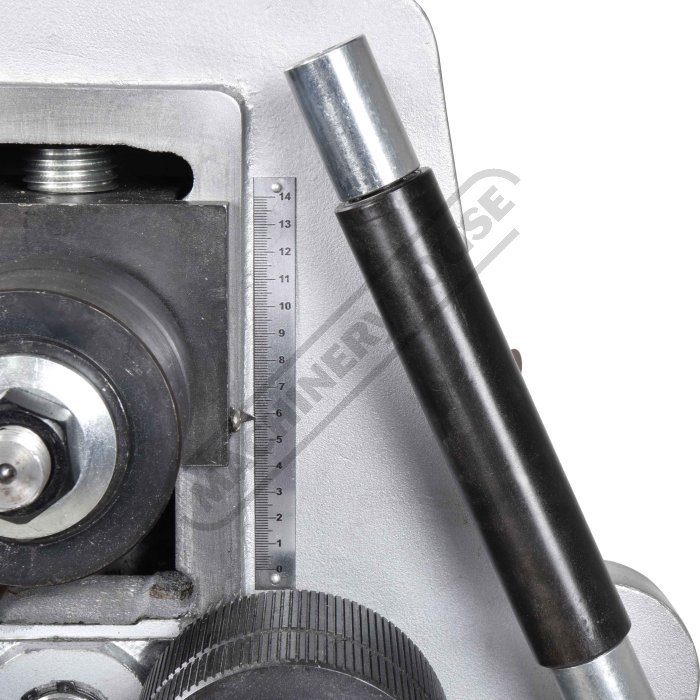

  • Manual screw adjustment of top roller
  • Adjustable side support guide rolls
  • Standard flat & angle rolls are included
  • One piece guiding mono block mounted on cross head
  • *Additional dies are required to roll round bar, round pipe/tube & square tube
Product Brochure

Instruction Manual
1.86 MB
