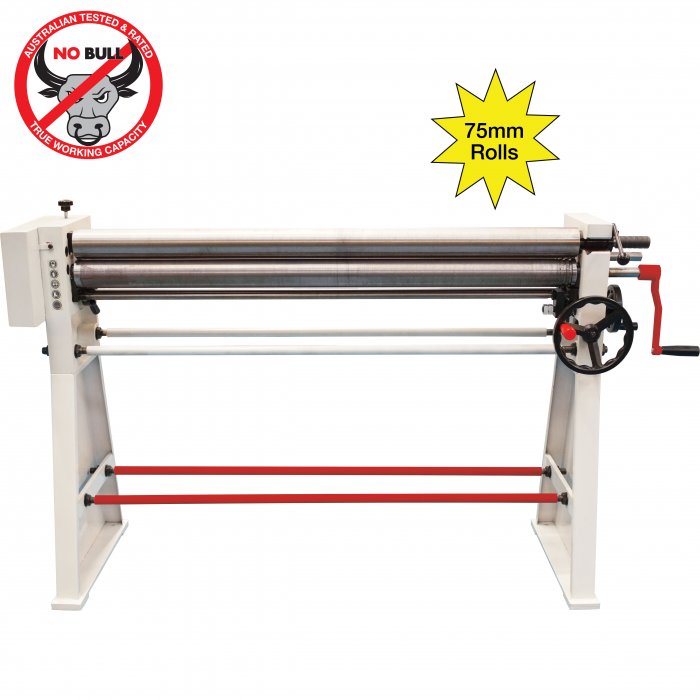

METALMASTERSRG-50E
Manual Sheet Metal Curving Rolls
  • 1 of 21
    S276
  • 2 of 21
    Right View
  • 3 of 21
    Left View
  • 4 of 21
    Rear View
  • 5 of 21
    Rear View Right Side
  • 6 of 21
    Top View
  • 7 of 21
    Ground Rolls with Wiring Grooves
  • 8 of 21
    Controls
  • 9 of 21
    Low Speed 3.5 to 1 Drive Handle Position
  • 10 of 21
    Fast Speed 1 to 1 Drive Handle Position
  • 11 of 21
    Rear Curving Roller Adjustment Dial
  • 12 of 21
    Swing Out Top Roller Lock
  • 13 of 21
    Quick Action Swivel Top Roller
  • 14 of 21
    Side View of Controls
  • 15 of 21
    Material Thickness Dial
  • 16 of 21
    Controls Rear View
  • 17 of 21
    Rear View of Curving Rolls
  • 18 of 21
    Rear Curving Roller Cam Mechanism
  • 19 of 21
    Slit in Top Roller
  • 20 of 21
    Rear Curving Roller Cam Handle
  • 21 of 21
    Low Speed 3.5 to 1 Gear Disengagement
Order Code: S276
SRG-50E - Manual Sheet Metal Curving Rolls
1250 x 1.6mm Mild Steel Capacity
2 Speed Roller Drive System
METALMASTER
ORDER CODE
S276
Model
SRG-50E
Useful Length
1250mm
Capacity - Mild Steel
1.6mm
Minimum Rolling Diameter
130mm
Roll Diameter
75mm
Includes Stand
Weight (nett)
260kg
Description
This SRG-50E sheet metal curving rolls is modelled from European designs and includes superior features like a single hand wheel to adjust both sides of the roller simultaneously to clamp different material thickness via a wedge type system, as well as a single hand wheel for adjusting the rear curving roll via a worm gear and lever cam action that simply makes curving sheet metal very easy.

This machine also has a 2 speed roller drive system 3.5:1 ratio best used for full length material 1250 x 1.6mm to reduce the physical manual effort required to form your curves and a 1:1 ratio used only for thinner material to increase production.
Features
  • Single hand wheel adjustment via European design wedge system for material thickness
  • Single hand wheel adjustment for rear curving roller with cam action worm gear
  • 2 speed roller drive system, 3.5:1 & 1:1 ratio
  • Cast-iron construction
  • Ground rolls with wiring grooves
  • Quick action swivel top roller
  • Includes heavy duty stand
  • Mild steel capacity is rated on hot rolled material with 250MPA

Product Brochure
