HAFCOSRG-50G
Manual Sheet Metal Curving Rolls
  • 1 of 11
    S272
  • 2 of 11

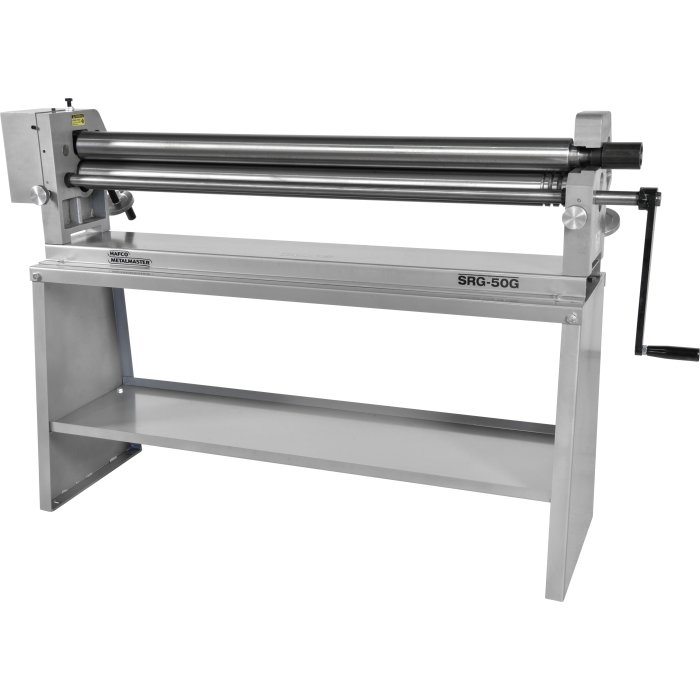

    Front View
  • 3 of 11
    Left View
  • 4 of 11
    Top Roll In Position
  • 5 of 11

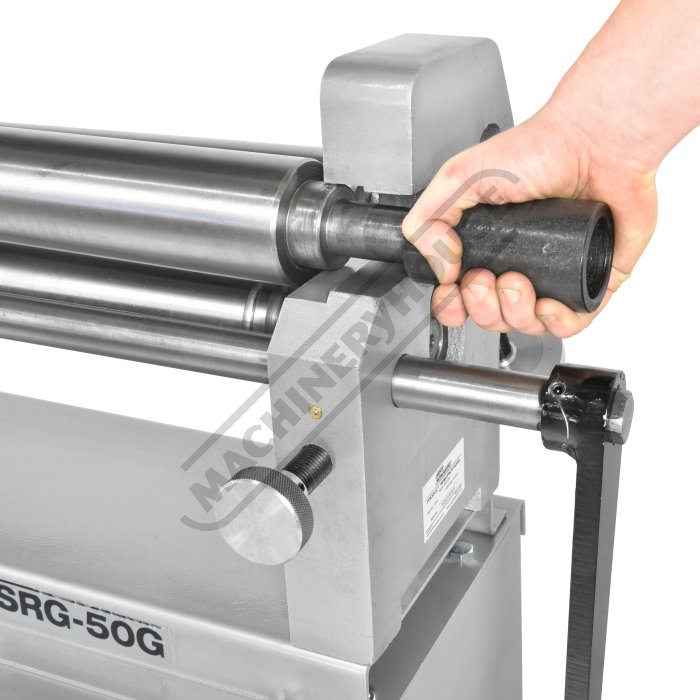

    Top Roll Removable
  • 6 of 11

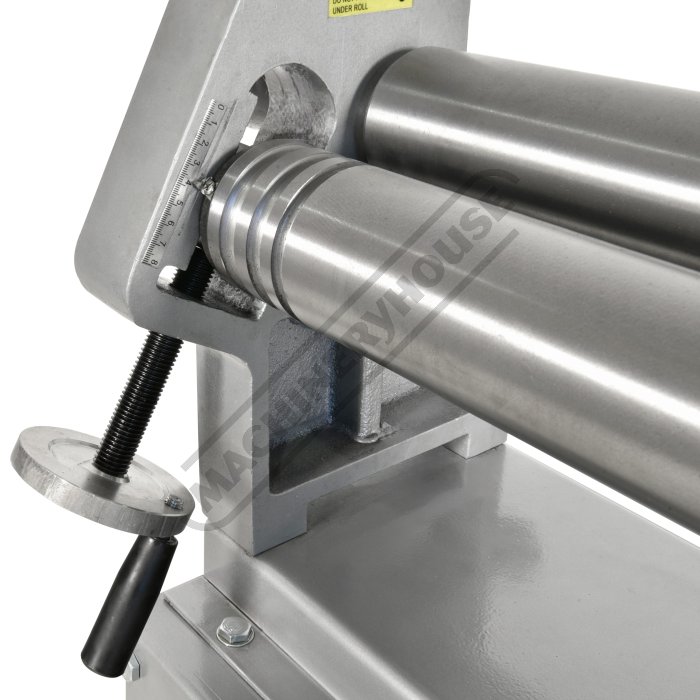

    Bottom Roll Adjustment Handle
  • 7 of 11
    Ground Rolls With Wiring Grooves
  • 8 of 11

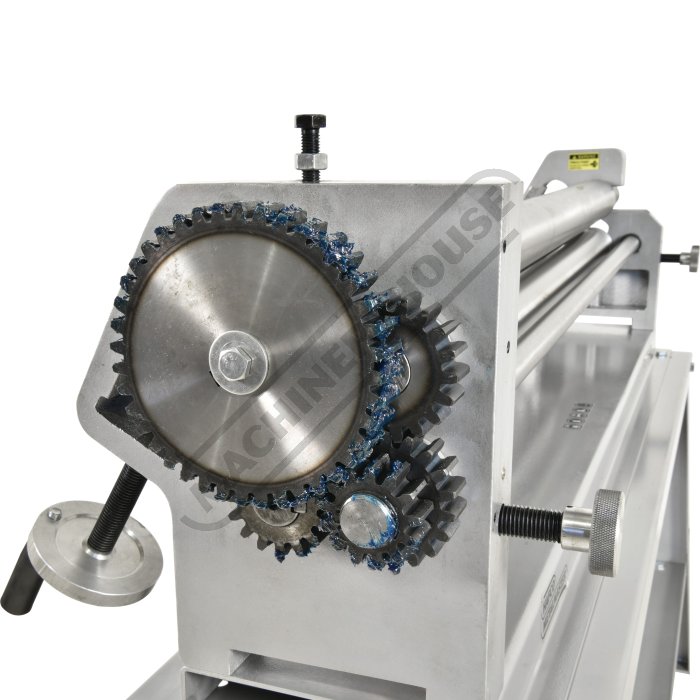

    Gears Side View
  • 9 of 11
    Gears Front View
  • 10 of 11
    Left Head View
  • 11 of 11
    Side View Head
Order Code: S272
SRG-50G - Manual Sheet Metal Curving Rolls
1270 x 1.5mm Mild Steel Capacity
3:1 Gear Drive Reduction Ratio
HAFCO
ORDER CODE
S272
Model
SRG-50G
Useful Length
1270mm
Capacity - Mild Steel
1.5mm
Minimum Rolling Diameter
110mm
Roll Diameter
75mm
Includes Stand
Weight (nett)
298kg
Description
This New SRG-50G now features a "Gearbox Reduction Drive System" that requires much less manual effort when rolling 1.5mm sheet metal than other rolls in the market place.

Another great feature is includes large aluminium hand dials for material thickness adjustment & curving roller adjustment for really easy & user friendly operation.
Features
  • "NO BULL CAPACITY" - Australian Tested & Rated To True Working Capacity
  • 3:1 gear drive reduction ratio curving rolls
  • Knurled aluminium hand dials for easy material thickness adjustment
  • Large aluminium hand dials for easy curving adjustment
  • Cast-iron construction
  • Ground rolls with wiring grooves
  • Quick action swivel top roller
  • Includes stand
  • Mild steel capacity is rated on hot rolled material with 250MPA
