HAFCOSRG-40
Manual Sheet Metal Curving Rolls
  • 1 of 5
    S270
  • 2 of 5

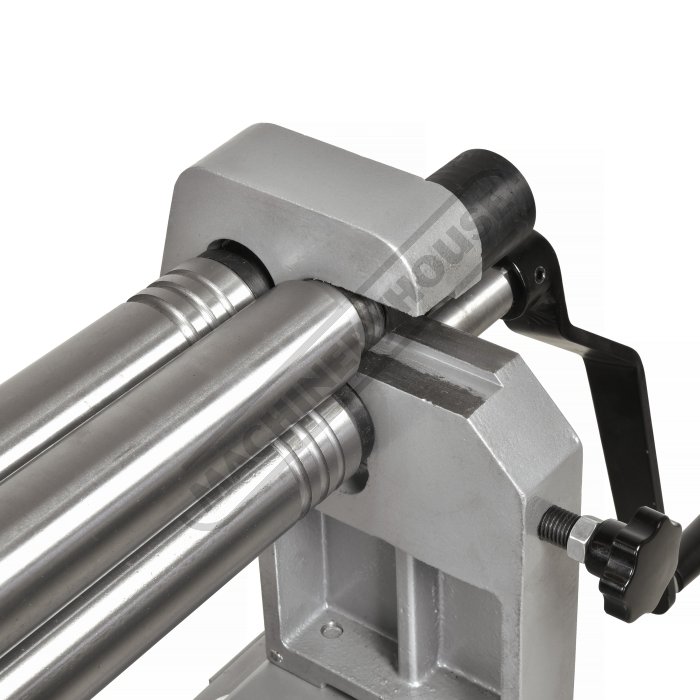

    Rolls with Wire Grooves
  • 3 of 5

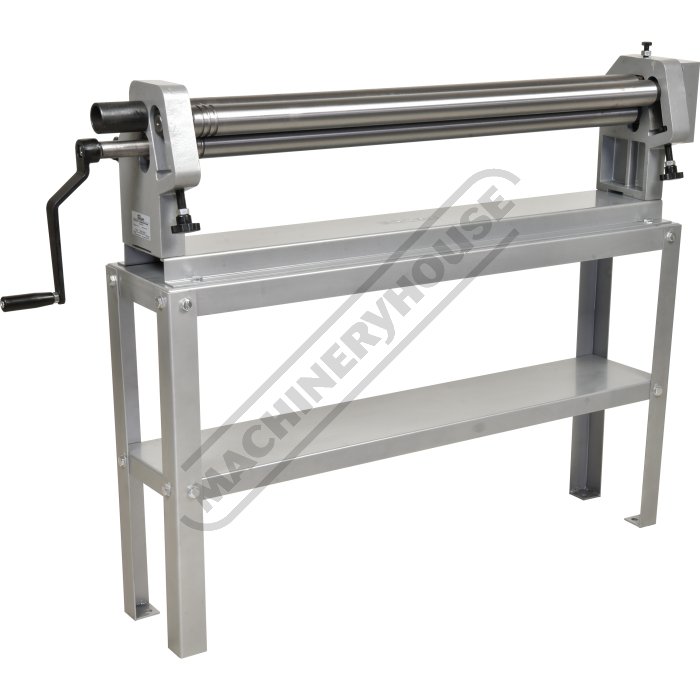

    Rear View
  • 4 of 5
    Quick Action Swivel Top Roller
  • 5 of 5

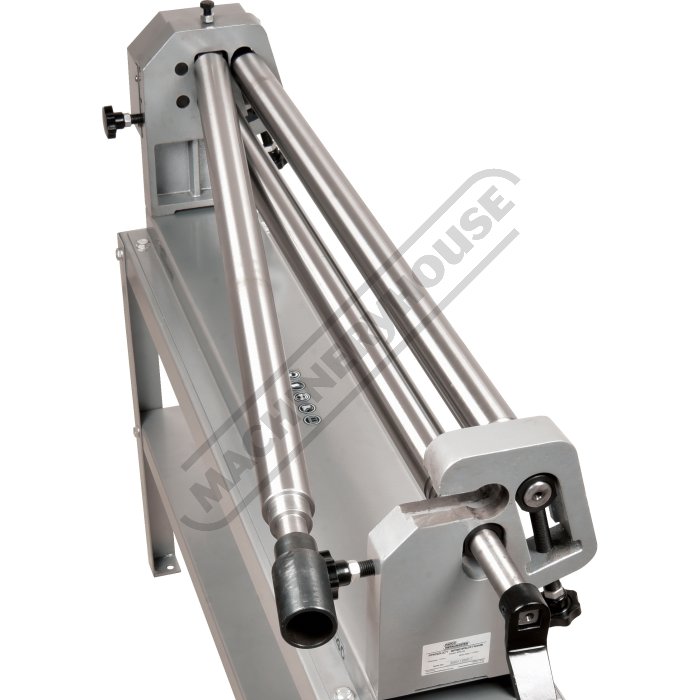

    Swing Out Top Roller
Order Code: S270

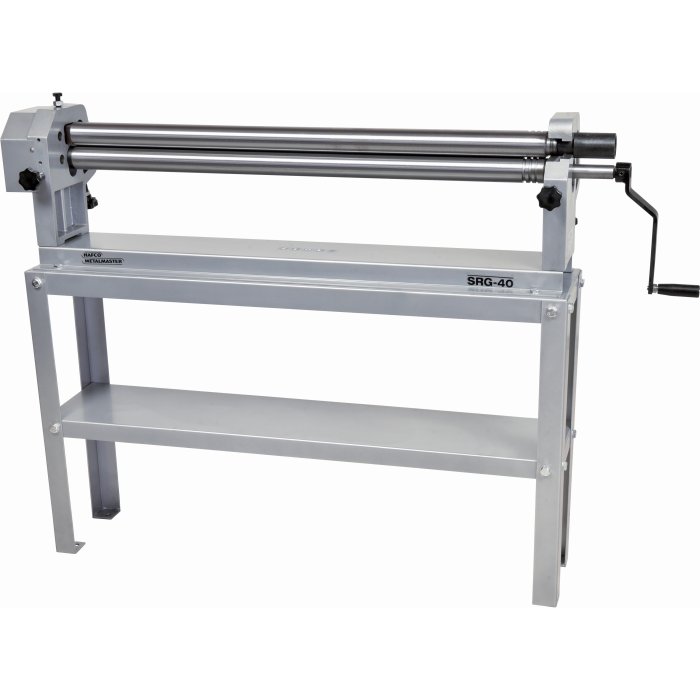

SRG-40 - Manual Sheet Metal Curving Rolls
1000 x 1.2mm Mild Steel Capacity
HAFCO
ORDER CODE
S270
Model
SRG-40
Useful Length
1000mm
Capacity - Mild Steel
1.2mm
Minimum Rolling Diameter
75mm
Roll Diameter
50mm
Includes Stand
Weight (nett)
130kg
Features
  • Cast-iron construction support ends
  • Ground rolls with wiring grooves
  • Quick action swivel top roller
  • Includes stand
  • Mild steel capacity is rated on hot rolled material with 250MPA
