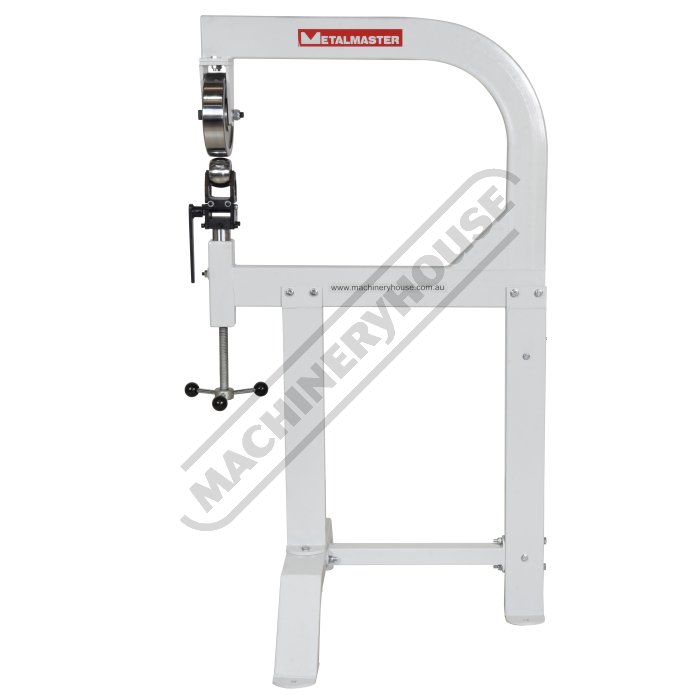

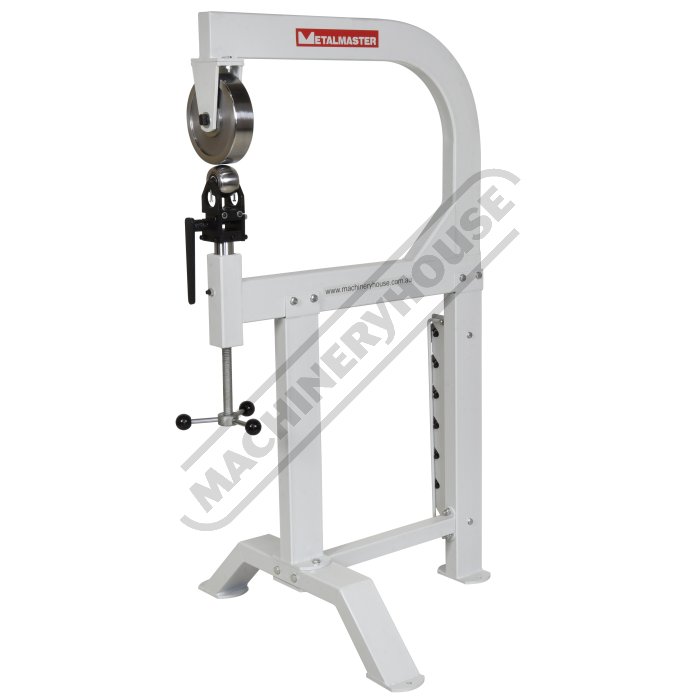

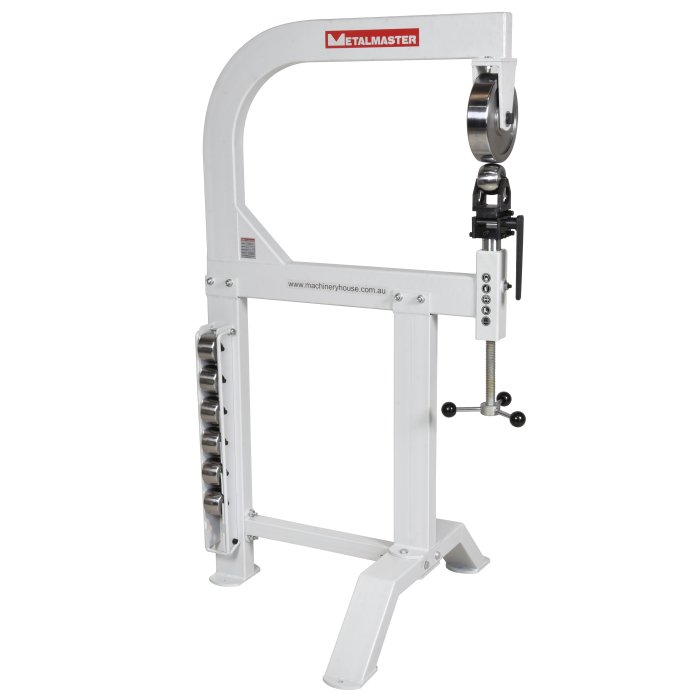

METALMASTEREWM-75
English Wheel
  • 1 of 7
    S225
  • 2 of 7

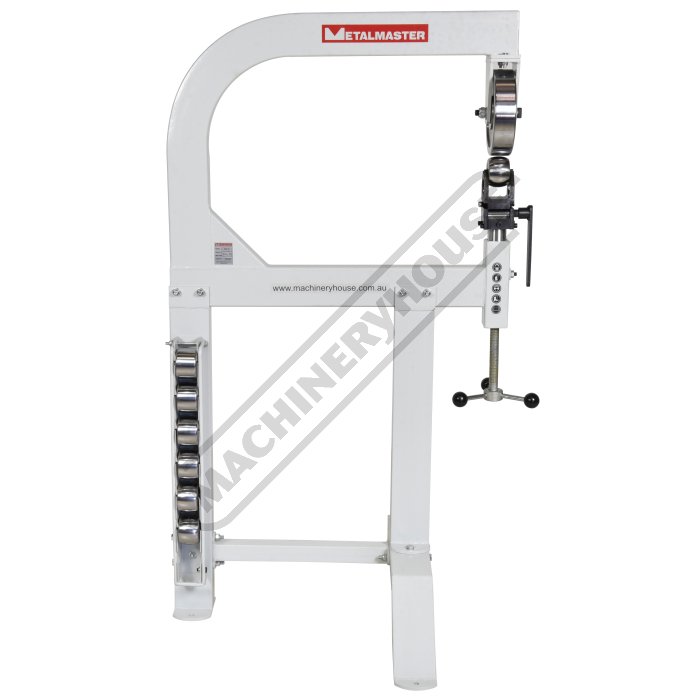

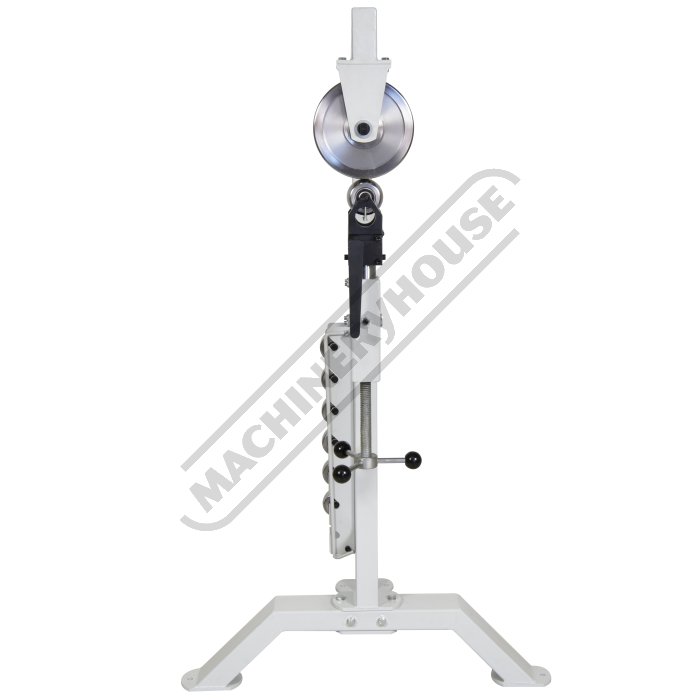

    End View
  • 3 of 7

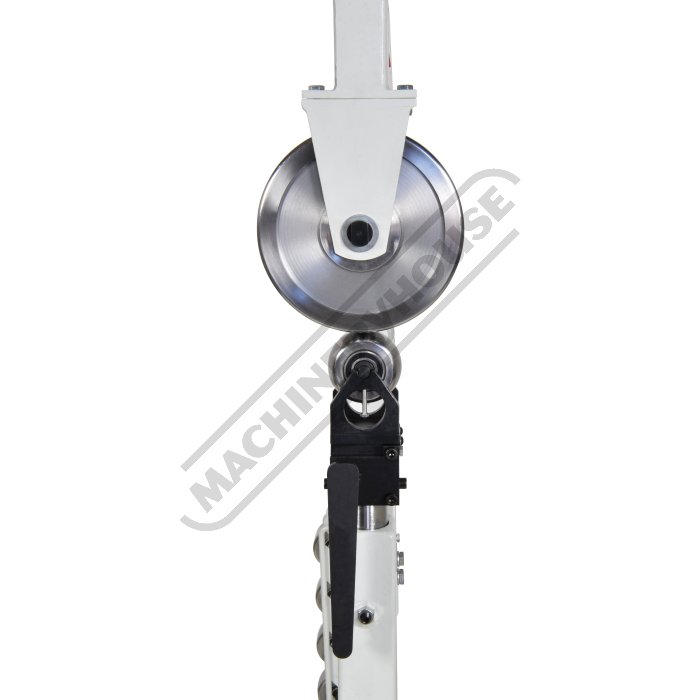

    Roller End View Close Up
  • 4 of 7

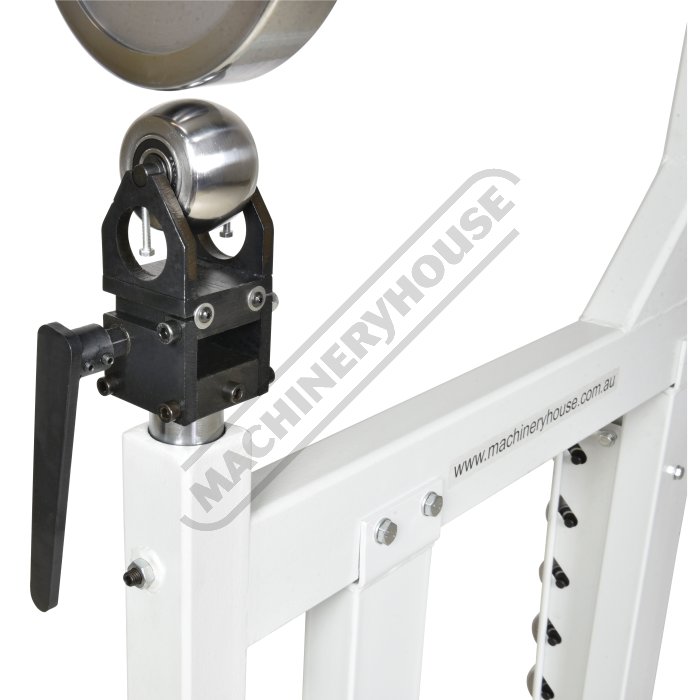

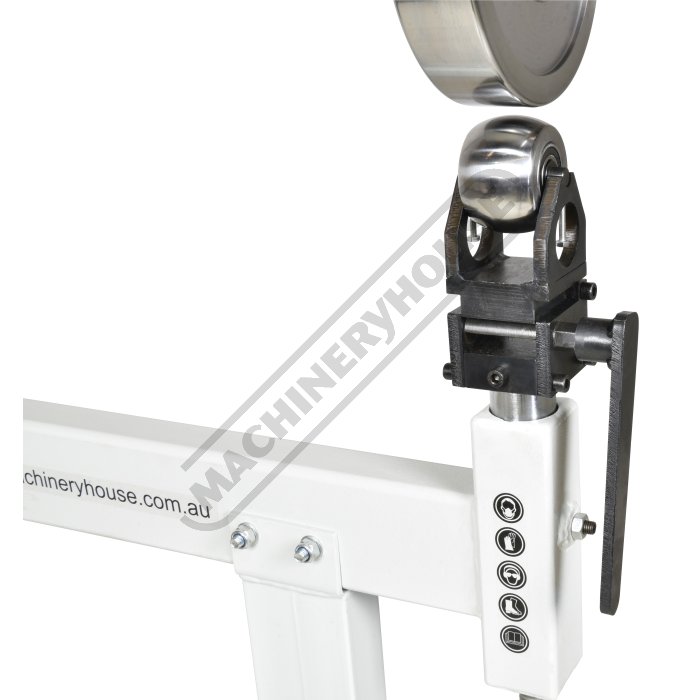

    Cam Action Lever Tension
  • 5 of 7

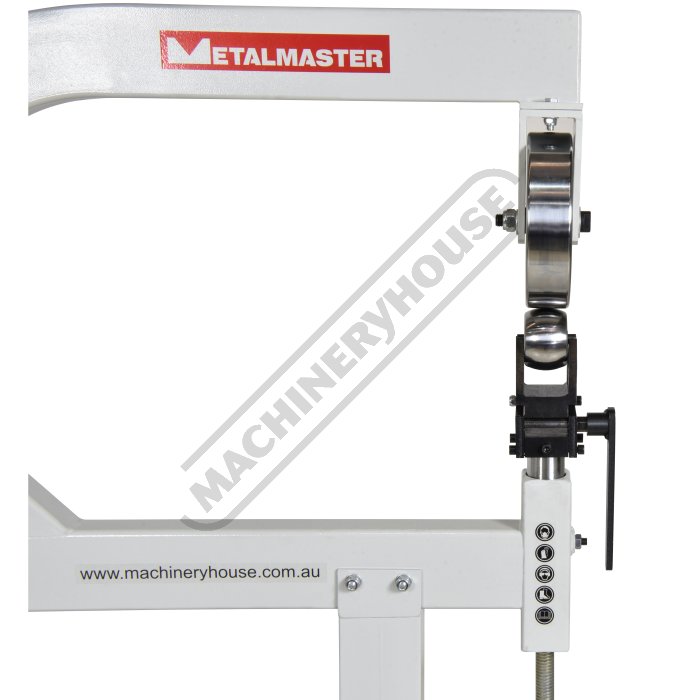

    Roller Front View Close Up
  • 6 of 7

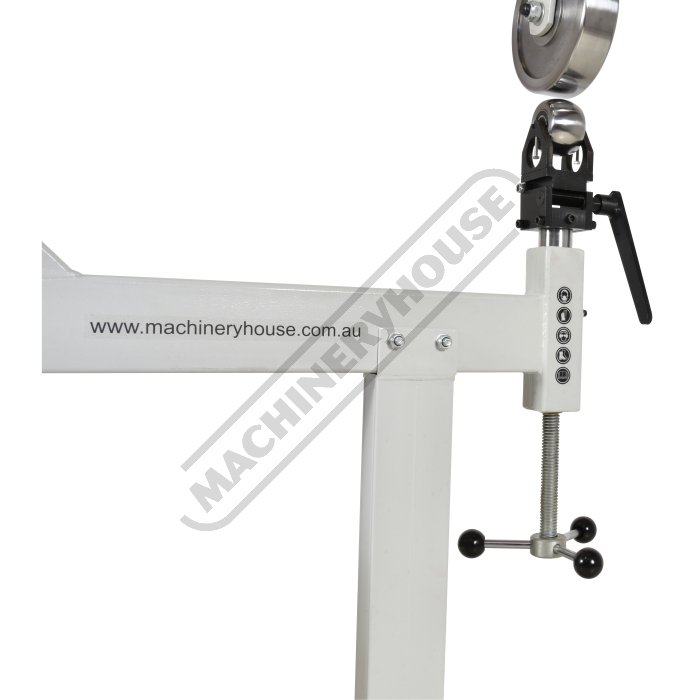

    Material Thickness Hand Screw Adjustment
  • 7 of 7

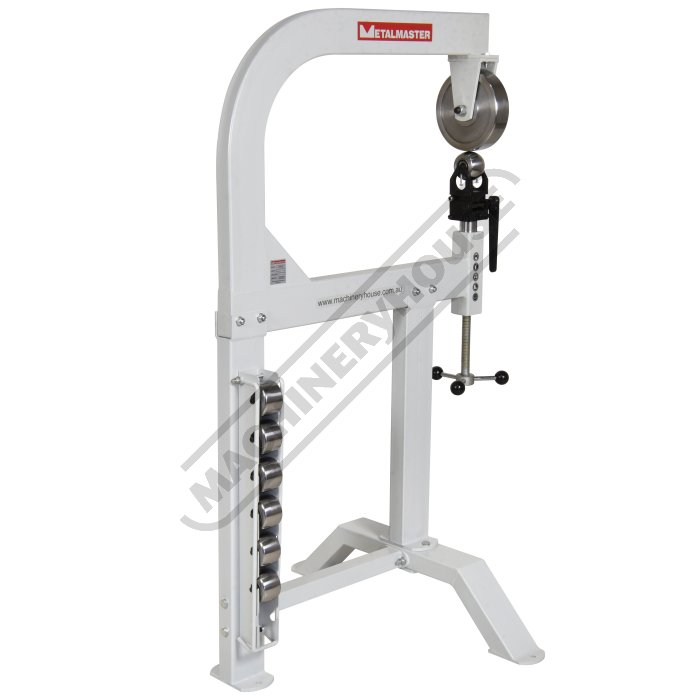

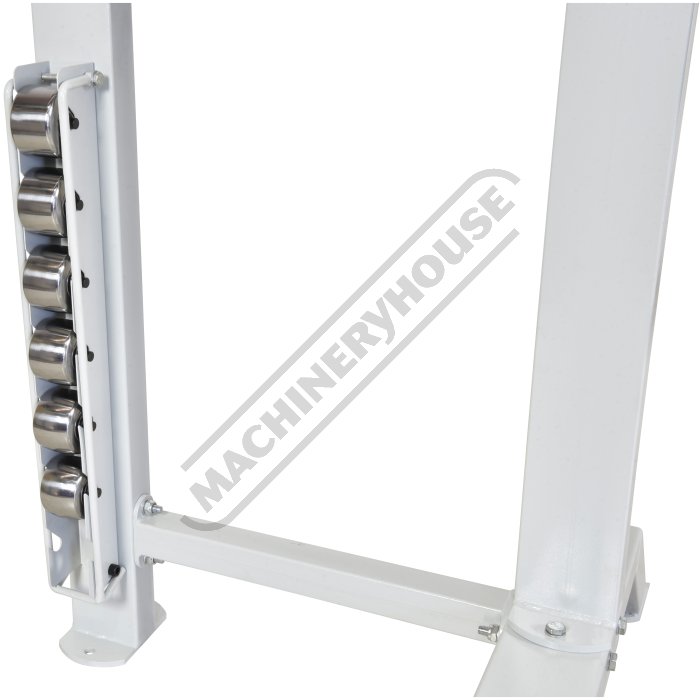

    Roller Storage Rack
Order Code: S225
EWM-75 - English Wheel
1.6mm Mild Steel Capacity
711mm Throat Depth
METALMASTER
ORDER CODE
S225
Model
EWM-75
Capacity - Mild Steel
1.6mm
Capacity - Copper
2.0mm
Throat Capacity
711mm
Top Anvil Size
Ø203 x 50mm
Radius Dies
50, 73, 101, 152,

203, 305mm
Working Height
1200mm
Weight
75kg
Description
The EWM-75 heavy duty English Wheel is designed to allow craftsmen to form smooth curves from flat sheets of metal. They are mainly used in car, motorcycle, aviation and racing car construction or restoration where sheet metal panels need to have compound curves formed.

The operator passes the sheet metal between the anvil wheel and the rolling wheel. This process stretches the material and causes it to become thinner. As the material stretches, it forms a convex surface over the anvil wheel.

This heavy duty steel fabricated machine has a large 711mm throat which allows a capacity of 1.6mm for mild steel and 2.0mm for Copper and Aluminium.

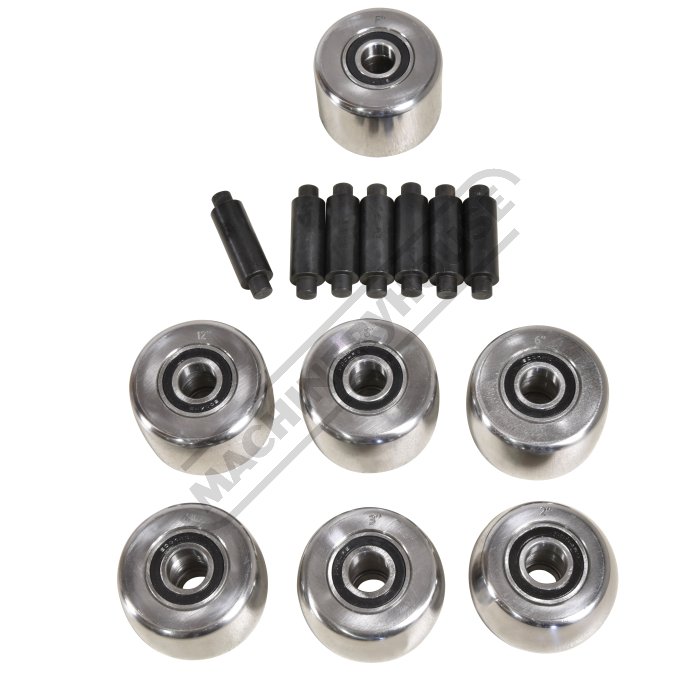

Supplied with a 203mm diameter x 50mm wide top rolling wheel and 50, 73, 101, 152, 203, 305mm radius dies & 1 x flat die.

The machine weighs 75kg and has provisions to be easily secured to floor.
Features
  • 711mm throat capacity
  • 1.6mm mild steel capacity
  • 2.0mm copper & Aluminium capacity
  • Top anvil Ø203 x 50mm
  • Includes 50, 73, 101, 152, 203, 305mm radius dies & 1 x flat die
  • All dies are heat treated to minimise wear

Product Brochure

Instruction Manual
3.26 MB
Enter your postcode to estimate the delivery fee for this product.
Postcode:
Freight is estimated from the nearest branch that has stock available.
Our delivery contractors operate Monday to Friday only, excluding public holidays.
All orders are processed in order of payment receipt.
Our aim is to despatch your goods as quickly as possible, however despatch times may take longer than our standard 3 to 5 day service during peak periods or according to stock levels, if this is the case we will advise you before processing your order.
More questions? Visit our delivery information page

  • EWM-75 (S225)
ORDER CODE
Model
Capacity - Mild Steel
Capacity - Copper
Throat Capacity
Top Anvil Size
Radius Dies

Working Height
Weight
Price (ex GST)
Price (inc GST)

Spare Parts Ordering
To assist you in ordering your Spare Part to suit Hafco Machinery simply select from the list below, if your part is not listed below please view “Parts List PDF” to identify your part required (if provided) then simply click the "SEND PARTS REQUEST" Button and fill in the required details. Our Spare Parts and Service Department will contact you as quickly as possible. If you need further assistance please contact us.
Parts List
1.26 MB
