Automatic Non-Ferrous Double Head Profile Cutting Machine - OMRM 113

Ø450mm Blade

S117B 1 of 10

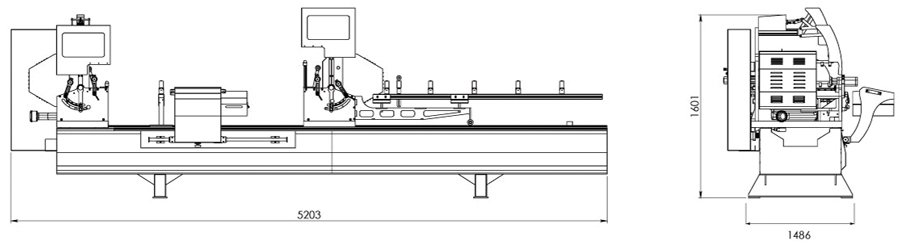

Automatic Double Head Cutting Machine - OMRM 113 2 of 10

Control 3 of 10

Left Side Cutting Head 4 of 10

Right Side Cutting Head 5 of 10

Linear Guideways 6 of 10

Adjustable Blade Angle 7 of 10

Material Protection Pads 8 of 10

Pneumatic Clamps 9 of 10

Wide Bed Support 10 of 10

Description

Ø450mm Blade

ALUMINIUM & PVC PROFILE CUTTING

Cutting length size and angle degree are entered from LCD-display on control panel
Automatic head position for 45° and 90 °degrees, easy adjustment for intermediate angles
Memory size of 2299 steps including quantity, length and angles of cutting
Possibility of manual length size adjustment
Magnetic rule length control system
PLC control system
Multi language support
Repetitive cut program, angle cut – variable and fixed length – fixed angle
Extra length cut program (over 4 metre.)
Diameter of a diamond saw blade is 450 mm
Output of disk is 148 mm that allows to make double profile cutting (74 mm x 2)
Horizontal pneumatic clamping kit
Adjustable cutting speed
Single head operation possibility
Industrial dust exhaust
Conveyor for the movable head
Intermediate profile support for long size cutting
Particular care has been taken over the safety measures, both mechanical and electrical
Power supply protects system from voltage overload
Servo motor
Linear rails head movement

Specifications

ORDER CODE	S117B
MODEL	OMRM 113
Cutting Head Action (Auto-Manual)	Auto
Operation Type	Swivel - Dual Mitre
(mm)Blade Size (D x B x T)	Ø450
Vice Clamping Fixture	Pneumatic
Coolant System	Optional
(rpm)Blade Speeds	29820
(kW / hp)Motor Power	2 x 2.2 / 3
(V)Voltage	415
(kg)Nett Weight	910
