THIS PRODUCT IS NO LONGER AVAILABLE. Click to see recommended item > R010 (HV-10)
TOOLMASTERTRT-10
Tilting Rotary Table
  • 1 of 2
    R027
  • 2 of 2
    Rear View
Order Code: R027
TRT-10 - Tilting Rotary Table
Ø250mm
TOOLMASTER
ORDER CODE
R027
Model
TRT-10
Size
250mm

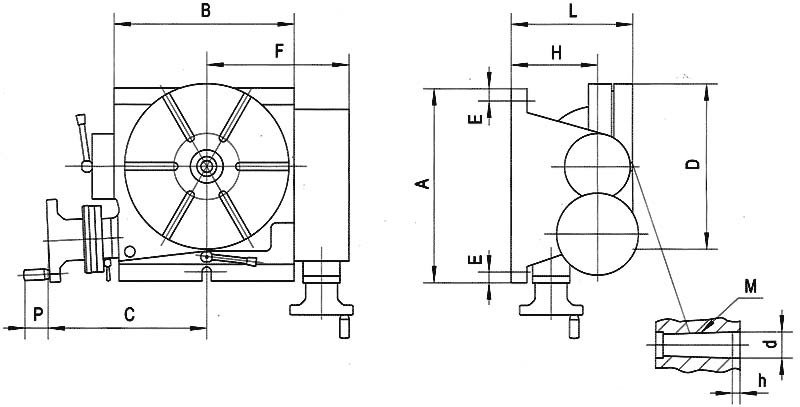

A
310mm
B
252mm
C
235mm
D
250mm dia.
E
14mm
F
199mm
H
140mm
L
205mm
M
MT3
P
40mm
d (lowercase)
30mm dia.
h (lowercase)
6mm
T-Slot Size
12mm
Worm Ratio
90:1
Features
  • An accurately designed rotary table for milling, boring and other machining operations
  • The table allows for indexing, and other operations to be carried out rapidly with precision
  • Low profile design minimises machine capacity losses without sacrificing work load capacity
  • Tilting range from 0 - 90 degrees from the horizontal to vertical position and locked
  • T-slots are machine to accept standard tee nuts
  • One spindle rotation of the handle is equal to 3 degrees
  • Accuracy of the tilting operation is 2 minutes
  • 10 second vernier scale on table
  • Table dial graduations 1 minute
  • Worm ratio is 90:1
  • Includes dividing plates
Optional Accessories
  • Optional tailstock to suit CODE: R014
