Tilting Rotary Table - TRT-8
Ø200mm
R026
1 of 2
Rear View
2 of 2
Discontinued
Order Code: R026
1 Year Warranty
Description
Tilting Rotary Table - TRT-8
Ø200mm
Features
- An accurately designed rotary table for milling, boring and other machining operations
- The table allows for indexing, and other operations to be carried out rapidly with precision
- Low profile design minimises machine capacity losses without sacrificing work load capacity
- Tilting range from 0 - 90 degrees from the horizontal to vertical position and locked
- T-slots are machine to accept standard tee nuts
- One spindle rotation of the handle is equal to 3 degrees
- Accuracy of the tilting operation is 2 minutes
- 10 second vernier scale on table
- Table dial graduations 1 minute
- Worm ratio is 90:1
- Includes dividing plates
Optional Accessories
- Optional tailstock to suit CODE: R014
Compare Product Range

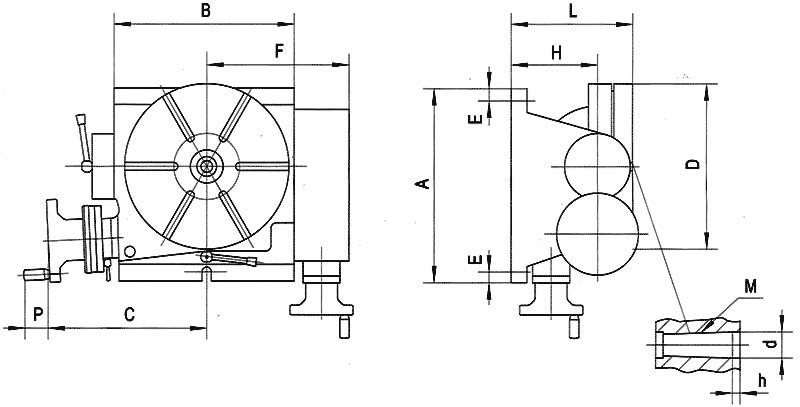

Specifications
| ORDER CODE | R026 |
|---|---|
| MODEL | TRT-8 |
| (mm)Size | 200 |
| (mm)A | 296 |
| (mm)B | 213 |
| (mm)C | 186 |
| (mm)D | Ø200 |
| (mm)E | 14 |
| (mm)F | 175.5 |
| (mm)H | 120 |
| (mm)L | 180 |
| (MT)M | MT3 |
| (mm)P | 40 |
| (mm)d (lowercase) | Ø30 |
| (mm)h (lowercase) | 6 |
| (mm)T-Slot Size | 12 |
| Worm Ratio | 90:1 |
