HAFCOTRT-4C
Tilting Rotary Table Chuck
  • 1 of 1
    R003
Order Code: R003

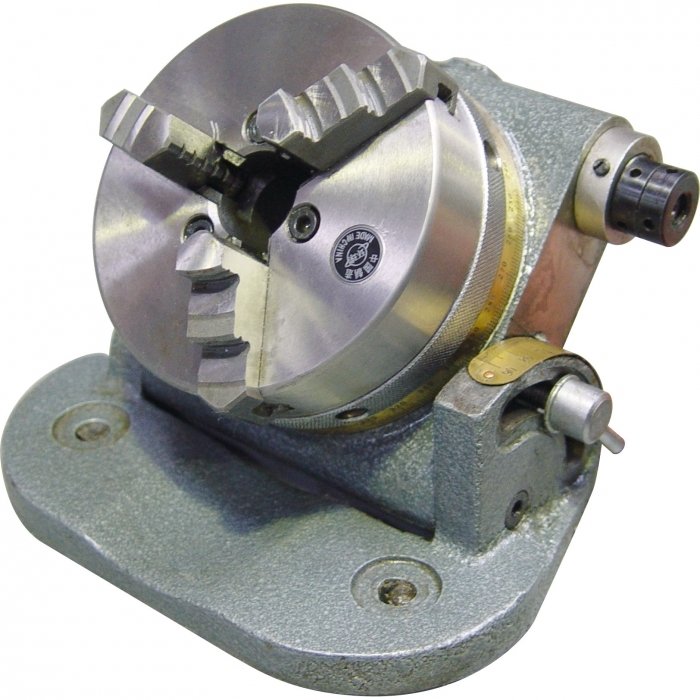

TRT-4C - Tilting Rotary Table Chuck
Ø110mm Chuck
HAFCO
ORDER CODE
R003
Model
TRT-4C
Size
110mm
D
110mm dia.
d (lowercase)
25mm
Worm Ratio
94:1
Description
This small Tilting Rotary Table is manufactured from close grain cast iron and is suitable for small hobby mills
Features
  • 110mm diameter 3-jaw self-centring chuck with 25mm bore
  • One set of Jaws supplied with chuck, which are reversible
  • Tilts from 0º horizontal to 90º vertical and is graduated in 1º increments
  • Chuck rotation is graduated 360º in 1º increments
  • 94-1 gear ratio which can be disengaged for quick indexing work
  • Weigh's 9kg
