Digital Disc Micrometer - 45-503

25-50mm/1-2"

Non rotating spindle

Q503 1 of 1

Discontinued

Order Code: Q503

1 Year Warranty

IP54 RS232

Sorry, this Product is no longer available
Click Here To View All Micrometers - Outside - Digital - Disc

Compare

Wishlist

Description Specifications Compare Accessories Downloads

Buy Micrometers - Outside - Digital - Disc Online - Australia

Description

Description

Digital Disc Micrometer - 45-503

25-50mm/1-2"

Non rotating spindle

Overview

Designed for the measurement of gears and paper thickness. The spindle is non-rotating to eliminate torque on the work piece.

Features

Painted frame
Protection level IP54
Origin data set, Absolute and incremental readings
Metric/Inch conversion
RS232 data output. (Uses cable 40-400)
Large digital display
Metric/Imperial conversion
Ratchet thimble
Accuracy 0.004mm
Resolution 0.001mm / 0.0005"

Includes

Includes LR44 battery

Specifications

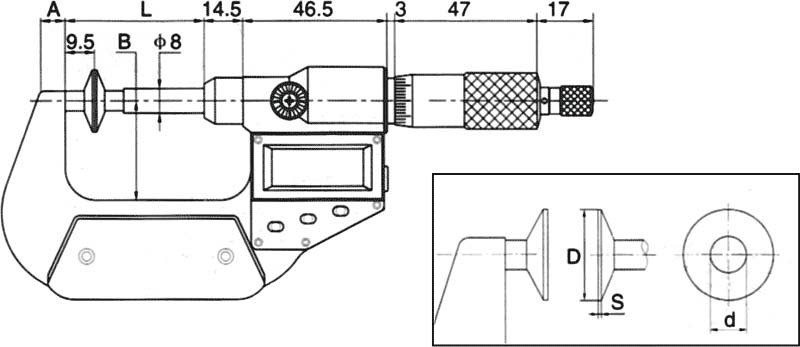

Enlarge Diagram Compare Product Range

Specifications

ORDER CODE	Q503
(mm / inch)Range	25 - 50mm / 1 - 2"
(mm)Accuracy	0.004
(mm)A	8
(mm)B	44.5
(mm)d (lowercase)	8
(mm)D	20
(mm)L	68
(mm)S	0.7
