THIS PRODUCT IS NO LONGER AVAILABLE. Click to see similar products > Outside - Digital Disc
MEASUMAX45-502
Digital Disc Micrometer
  • 1 of 1
    Q502
Order Code: Q502
45-502 - Digital Disc Micrometer
0-25mm/0-1"
Non rotating spindle
MEASUMAX
ORDER CODE
Q502
Range
0-25mm/0-1"
Accuracy
0.004mm

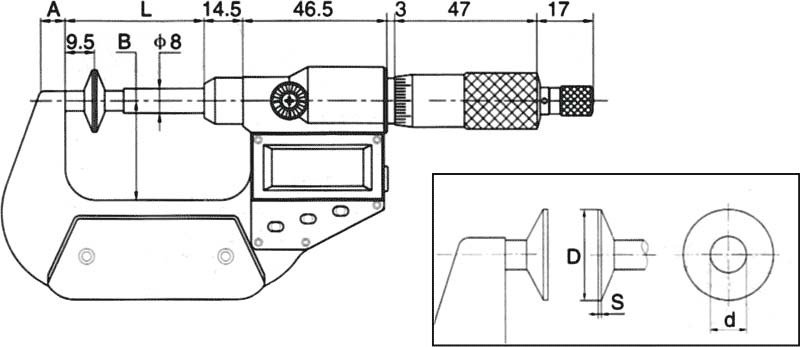

A
8mm
B
32mm
d (lowercase)
8mm
D
20mm
L
43mm
S
0.7mm
Description
Designed for the measurement of gears and paper thickness. The spindle is non-rotating to eliminate torque on the work piece.
Features
  • Painted frame
  • Protection level IP54
  • Origin data set, Absolute and incremental readings
  • Metric/Inch conversion
  • RS232 data output. (Uses cable 40-400)
  • Large digital display
  • Metric/Imperial conversion
  • Ratchet thimble
  • Accuracy 0.004mm
  • Resolution 0.001mm / 0.0005"
Includes
  • Includes LR44 battery
