MEASUMAX11-491
Groove Micrometer
  • 1 of 3
    Q491
  • 2 of 3
    Figure 1.gif
  • 3 of 3
    Shown In Box
Order Code: Q491
11-491 - Groove Micrometer
25-50mm
Only Available From: Sydney
Additional Freight Charges May Apply
MEASUMAX
On Special - While Stocks Last
ex GST
inc GST
$450.00
$495.00
$250.00
$275.00

ORDER CODE
Q491
Inside Range
26.5-51.5mm
Outside Range
25-50mm
Parallelism
0.01mm
Accuracy
0.01mm

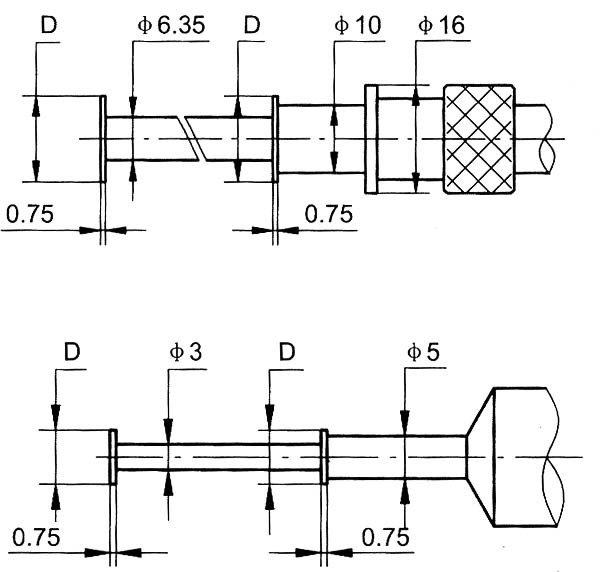

D
13mm
Description
Measumax Groove Micrometers provide a easy method for measuring recesses in bores such as hydraulic seals "O" ring grooves and Circlip grooves.
Features
  • Flanged measuring faces for measuring the locations of grooves inside bores
  • Laser engraved graduations
  • Two scales provided for inside and outside measurement
  • Two-directional measuring force
  • Resolution: 0.01mm
