MEASUMAX12-323
Outside Micrometer - Large Cast Frame
  • 1 of 1
    Q323
Order Code: Q323
12-323 - Outside Micrometer - Large Cast Frame
250-275mm
Only Available From: Melbourne
Additional Freight Charges May Apply
MEASUMAX
On Special - While Stocks Last
ex GST
inc GST
$146.00
$160.60
$123.64
$136.00

ORDER CODE
Q323
Range
250-275mm
Accuracy
0.009mm
Setting Bar
1

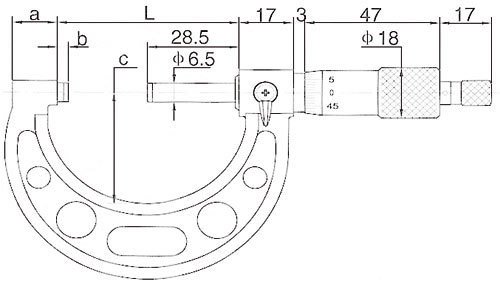

a
19.4mm
b
5.5mm
c
155mm
L
285mm
Description
Measumax metric micrometers represent exceptional value. Special care has been taken in design and workmanship to ensure high precision and long life.
Measumax metric micrometers meet industry standards for specification and accuracy
Features
  • Carbide measuring faces - Painted cast frame
  • Micro-fine clear graduations on satin chrome finish
  • Measuring face 6.5mm, Flatness 0.0008mm
  • Ratchet stop for exact repetitive readings
  • Includes deluxe foam lined plastic case and wrench
  • Resolution 0.01mm
  • Supplied with setting standards
Product Brochure

Instruction Manual
727.21 KB
How to read a Micrometer
80.34 KB
  • 250-275mm (Q323)
