THIS PRODUCT IS NO LONGER AVAILABLE. Click to see similar products > Outside - Metric
MEASUMAX12-322
Outside Micrometer - Large Cast Frame
  • 1 of 1
    Q322
Order Code: Q322
12-322 - Outside Micrometer - Large Cast Frame
225-250mm
MEASUMAX
ORDER CODE
Q322
Range
225-250mm
Accuracy
0.008mm
Setting Bar
1

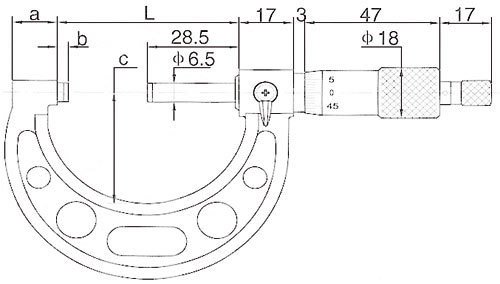

a
19.4mm
b
5.5mm
c
142mm
L
260mm
Description
Measumax metric micrometers represent exceptional value. Special care has been taken in design and workmanship to ensure high precision and long life.
Measumax metric micrometers meet industry standards for specification and accuracy
Features
  • Carbide measuring faces - Painted cast frame
  • Micro-fine clear graduations on satin chrome finish
  • Measuring face 6.5mm, Flatness 0.0008mm
  • Ratchet stop for exact repetitive readings
  • Includes deluxe foam lined plastic case and wrench
  • Resolution 0.01mm
  • Supplied with setting standards
