MEASUMAX12-315
Outside Micrometer - Large Cast Frame
  • 1 of 1
    Q315
Order Code: Q315

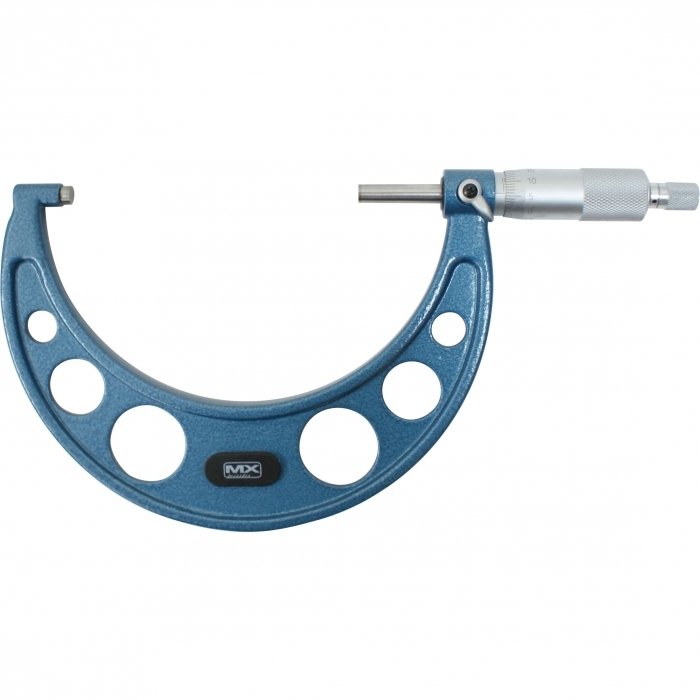

12-315 - Outside Micrometer - Large Cast Frame
100-125mm
MEASUMAX
ORDER CODE
Q315
Range
100-125mm
Accuracy
0.006mm
Setting Bar
1

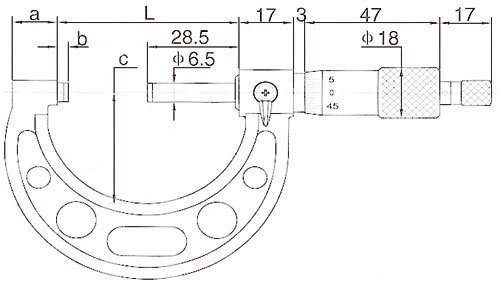

a
16.5mm
b
3mm
c
73mm
L
133mm
Description
Measumax metric micrometers represent exceptional value. Special care has been taken in design and workmanship to ensure high precision and long life.
Measumax metric micrometers meet industry standards for specification and accuracy
Features
  • Carbide measuring faces - Painted cast frame
  • Micro-fine clear graduations on satin chrome finish
  • Measuring face 6.5mm, Flatness 0.0008mm
  • Ratchet stop for exact repetitive readings
  • Includes deluxe foam lined plastic case and wrench
  • Resolution 0.01mm
  • Supplied with setting standards
Product Brochure

How to read a Micrometer
80.34 KB
Instruction Manual
673.99 KB
