MEASUMAX33-2365
Vernier Depth Gauge
  • 1 of 2
    Q2365
  • 2 of 2
    Head
Order Code: Q2365
33-2365 - Vernier Depth Gauge
0-300mm
MEASUMAX
ORDER CODE
Q2365
Range
0-300mm
Accuracy
±0.06mm
Graduations
0.05mm

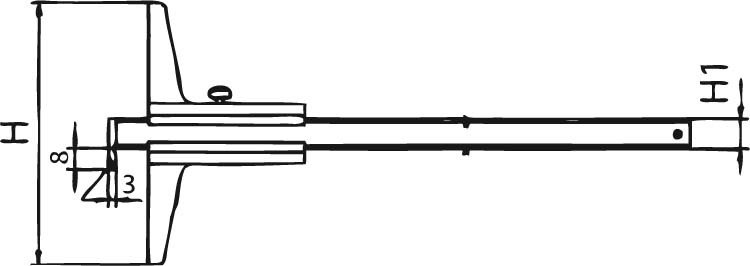

H
102mm
H1
11.5mm
Description
The Measumax Vernier Depth Gauge is suitable for depth measurement
Instrument are manufactured to ISO 10012:2003
Features
  • Mono block stainless steel construction
  • With screw at the back of the far end of the caliper bar
  • Internal & external depth measurement

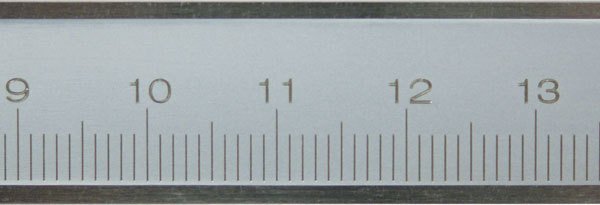

  • Clear laser engraved graduations
  • Supplied in plastic case
