MEASUMAX34-2265

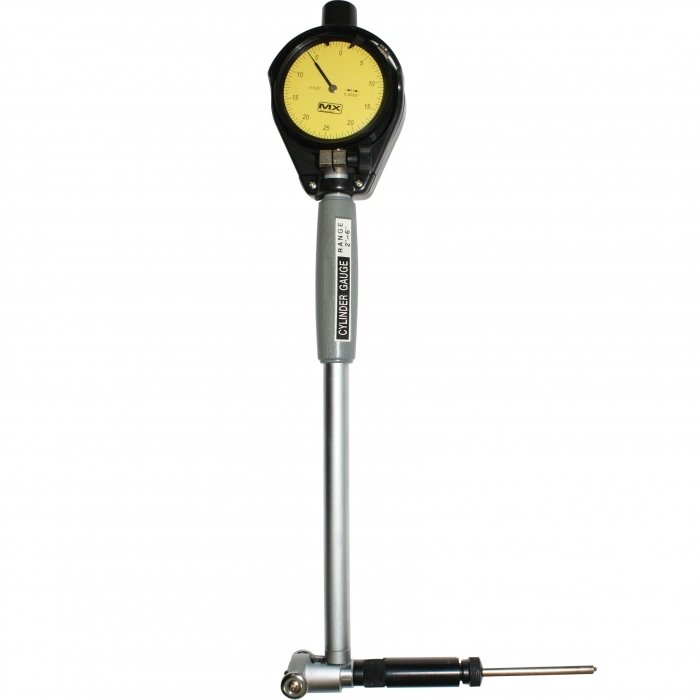

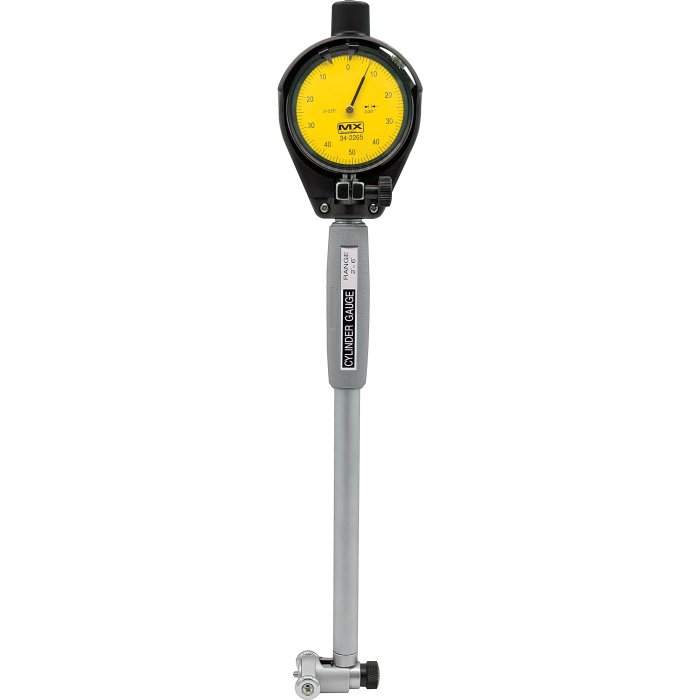

Dial Bore Gauge
  • 1 of 1
    Q2265
Order Code: Q2265
34-2265 - Dial Bore Gauge
2-6"
MEASUMAX
ORDER CODE
Q2265
Range
2-6"
Graduation
0.001"
Readable Depth
6"
Anvils
11
Spacers
3
Features
  • Suitable for the inspection of deep internal diameters

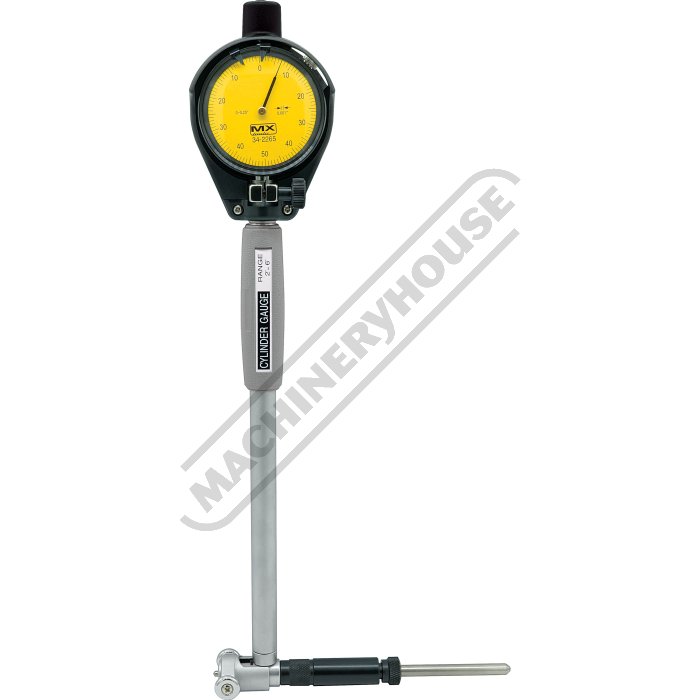

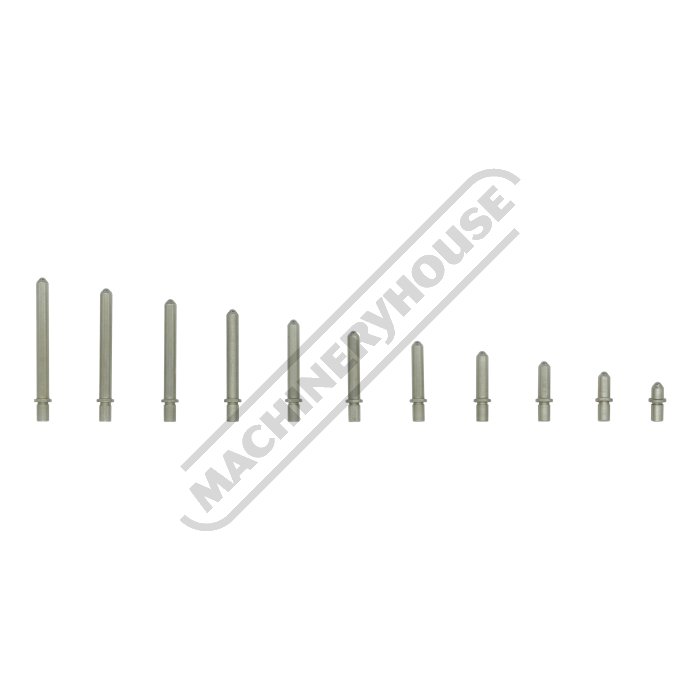

  • Moveable anvil on one side with interchangeable insert type anvils on the other side (above 35mm)
  • Self aligning mechanism by centering plate
  • Easy anvil replacement

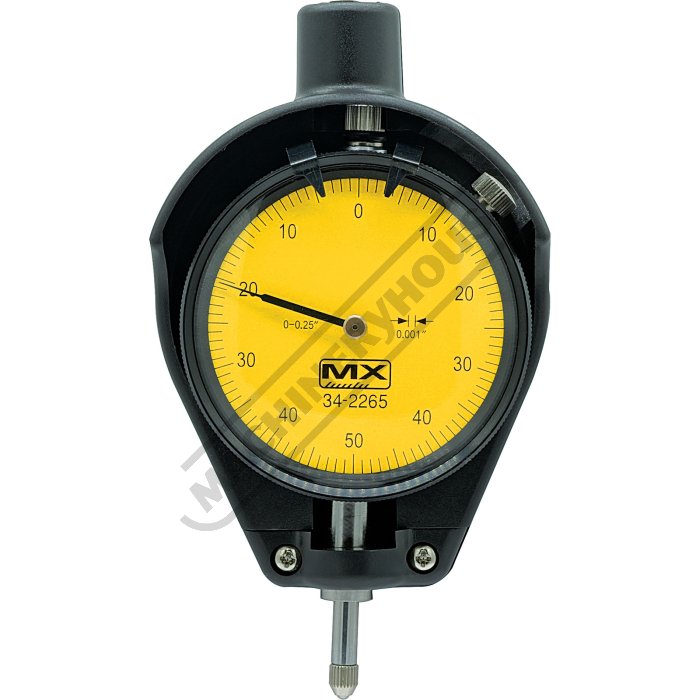

  • Dial face cover supplied
  • Dial indicator stem 8mm
Product Brochure

Instruction Sheet
149.88 KB
