Dial Test Indicator - Metric - 34-224
0 - 0.8mm Micron (Din Accuracy)
Q224
1 of 2

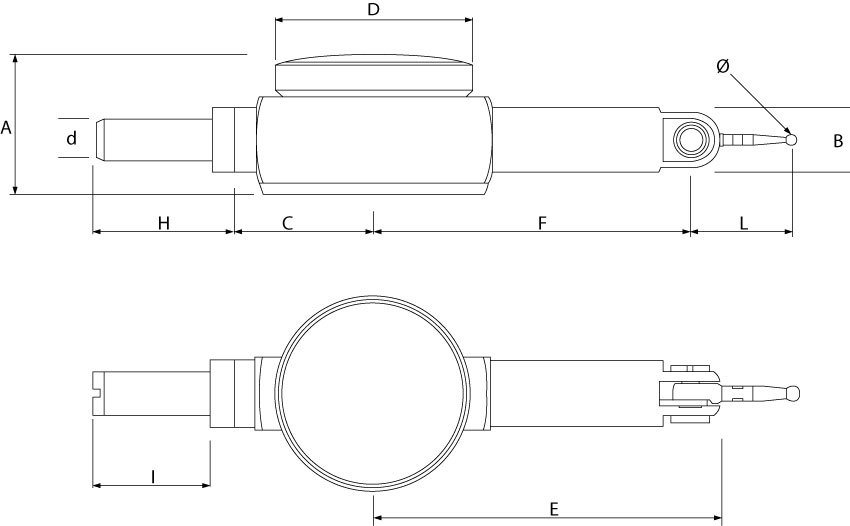

Diagram Dimensions
2 of 2
Discontinued
Order Code: Q224
1 Year Warranty
Description
Dial Test Indicator - Metric - 34-224
0 - 0.8mm Micron (Din Accuracy)
Overview
The dial test indicator is ideally suited for all kinds of comparative measurements in the workshop and inspection room. because of its unique design it is suitable for measuring down pockets and holes
Features
- Large measuring range - Jewel movement
- Reversing Measuring direction
- Adjustable bezel face
- Sealed Bezel to keep out dirt and coolant
- Small round extension for easy access in pockets and holes
Compare Product Range
Specifications
| ORDER CODE | Q224 |
|---|---|
| Range | 0 - 0.8mm |
| Graduations | 0.01mm |
| (mm)A | 20.6 |
| (mm)B | 9.5 |
| (mm)C | 20 |
| (mm)D | Ø37.5 |
| (mm)d | 8 / 6 |
| (mm)F | 46 |
| (mm)H | 20.5 |
| (mm)I | 17 |
| (mm)L | 14.8 |
Discontinued
On Sale
On Sale
On Sale
On Sale
On Sale
On Sale
On Sale
On Sale
- Compare:
- Wishlist:
- ORDER CODE
- Range
- Graduations
- (mm)A
- (mm)B
- (mm)B1
- (mm)C
- (mm)D
- (mm)d
- (mm)E
- (mm)F
- (mm)G
- (mm)H
- (mm)I
- J
- (mm)K
- (mm)L
- (mm)L1
- (mm)Ø
- (ex-gst)Pricing
- (inc-gst)
- On Sale
-
Compare
-
Wishlist
- M085
- 0 - 0.8mm
- 0.01mm
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- $190.00
- $209.00
- ADD TO CART
- On Sale
-
Compare
-
Wishlist
- Q217
- 0 - 0.8mm
- 0.01mm
- 26.35
- 18.35
- ~
- 16.5
- Ø37
- 6 / 8
- 44
- 39.75
- ~
- ~
- ~
- ~
- ~
- 16.5
- ~
- 2
- $90.00
- $99.00
- ADD TO CART
- On Sale
-
Compare
-
Wishlist
- Q2171
- 0 - 0.03"
- 0.0005"
- 24.5
- 17.3
- ~
- 16.6
- Ø31.2
- 3.95 / 9.5
- 42.6
- 38.7
- ~
- ~
- ~
- ~
- ~
- 19
- ~
- 2
- $77.27
- $85.00
- ADD TO CART
- On Sale
-
Compare
-
Wishlist
- Q218
- ±1.6mm
- 0.01mm
- 31.2
- ~
- ~
- ~
- Ø38
- 4 / 8
- ~
- ~
- ~
- ~
- 16.5
- 99
- ~
- ~
- 19
- 2.5
- $152.73
- $168.00
- ADD TO CART
- On Sale
-
Compare
-
Wishlist
- M081
- 0 - 0.8mm
- 0.01mm
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- $200.00
- $220.00
- ADD TO CART
- On Sale
-
Compare
-
Wishlist
- M083
- 0.04"
- 0.001"
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- $244.55
- $269.00
- ADD TO CART
- On Sale
-
Compare
-
Wishlist
- M084
- 1 mm
- 0.01mm
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- $244.55
- $269.00
- ADD TO CART
