MEASUMAX25-165
3-Point Internal Micrometer - Large Range
  • 1 of 4
    Q165
  • 2 of 4
    Case
  • 3 of 4
    Setting Ring
  • 4 of 4
    Graduations
Order Code: Q165
25-165 - 3-Point Internal Micrometer - Large Range
100-150mm
Metric
MEASUMAX
ORDER CODE
Q165
Range
100-150mm
Accuracy
0.005mm
Setting Range
ø100mm

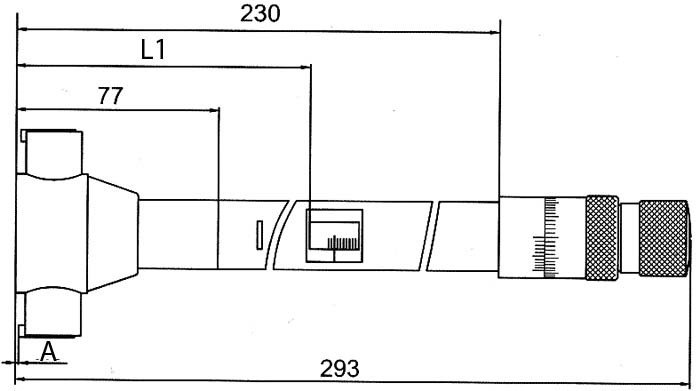

A
0.5mm
L1
230mm
Description
Measumax large range 3-point internal micrometers are self-centering for accurate measurement of internal diameters
Features
  • Carbide-tipped contact points
  • Large range capacity
  • Measurements can be taken closer to the bottom of a blind bore, and can be taken in a deep hole with an extension
  • Resolution: 0.01mm (metric)
  • 0.0001" (imperial)
  • Supplied in deluxe foam lined aluminium case
