Digital 3-Point Internal Micrometers - 25-1625

20-50mm/0.8-2"

IP54

Q1625 1 of 2

Set 2 of 2

MEASUMAX

Discontinued

Order Code: Q1625

1 Year Warranty

IP54 RS232

Sorry, this Product is no longer available
Click Here To View All Micrometers - Inside - 3 Point - Digital

Compare

Wishlist

Description Specifications Compare Accessories Downloads

Buy Micrometers - Inside - 3 Point - Digital Online - Australia

Description

Digital 3-Point Internal Micrometers - 25-1625

20-50mm/0.8-2"

IP54

Overview

Measumax Digital 3-Point Internal Micrometers are self-centering for accurate measurement of internal diameters. Measurements can be taken close to the bottom of a blind hole

Features

Carbide tipped contact points
Protection level IP54 Criterion DIN40050/IEC529
RS232 data output (Cable 40-400)
Metric/Inch conversion
Sets supplied with setting rings
Supplied in deluxe foam lined aluminium case

Specifications

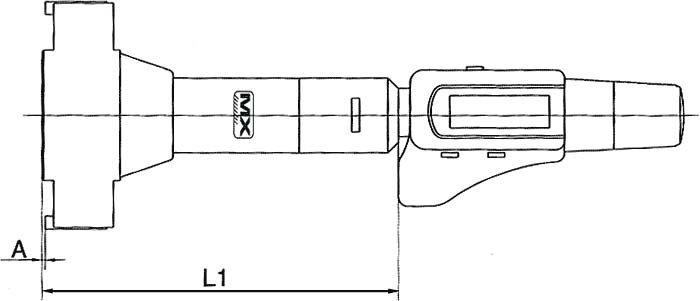

Enlarge Diagram Compare Product Range

Specifications

ORDER CODE	Q1625
(mm / inch)Range	20 - 50mm / 0.8 - 2"
(mm)Accuracy	0.004
(mm)Individual Range	20-25,25-30,30-40,40-50
(mm)Setting Rings	Ø25, 40
(mm)Extension Rods	150
(mm)A	0.5
(mm)L1	107
