Digital 3-Point Internal Micrometers - 25-1615
12-20mm/0.5-0.8"
IP54
Q1615
1 of 4
Aluminium Case
2 of 4
Figure 1
3 of 4
Figure 2
4 of 4
Discontinued
Order Code: Q1615
1 Year Warranty
IP54 RS232
Description
Digital 3-Point Internal Micrometers - 25-1615
12-20mm/0.5-0.8"
IP54
Overview
Measumax Digital 3-Point Internal Micrometers are self-centering for accurate measurement of internal diameters. Measurements can be taken close to the bottom of a blind hole
Features
- Carbide tipped contact points
- Protection level IP54 Criterion DIN40050/IEC529
- RS232 data output (Cable 40-400)
- Metric/Inch conversion
- Sets supplied with setting rings
- Supplied in deluxe foam lined aluminium case
Compare Product Range
Specifications
| ORDER CODE | Q1615 |
|---|---|
| (mm / inch)Range | 12 - 20mm / 0.5 - 0.8" |
| (mm)Accuracy | 0.004 |
| (mm)Individual Range | 12-16mm, 16-20 |
| (mm)Setting Rings | Ø16 |
| (mm)Extension Rods | 150 |

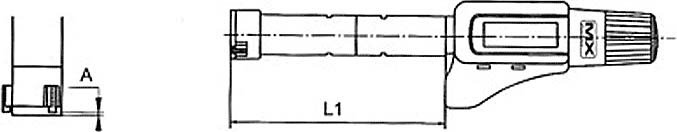

| (mm)A | 0.5 |
| (mm)L1 | 107 |
