MEASUMAX22-146
Depth Micrometer
  • 1 of 6
    Q146
  • 2 of 6
    Graduations
  • 3 of 6
    Measuring Example
  • 4 of 6
    Figure 1
  • 5 of 6
    Figure 2
  • 6 of 6
    Figure 3
Order Code: Q146
22-146 - Depth Micrometer
0-100mm
Metric
MEASUMAX
ORDER CODE
Q146
Range
0-100mm
Accuracy
±0.005mm

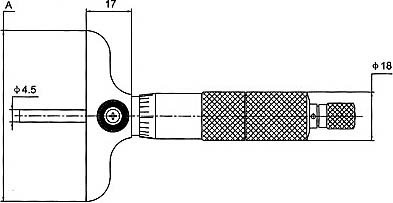

A
100mm
Rods
4
Description
High accuracy interchangeable rods with hardened and micro lapped anvils, provide a wide measuring range
Features
  • High accuracy interchangeable rods with hardened and micro lapped flat anvils, provide a wide measuring range
  • The interchangeable rods are held securely under the top ratchet section and have individual adjustment for resetting if required
  • The base is hardened, ground and lapped for accuracy
  • Ratchet stop for exact repetitive readings
  • Positive locking clamp
  • Resolution: Metric 0.01mm
