Screw Thread Micrometers - 10-1373
3-4"
Imperial
Q1373
1 of 3
V shaped and cone shaped anvils
2 of 3
Shown In Box
3 of 3
Discontinued
Order Code: Q1373
2 Years Warranty
Description
Screw Thread Micrometers - 10-1373
3-4"
Imperial
Overview
SCREW THREAD MICROMETER - IMPERIAL (10-1373):Measumax Screw Thread micrometers are suitable for measuring pitch diameters of Metric, Whitworth and Unified screw threads.
Features
- V-shaped and cone-shaped anvils (interchangeable) are supplied. Dimensions of anvil-tail: Ø5x15mm
- Ratchet friction thimble
- Painted frame, rotating spindle
- Graduation: 0.0001"
Includes
- Includes 55º Anvils
- F0206 18-14TPI
- F0207 14-10TPI
- F0208 10-7TPI
- F0209 7-4.5TPI
- F0210 4.5-3.5TPI
Compare Product Range
Specifications
| ORDER CODE | Q1373 |
|---|---|
| Measuring Units | Imperial |
| (mm / inch)Range | 3 - 4" |
| (mm)Graduation | 0.001" |
| (mm)Accuracy | ±0.005 |

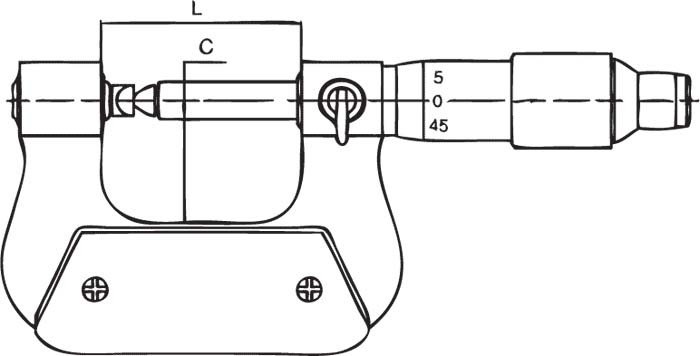

| (mm)C | 62 |
| (mm)L | 118 |
| Anvils Supplied | F0206 - F0210 (55º ) |
Discontinued
Discontinued
- Compare:
- Wishlist:
- ORDER CODE
- Measuring Units
- (mm / inch)Range
- (mm)Graduation
- (mm)Accuracy
- (mm)C
- (mm)L
- Anvils Supplied
- (ex-gst)Pricing
- (inc-gst)
- On Sale
-
Compare
-
Wishlist
- Q138
- Metric
- 0 - 25mm
- 0.01mm
- ±0.004mm
- 26
- 42
- F0101 - F0105 (60º )
- $160.00
- $176.00
- ADD TO CART
- On Sale
-
Compare
-
Wishlist
- Q139
- Metric
- 25 - 50mm
- 0.01mm
- ±0.004mm
- 38
- 67
- F0102 - F0106 (60º )
- $170.00
- $187.00
- ADD TO CART
- On Sale
-
Compare
-
Wishlist
- Q1391
- Metric
- 50 - 75mm
- 0.01mm
- ±0.004mm
- 50
- 92
- F0102 - F0106 (60º )
- $190.00
- $209.00
- ADD TO CART
- On Sale
-
Compare
-
Wishlist
- Q1392
- Metric
- 75 - 100mm
- 0.01mm
- ±0.005mm
- 62
- 118
- F0102 - F0106 (60º )
- $208.18
- $229.00
- ADD TO CART
