Micrometers - Uni - 10-131
25-50mm
Q131
1 of 6
Blade Anvil Measuring
2 of 6
Pin Anvil Measuring
3 of 6
Vertical Height Measuring
4 of 6
Blade and Pin Anvils
5 of 6
Shown with Blade Anvil
6 of 6
Discontinued
Order Code: Q131
2 Years Warranty
Description
Micrometers - Uni - 10-131
25-50mm
Overview
Used for measuring tube thickness, shoulder-edge distance, rivet head height etc, with interchangeable anvils (flat anvil and rod anvil) Can also be used to measure stepped heights when the clamp and anvils are removed.
Features
- Friction ratchet thimble, chrome plated frame
- Carbide tipped anvils, Flatness 0.0008mm
- Resolution: 0.01mm
Compare Product Range
Specifications

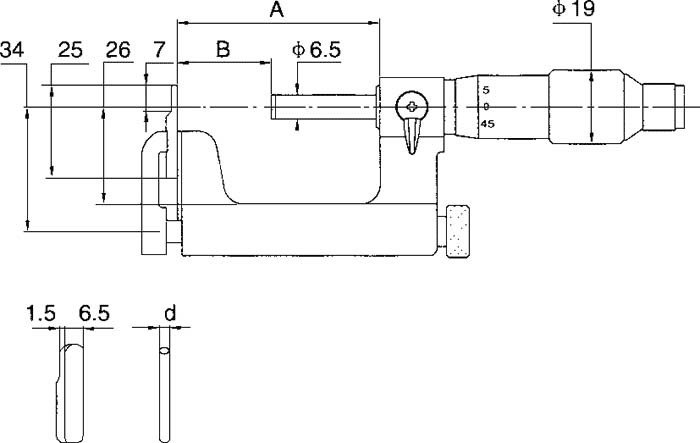

| ORDER CODE | Q131 |
|---|---|
| (mm)Range | 25 - 50 |
| (mm)Accuracy | 0.004 |
| (mm)A | 53.5 |
| (mm)B | 25 |
| (mm)d | Ø5 |
No products to compare. This is the only product in this category. Looking for it's specifications?
