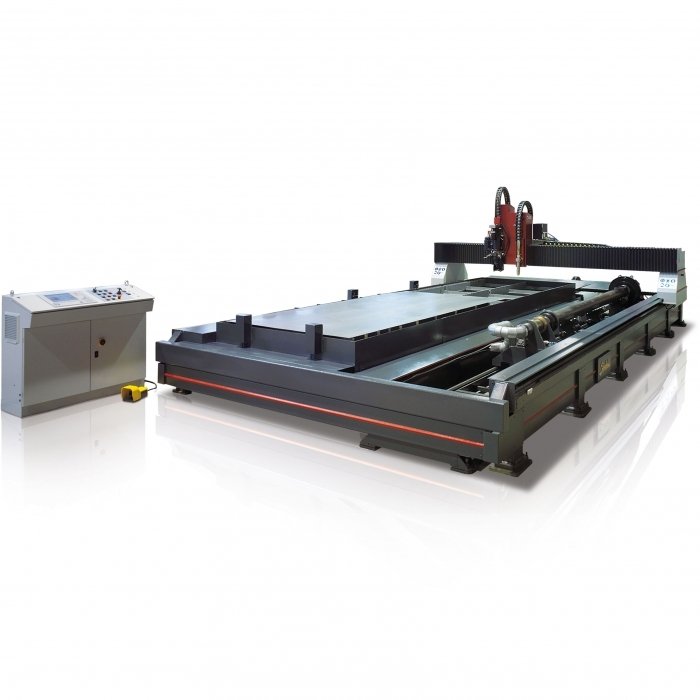

BAYKALBPL-H
Industrial CNC Plasma Cutting Table
  • 1 of 1
    P982
Order Code: P982
BPL-H - Industrial CNC Plasma Cutting Table (415V)
Range 2200 x 6400 ~ 4200 x 28800mm
Please Refer to Table for Specifications
BAYKAL
ORDER CODE
P982
Model
BPL-H
Cutting Table Capacity
Refer Table Below
Work Table Height
750mm
Description
The all rounder designed for most medium fabrication shops and small service centres to large production plants. It can carry plasmas from 50-400 amps up to 4 tool carriages and a total of 8 oxy cut torches.

MULTI PROCESS APPLICATIONS
BPL-H machine with its special designed bridge construction have unlimited feature as multitorch and multi process application. With that option customers are free for any application requested.

With Specially designed side slide carrier system, prevent distortion effects and keep accuracy also for very long machine rails. Slide Carrier gives trouble free Oxy-fuel cutting up to 300 mm and allows machine length up to 60 meters and more.
Features
  • DESIGN AND OPERATING FEATURES
  • Availability of multi torch applications.
  • Suitable for Oxy-fuel cutting up to 300 mm
  • Best combination of Precision and very thick process machine.
  • High precision plasma cutting technology
  • High mechanical accuracy to: ± O.1 mm
  • Axis positioning speed: 30 m/min
  • X and Y axis travel on precision linear rail guides
  • Torch-height travel with hardened ballscrews on dual linear guides
  • Fast and accurate positioning with AC brushless servo motors:
  • Y-axis: dual synchronised servo drives
  • X-axis: single servo drive
  • Cutting table independently constructed of bridge and machine frame to maintain positional accuracy under any table-load
  • Patented crash protection on torch®
  • Automatic torch height control
  • Sectional cutting table with automatic fume extraction system
  • Windows® based CNC unit
  • Automatic nesting software
Optional Accessories
  • Dust and fume collector devices conforming to safety regulations

Product Brochure

HYPERTHERM Full Suite Integration
4.69 MB
POWER SUPPLY CAPACITY
10.62 KB
Enter your postcode to estimate the delivery fee for this product.
Postcode:
Freight is estimated from the nearest branch that has stock available.
Our delivery contractors operate Monday to Friday only, excluding public holidays.
All orders are processed in order of payment receipt.
Our aim is to despatch your goods as quickly as possible, however despatch times may take longer than our standard 3 to 5 day service during peak periods or according to stock levels, if this is the case we will advise you before processing your order.
More questions? Visit our delivery information page

  • BPL-H (P982)
ORDER CODE
Model
Cutting Table Capacity
Work Table Height
Plasma Cutting Unit
Thickness Cutting Capacity
Current Output
Duty Cycle (Typical)



Cutting Gas
Input Voltage
Price (ex GST)
Price (inc GST)
