SWIFT-CUTSwift-Cut 2500W
CNC Plasma Cutting Table
  • 1 of 8
    P9020
  • 2 of 8
    Water Table Standard
  • 3 of 8
    Breakaway Head Standard
  • 4 of 8
    Plasma Gantry
  • 5 of 8
    Torch
  • 6 of 8
    Side of Machine
  • 7 of 8
    Control Unit
  • 8 of 8
    Shown In Action
Order Code: P9020
Swift-Cut 2500W - CNC Plasma Cutting Table (240V)

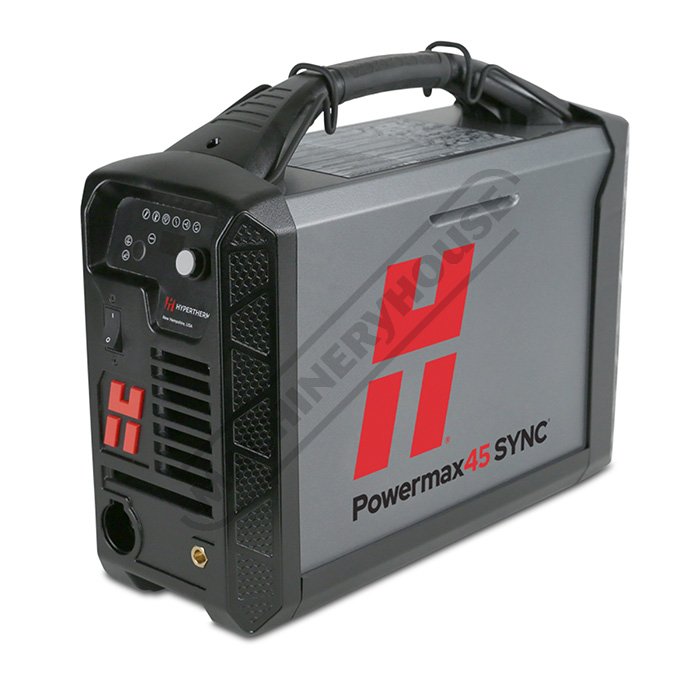

Hypertherm Powermax 45
Cuts up to 12mm
SWIFT-CUT
ORDER CODE
P9020
Model
Swift-Cut 2500W
Cutting Table Capacity
2500 x 1250mm
Plasma Cutting Unit
Hypertherm Powermax 45
Thickness Cutting Capacity
12mm
Current Output
20-45A
Duty Cycle (Typical)
50% @ 45A

60% @ 41A

100% @ 32A
Cutting Gas
Air or Nitrogen
Input Voltage
240V or 415V with N.
Description
Swift-Cut 2500WT - CNC Plasma 2500 x 1250mm Cutting Table and Hypertherm Powermax 45 to cut up to 12mm

Our Swift-Cut plasma cutting tables offer an affordable alternative to outsourcing, enabling you to take greater control of your business.
Features
  • Water tray for efficient control of sparks and fumes
  • Removable stainless steel splash guards for side rail protection
  • Dropped rails for ease of loading full sheets
  • Gantry parking to allow full sheet to be loaded overhead
  • Heavy duty steel construction with durable paint finish
  • Smooth motion linear V wheels
  • Dual drive Y-axis
  • Proximity sensing for reliable and robust switching
  • Auto adjusting X-axis linear V rollers
  • Rack and pinion drive system
  • Magnetic breakaway head eliminates damage to torch and improves safety
  • Cut metal up to 25mm thick depending on the Hypertherm Powermax unit selected
  • Digital Torch-Height Control (DTHC) Quick response for improved cut quantity and improved torch consumable life
  • Dynamic Cut Control (DCC) on Hypertherm powermax 65/85/105/125, Software control of cutting amps and air pressure, Error messages from plasma unit displayed on Swift-Cut control screen, Varied cutting speed control from the console for improved cut quality. INDUSTRY 1st UNIQUE TO SWIFT-CUT

  • OPERATORS PANEL:
  • Free-Standing Operators Console
  • 18.5" flat panel LCD monitor
  • Built in controller with dual CPU
  • Wireless keyboard and mouse
  • E-Stop safety button
  • External USB and network port for transfer of files and network connection
  • Easy access for maintenance

  • SOFTWARE:
  • Swift-Cam level 1 CAD/CAM program. Conversion of any DXF file to Swift-Cut machine code, manual nesting of parts, 2D parametric library, sheet properties and 2D cycle simulation
  • Swift-Cut CNC control software
  • Team viewer software for remote support
Optional Accessories
  • MACHINE UPGRADES:
  • Swift-Trace Camera - Optical reverse engineering, convert a hand drawn sketch to a DXF file for quick production.
  • Go from line drawings to cutting your design in four simple steps with the Swift-Trace system.

  • Swift-Marker Unit - Integrated pneumatic marker. Can be used to automatically mark text, fold lines and centre marks on components prior to profiling to avoid costly second operations.
  • Great for part numbering or serial numbering of parts.

  • SOFTWARE UPGRADES:
  • Swift-Cam level 2 (P9051) Level 1 + auto nesting with 1 click plate utilisation
  • Swift-Cam level 3 (P9052) Level 2 + cutting path auto correction, 3D simulation and cycle time calculation
  • HVAC (P9053) Parametric shape library of adjustable drawings for converting 3D components into 2D cutting profiles commonly used in the HVAC market. Can be used alongside Swift-CAM Level 1 or Level 2 for auto nesting parts.

Product Brochure

Swift Cut Brochure
1.93 MB
Swift Cut - FAQs
21.52 KB
Powermax 45 Instruction Manual
5.93 MB
SWIFT CUT Consumable Guide
262.98 KB
