SUNRISEIW-60H
Hydraulic Punch & Shear
  • 1 of 12
    P173
  • 2 of 12
    Work Table with Adj. Stops
  • 3 of 12
    Flat Bar Shear
  • 4 of 12
    Square Bar Shear
  • 5 of 12
    Round Bar Shear
  • 6 of 12
    Angle Shear
  • 7 of 12
    Angle Shear
  • 8 of 12
    Angle Shear
  • 9 of 12
    Angle Shear
  • 10 of 12
    Angle Shear
  • 11 of 12
    Notcher
  • 12 of 12
    Work Light
Order Code: P173
IW-60H - Hydraulic Punch & Shear (415V)
60 Tonne
SUNRISE
ORDER CODE
P173
Model
IW-60H
Punching Pressure
60 Tonne
Punching Table Type
Manual
Punching (Diameter X Thickness)
ø28 x 15mm, ø40 x 11mm
Punching Throat Depth
220mm
Punching Maximum Stroke Length
55mm
Punching Cycle/min (15mm Stroke) - Mild Steel
29
Flat Bar Shear (Width x Thickness) - Mild Steel
350 x 15mm, 210 x 20mm
Flat Bar Shear - Blade Length - Mild Steel
360mm
Angle Shear - 90º - Mild Steel
100 x 100 x 13mm
Angle Shear - 45º - Mild Steel
80 x 80 x 8mm
Round Solid Bar Shear - Mild Steel
Ø40
Square Solid Bar Shear - Mild Steel
38 x 38mm
Notcher - Rectangle - Mild Steel
50.8 x 90 x 8mm
Motor Power
5.5kW / 7.5hp
Voltage
415V
Weight (nett)
1600kg
Description
Manufactured in Taiwan

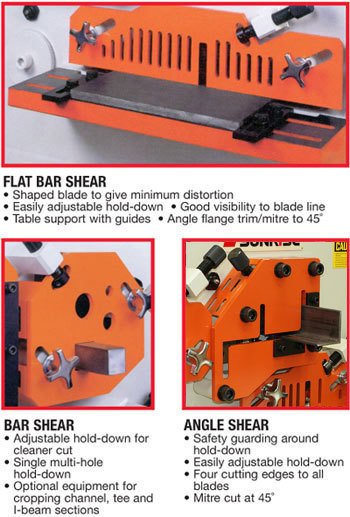

BAR SHEAR
Adjustable hold-down for cleaner cut
Single multi-hole hold-down
Optional equipment for cropping channel, tee and I-beam sections

ANGLE SHEAR
Safety guarding around hold-down
Easily adjustable hold-down
Four cutting edges to all blades
Mitre cut at 45º

FLAT BAR SHEAR
Easily adjustable hold-down
Good visibility to blade line
Table support with guides
Angle flange trim/mitre to 45º
Shaped blade to give minimum distortion
Features
  • Punching capacity up to 40mm standard
  • Power inching for easy job set up
  • Adjustable stroke for faster punching
  • Punch table and shear table both fitted with guides as standard
  • All work stations guarded
  • Most cutting blades are four-sided for long life
  • Adjustable length stop with rule
  • Five work stations, including notcher
  • Fully-filtered hydraulic system
  • Magnetic-base work lamp
  • Internal and external mitre cutting of angle iron
  • Telemecanique electrical components

  • Pre-Commissioning:
  • 1. Punch & Shear is run & tested prior delivery
  • 2. Hydraulic oil is included with machine
Includes
  • Full safety guarding at all workstations
  • 1 metre length stop for shear/crop stations
  • Tooling to all workstations
  • Punch, Shear & Notch support tables
Optional Accessories
  • Punch & dies are available in Round, Square, Rectangle & Oblong shapes


Product Brochure

ISO9001-2008
95.22 KB
Instruction Manual
2.54 MB
