SUNRISEIW-45M
Hydraulic Punch & Shear
  • 1 of 10
    P170
  • 2 of 10
    Work Table with Adj. Stops
  • 3 of 10
    Flat Bar Shear
  • 4 of 10
    Square Bar Shear
  • 5 of 10
    Round Bar Shear
  • 6 of 10
    Angle Shear
  • 7 of 10
    Angle Shear
  • 8 of 10
    Angle Shear
  • 9 of 10
    Angle Shear
  • 10 of 10
    Angle Shear
Order Code: P170
IW-45M - Hydraulic Punch & Shear (415V)
45 Tonne
Includes 6 Sets Of Round Punches & Dies
SUNRISE
On Special - Ends 30th June 2017
ex GST
inc GST
$7,350.00
$8,085.00
$6,980.00
$7,678.00

ORDER CODE
P170
MODEL
IW-45M
Punching Pressure (Tonne)
45
Punching Table Type
Manual with Guides and

Adjustable Stops
Punching (Diameter x Thickness) (mm)
Ø22 x 15, Ø40 x 8
Punching Throat Depth (mm)
175
Punching Maximum Stroke Length (mm)
35
Punching Cycle/min (15mm Stroke) - Mild Steel (cpm)
31
Punching Work Table Height (mm)
970
Flat Bar Shear (Width x Thickness) - Mild Steel (mm)
350 x 8, 180 x 12
Flat Bar Shear - Blade Length - Mild Steel (mm)
360
Flat Bar Shear Work Table Height (mm)
970
Angle Shear 90º - Mild Steel (mm)
80 x 80 x 8
Angle Shear 45º - Mild Steel (mm)
50 x 50 x 6
Angle Flange Trim (mm)
75
Angle Shear Work Table Height (mm)
1120
Round Solid Bar Shear - Mild Steel (mm)
Ø25
Square Solid Bar Shear - Mild Steel (mm)
25 x 25
Solid Bar Shear Work Table Height (mm)
1190
Motor Power (kW / hp)
3.75 / 5
Voltage / Amperage (V / amp)
415
Nett Weight (kg)
930
Description
Manufactured in Taiwan

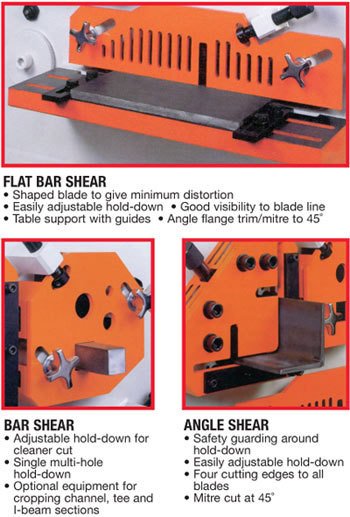

BAR SHEAR
Adjustable hold-down for cleaner cut
Single multi-hole hold-down
Optional equipment for cropping channel, tee and I-beam sections

ANGLE SHEAR
Safety guarding around hold-down
Easily adjustable hold-down
Four cutting edges to all blades
Mitre cut at 45º

FLAT BAR SHEAR
Easily adjustable hold-down
Good visibility to blade line
Table support with guides
Angle flange trim/mitre to 45º
Shaped blade to give minimum distortion
Features
  • Punching capacity up to 40mm standard
  • Power inching for easy job set up
  • Adjustable stroke for faster punching
  • Punch table and shear table both fitted with guides as standard
  • All work stations guarded
  • Most cutting blades are four-sided for long life
  • Adjustable length stop with rule
  • Four work stations
  • Fully-filtered hydraulic system
  • Telemecanique electrical components

  • Pre-Commissioning:
  • 1. Punch & Shear is run & tested prior delivery
  • 2. Hydraulic oil is included with machine
Includes
  • 6 sets of round punches & dies:
  • Punches: 20, 22, 24, 26, 28 & 30mmm
  • Dies: 20.7, 23.2, 25.2, 27.2, 29.2 & 31.2mmm
  • Full safety guarding at all workstations
  • 1 metre length stop for shear/crop stations
  • Tooling to all workstations
  • Punch, Shear & Notch support tables
Optional Accessories
  • Punch & dies are available in Round, Square, Rectangle & Oblong shapes


Product Brochure

Instruction Manual
12.95 MB
ISO9001-2008
95.22 KB
Punch and Shears Factory Brochure
5.99 MB
