OPTIMUMBF-20LV
Mill Drill - Geared & Tilting Head
  • 1 of 30
    M650
  • 2 of 30

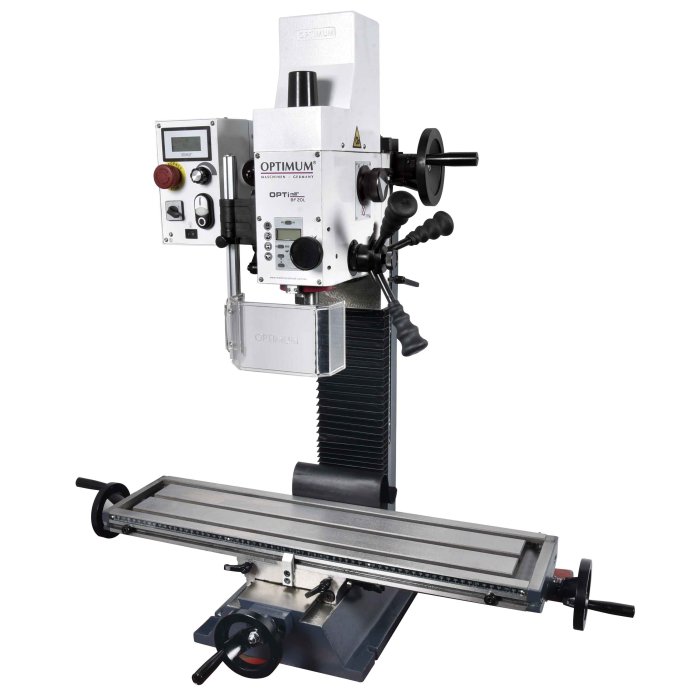

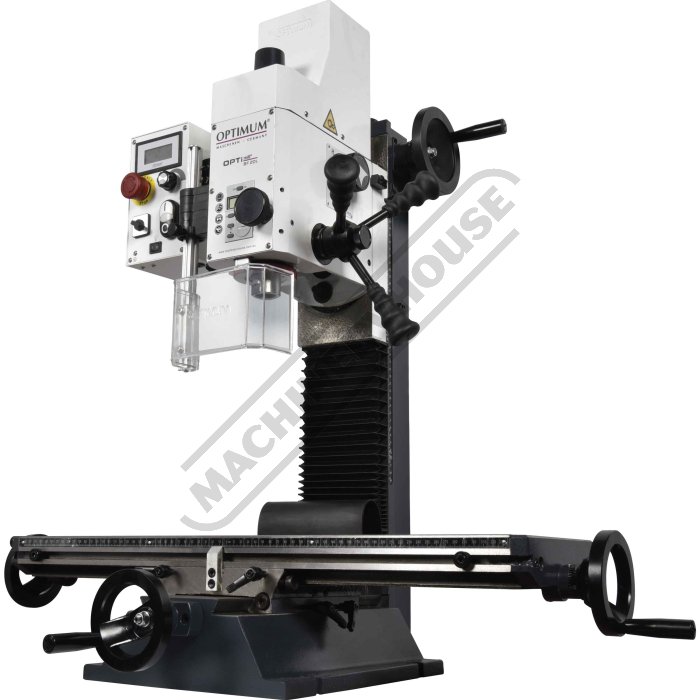

    Front View
  • 3 of 30

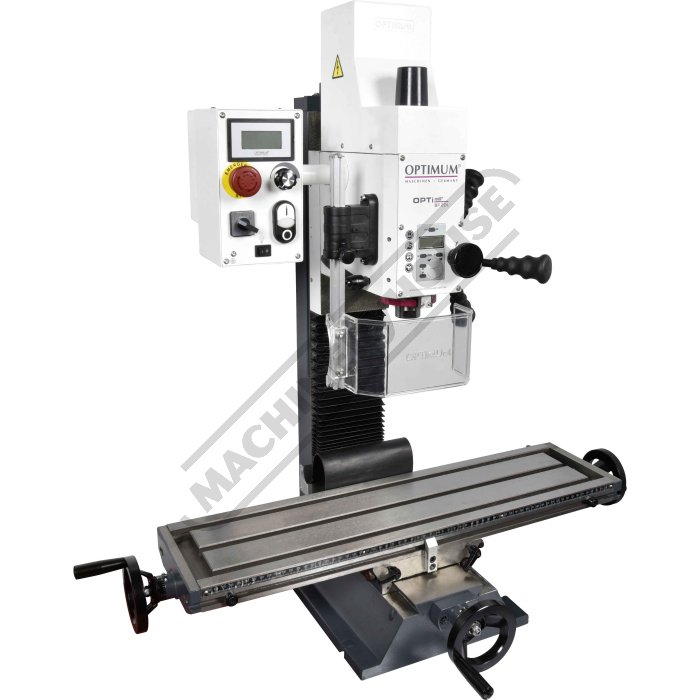

    Left View
  • 4 of 30

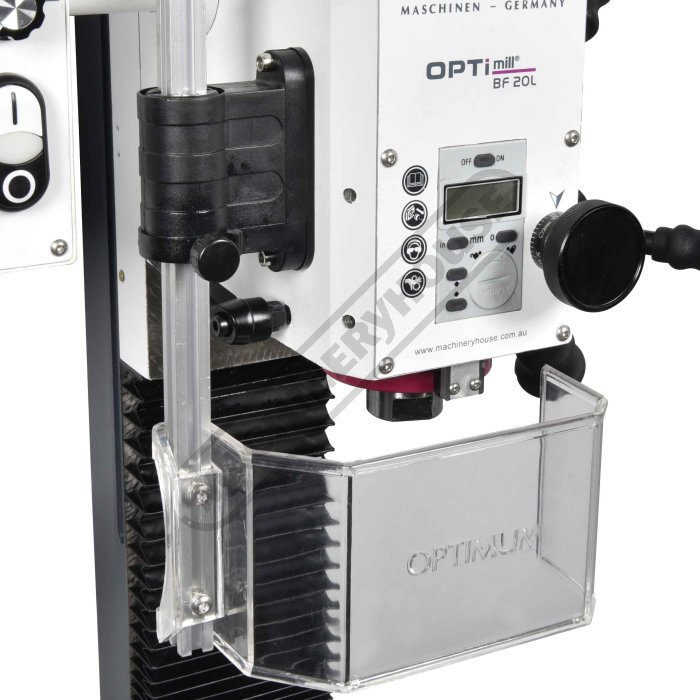

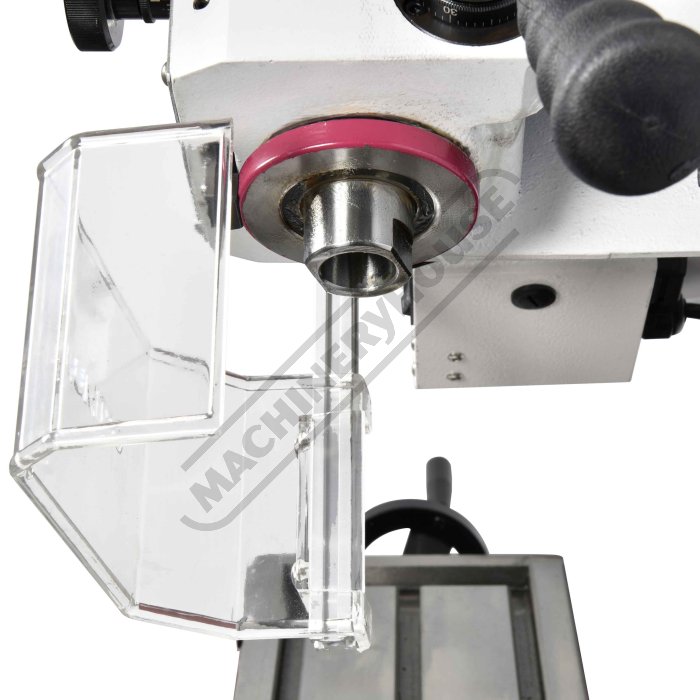

    Safety Cutter Guard
  • 5 of 30

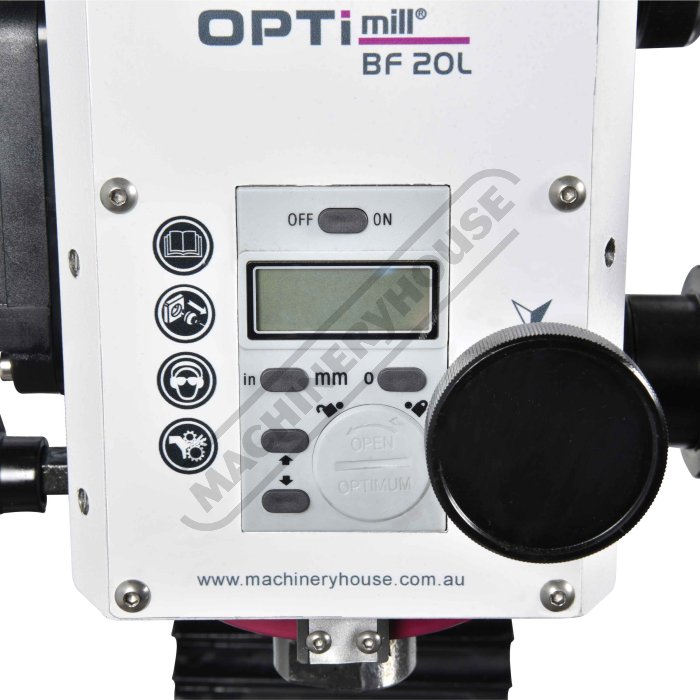

    Digital Readout For Quill Depth
  • 6 of 30

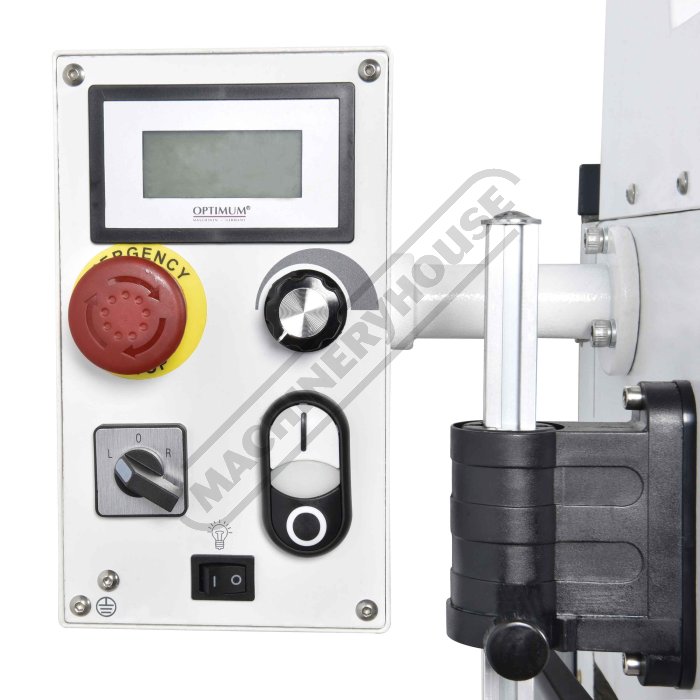

    Control Panel with Variable Speed & DRO Display
  • 7 of 30

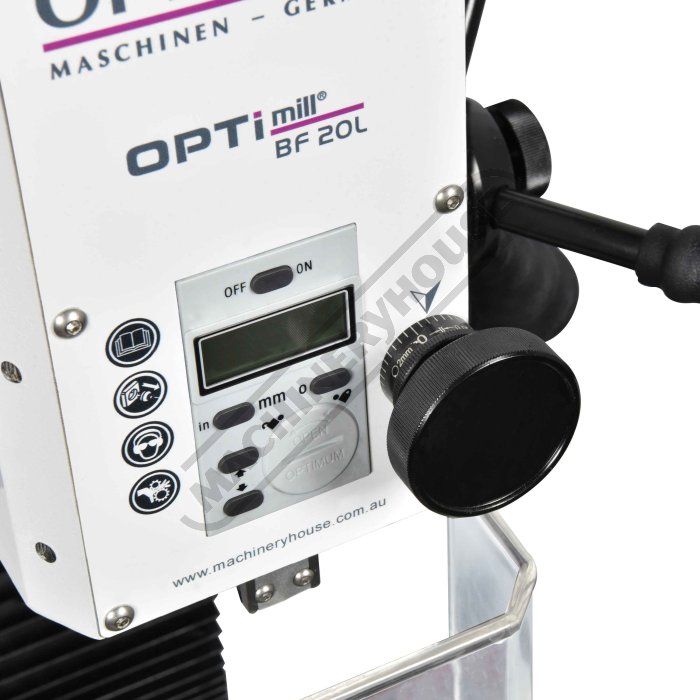

    Quill Fine Feed Adjustment
  • 8 of 30

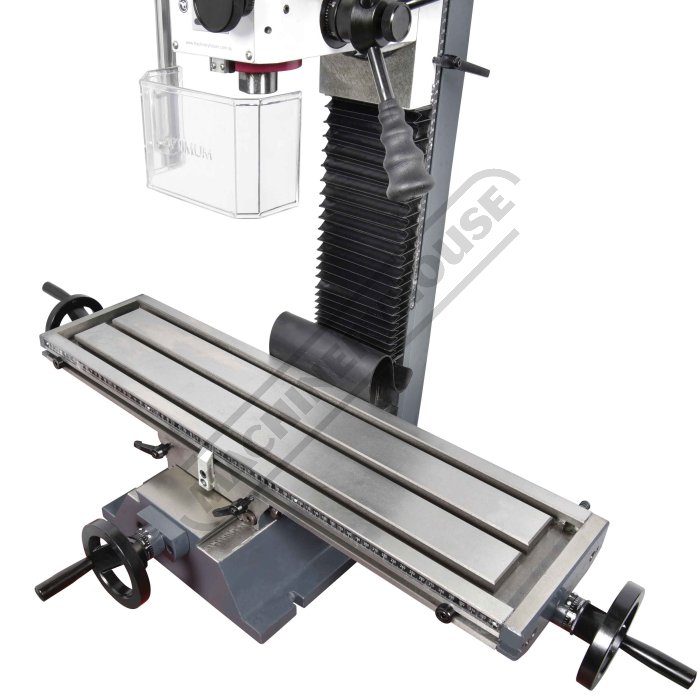

    Milling Table
  • 9 of 30

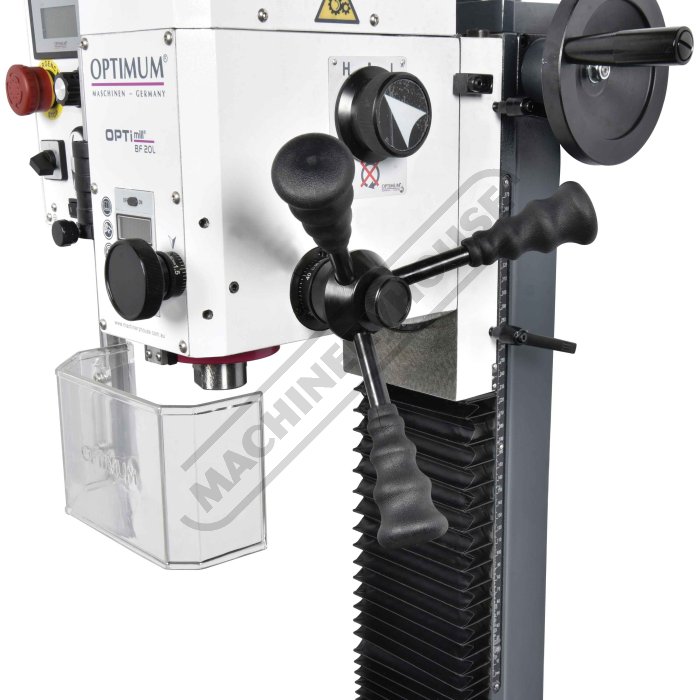

    Quill Handle
  • 10 of 30
    High / Low Geared Head Dial
  • 11 of 30

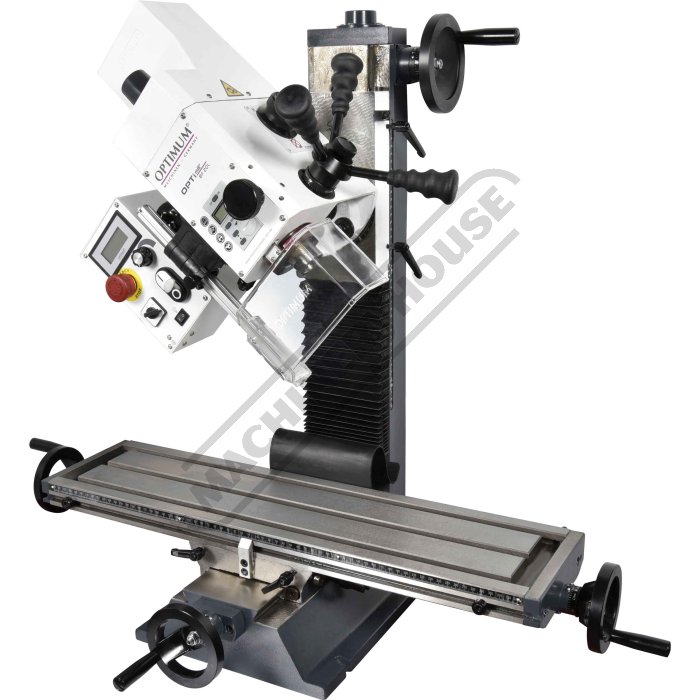

    Tilt Head Adjustment
  • 12 of 30

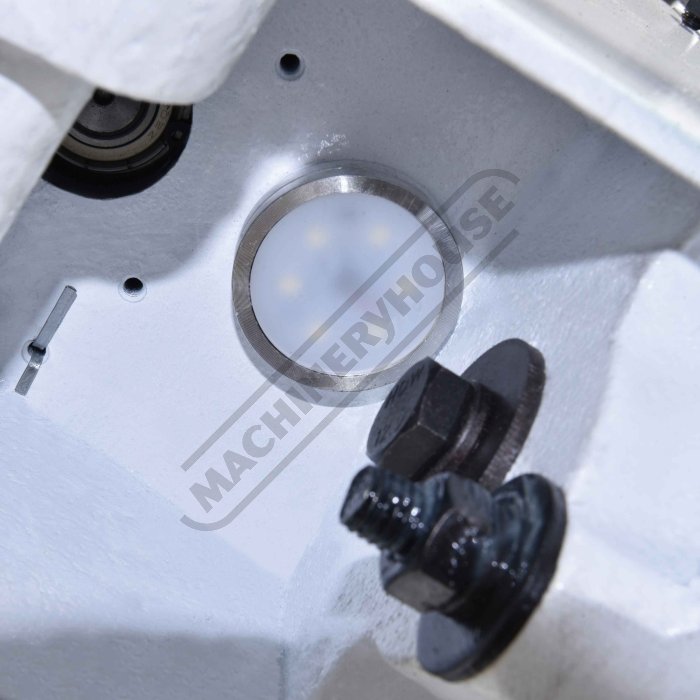

    Light
  • 13 of 30
    Vertical Axis Scale
  • 14 of 30
    Vertical Axis Height Adjustment
  • 15 of 30
    Table Longitudinal Handle
  • 16 of 30
    Table Cross Feed Handle
  • 17 of 30
    Table Limit Stop
  • 18 of 30
    Cross Slideway Cover
  • 19 of 30
    Vertical Slideway Cover
  • 20 of 30
    Drawbar
  • 21 of 30

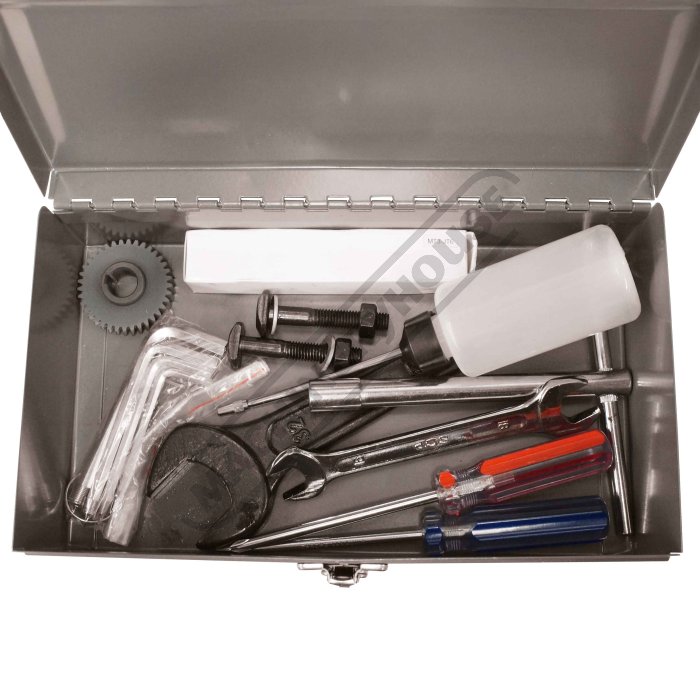

    Toolbox
  • 22 of 30
    Includes Bracket Kit for Optional DRO
  • 23 of 30

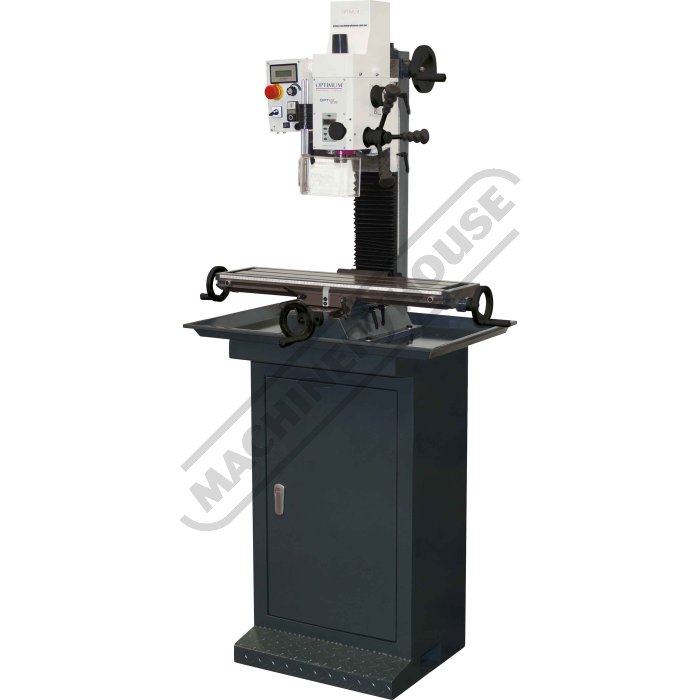

    Shown on Optional Stand M651
  • 24 of 30
    Tilting Head Shown with Optional Stand and DRO
  • 25 of 30
    Shown with Optional Stand and DRO
  • 26 of 30
    Left View with Optional Stand and DRO
  • 27 of 30
    Shown with Optional DRO Left Veiw
  • 28 of 30
    Optional Reader Head on Vertical Axis
  • 29 of 30
    Optional Cross Feed Reader Head
  • 30 of 30
    Optional Longitudinal Reader Head
Order Code: M650
BF-20LV - Mill Drill - Geared & Tilting Head (240V)
(X) 480mm (Y) 175mm (Z) 280mm
Electronic Variable Speeds & Dovetail Column
OPTIMUM
ORDER CODE
M650
MODEL
BF-20LV
Digital Readout
Optional
Type
Vertical
Table Size (mm)
700 x 180
Column Type
Dovetail
Spindle Taper - Vertical
3MT
Longitudinal Travel (X-Axis) (mm)
480
Cross Travel (Y-Axis) (mm)
175
Vertical Travel (Z-Axis) (mm)
280
Type of Slides
Dovetail
Spindle to Table (mm)
350
Quill Travel / Diameter (mm)
50 / 60
Throat Depth (max.) (mm)
185
Tilting Head (Left ~ Right)
±90º
Tilting Head (Forward ~ Back)
Fixed
Drilling Capacity (mm)
16
End Milling Capacity (mm)
20
Face Milling Capacity (mm)
63
Table T-Slot Size (inch / mm)
12
Work Table Load Capacity (kg)
40
Spindle Speeds Vertical (No./ rpm)
Variable (90 - 3000)
Motor Power - Vertical (kW / hp)
0.85 / 1.13
Voltage / Amperage (V / amp)
240 / 10
Nett Weight (kg)
162
Description
Excellent quality mill drill machine designed for the model engineer
Features
  • Electronic infinitely variable speed
  • 3MT spindle taper
  • Dovetail vertical Z-Axis
  • Digital readout speed display
  • Work light mounted underneath mill head
  • Digital depth display with zero reset for quill
  • Tilting head to ± 90° from vertical
  • 2 speed gearbox (high / low) drive
  • Forward and reverse spindle switch
  • Scale collars for all Axis are adjustable
  • Adjustable dovetail slideways on all 3 axis
  • 700 x 180mm cast iron table with T-slots
  • Adjustable table and drill length stops
  • Rear slideway covers and slide clamps on all axis
  • Metric dial graduations on X & Y-Axis


Includes
  • 3MT x JT6 drill chuck arbor
  • Safety cutter guard
  • Work light
  • Bracket kit for optional digital readout
