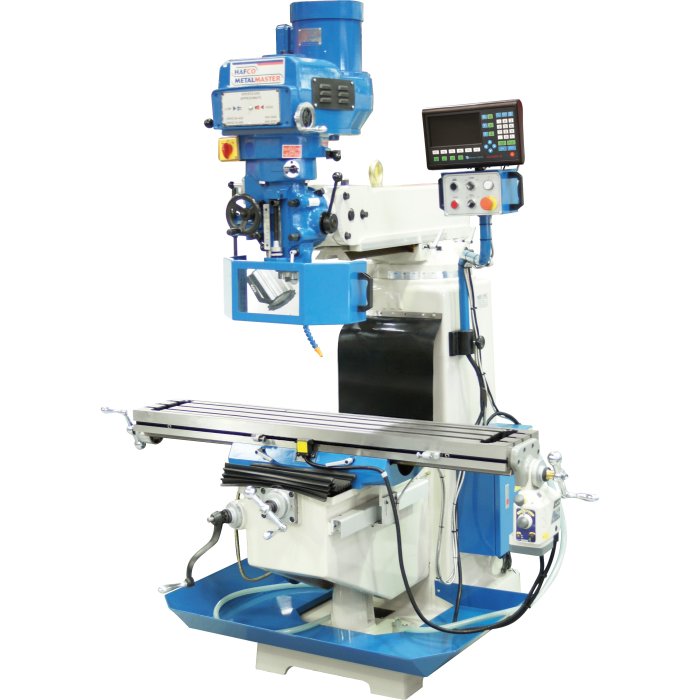

HAFCO METALMASTERBM-40V
Turret Milling Machine
  • 1 of 25
    M607D
  • 2 of 25

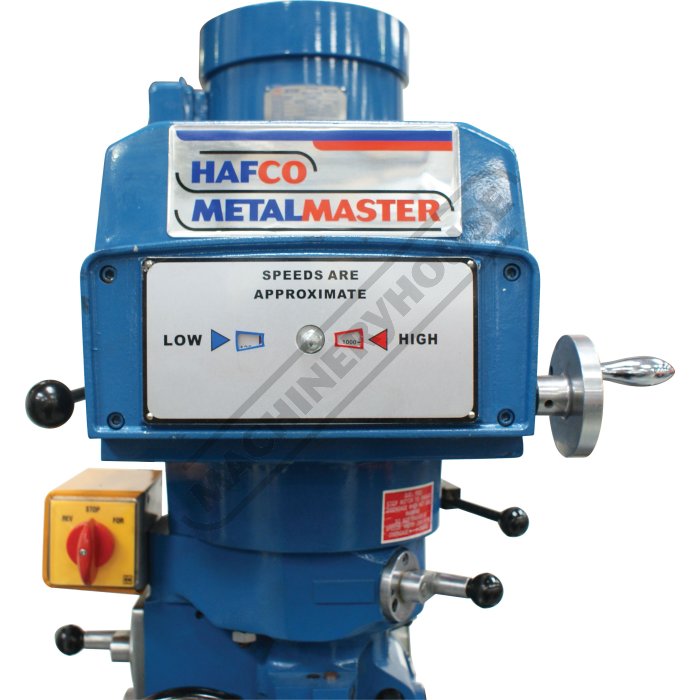

    Variable Speed Head 70 3500rpm
  • 3 of 25

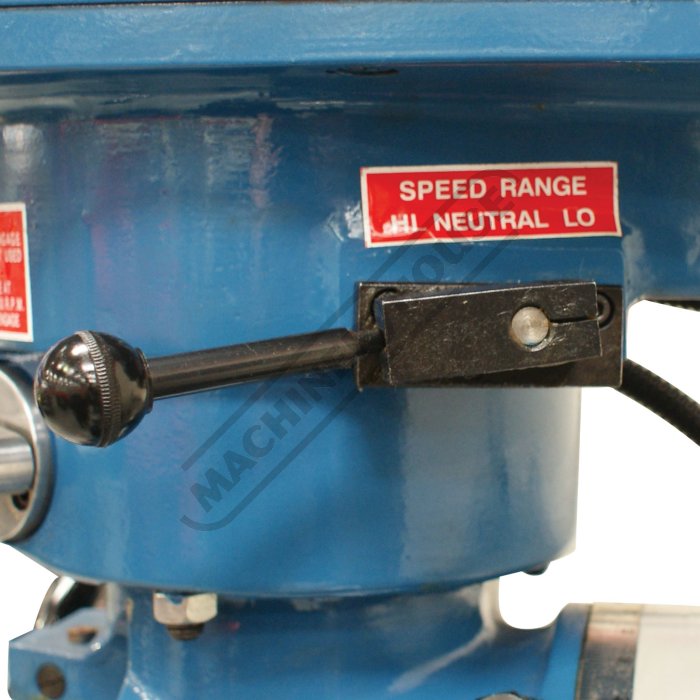

    Hi Low Spindle Speed Range Selector
  • 4 of 25

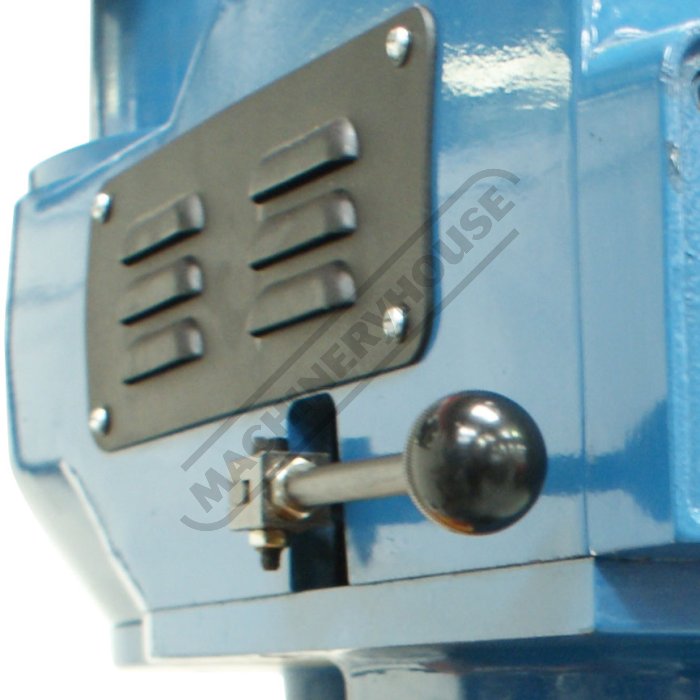

    Spindle Brake
  • 5 of 25

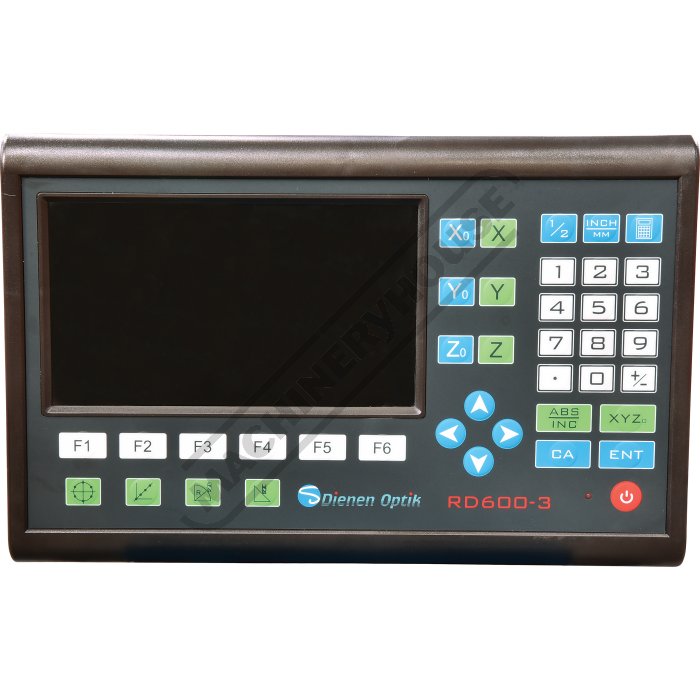

    3 Axis Digital Readout System
  • 6 of 25

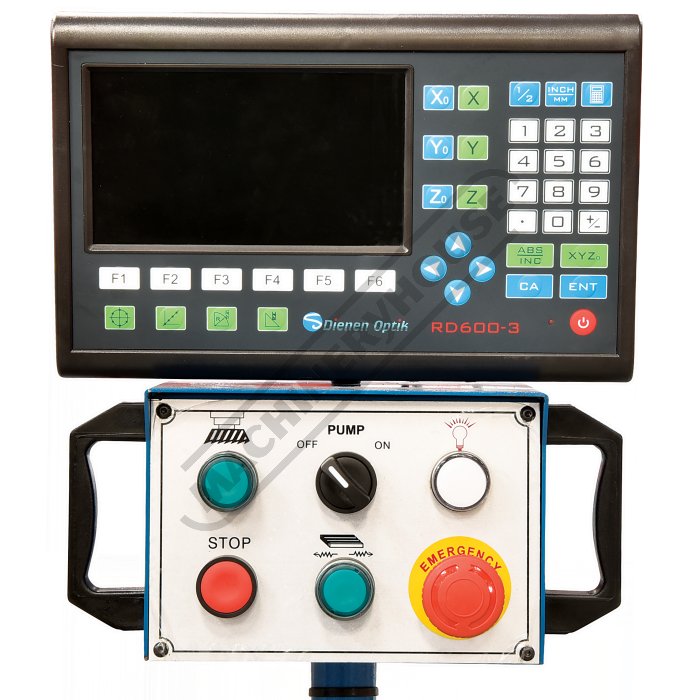

    Control Panel
  • 7 of 25

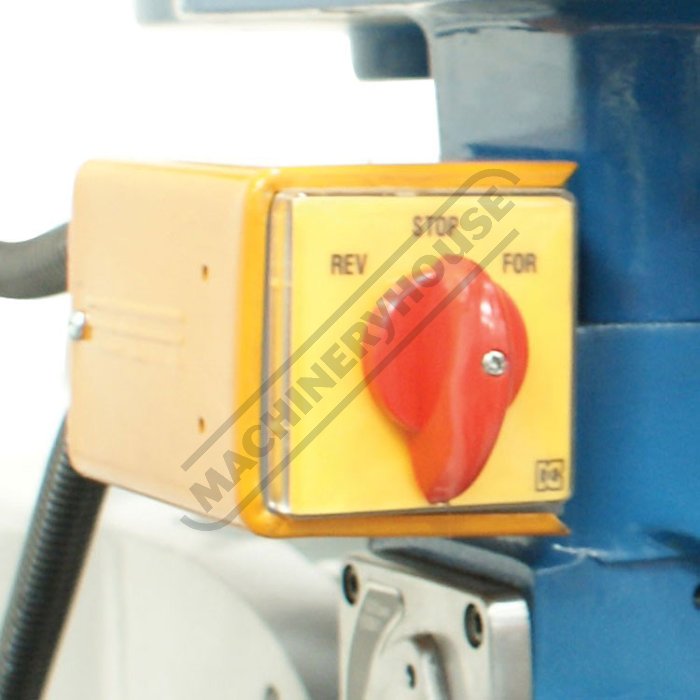

    Forward Reverse Switch
  • 8 of 25

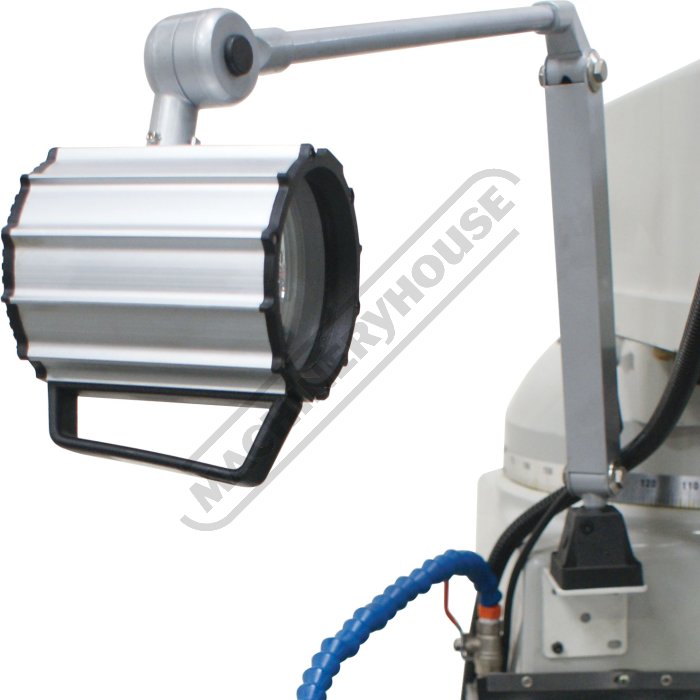

    Halogen Light
  • 9 of 25

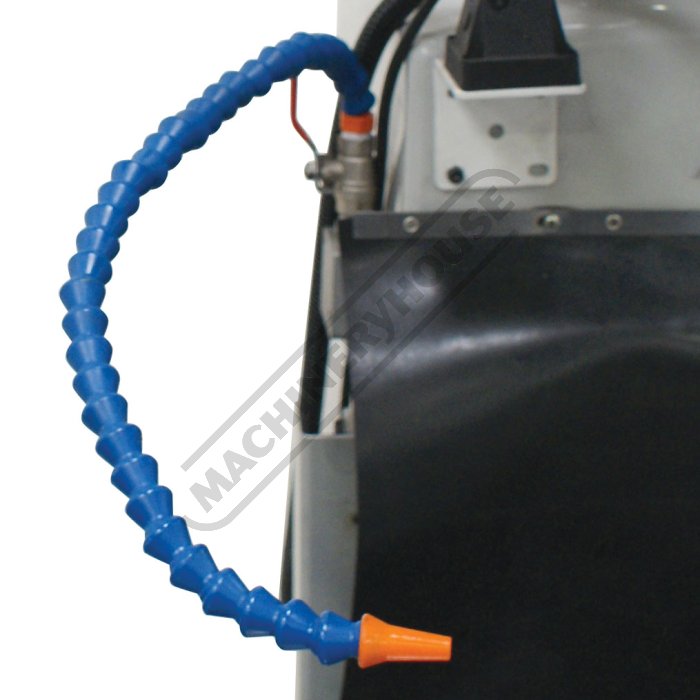

    Coolant Nozzel
  • 10 of 25

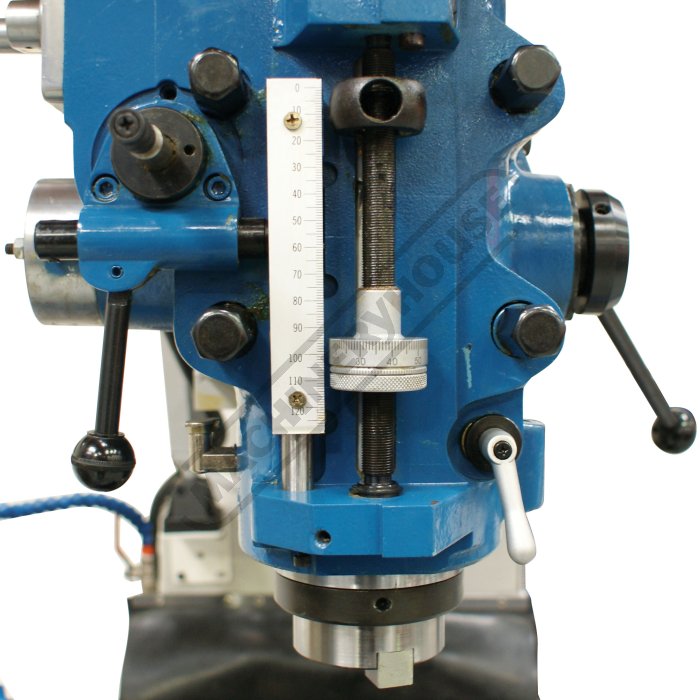

    Quill Feed Depth Stop
  • 11 of 25

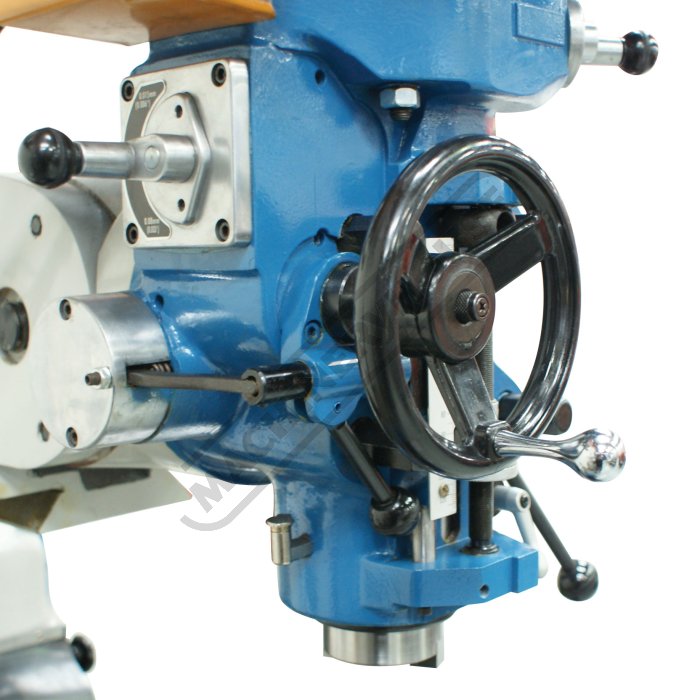

    Quill Feed Engagement Lever
  • 12 of 25

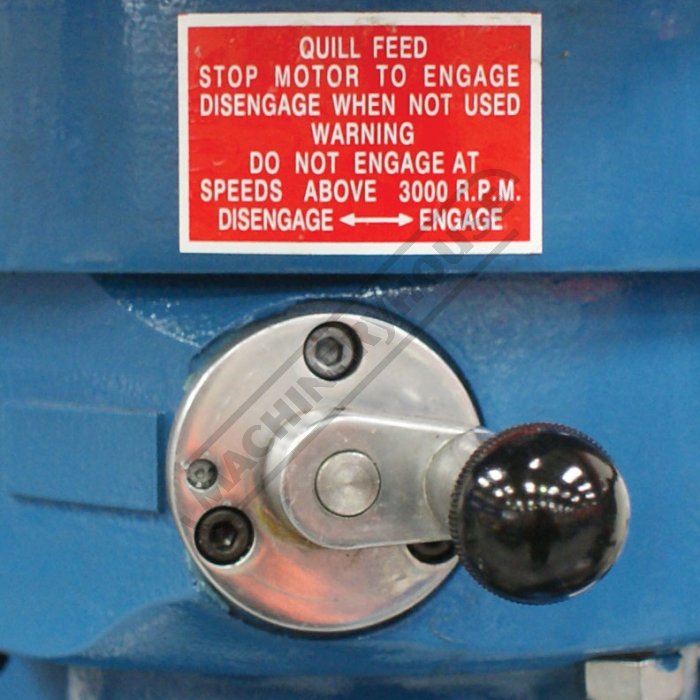

    Feed Engage Disengage Drive
  • 13 of 25

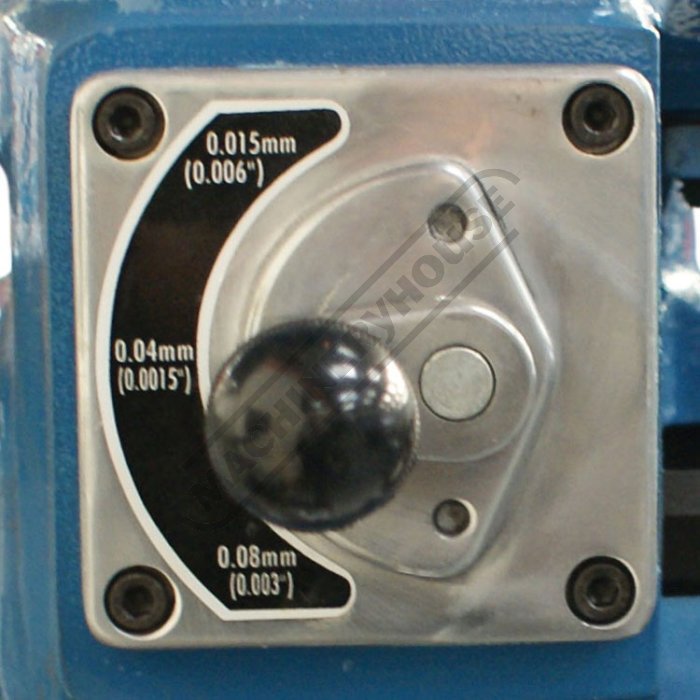

    Feed Selector
  • 14 of 25

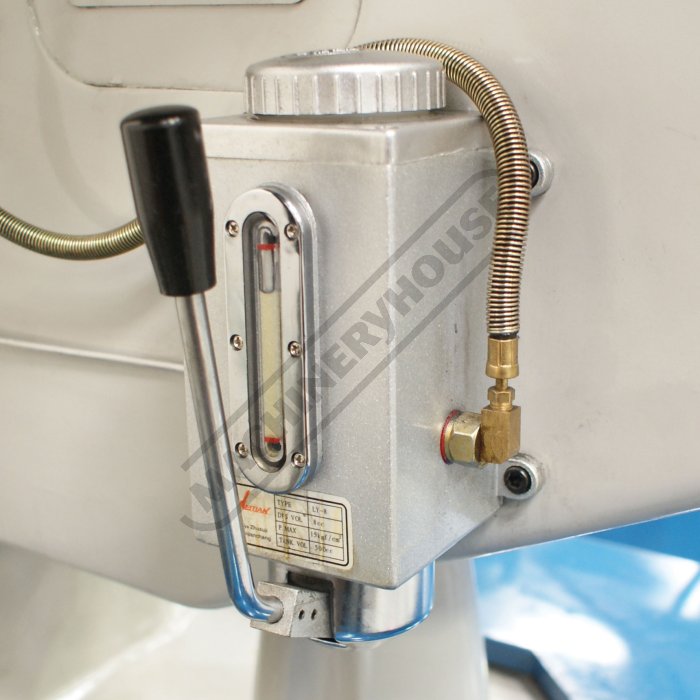

    Lubrication Pump
  • 15 of 25

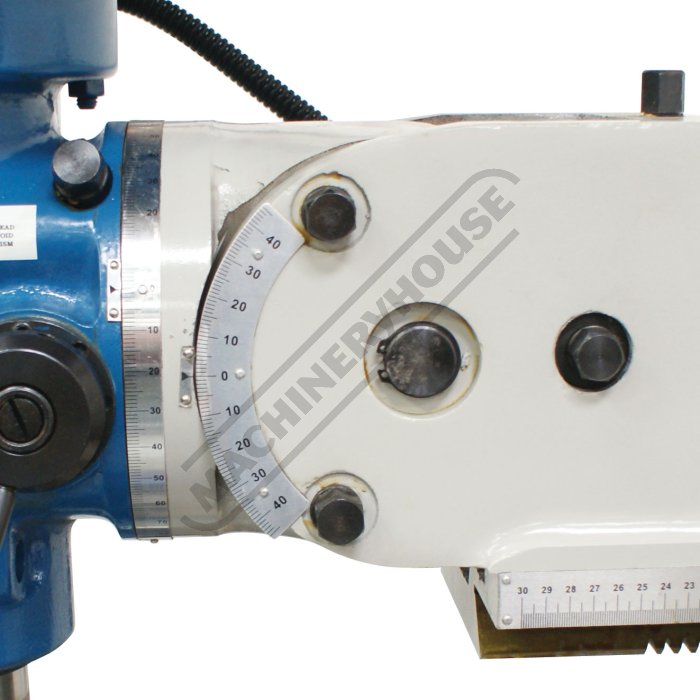

    Universal Tilting and Rotating Head
  • 16 of 25

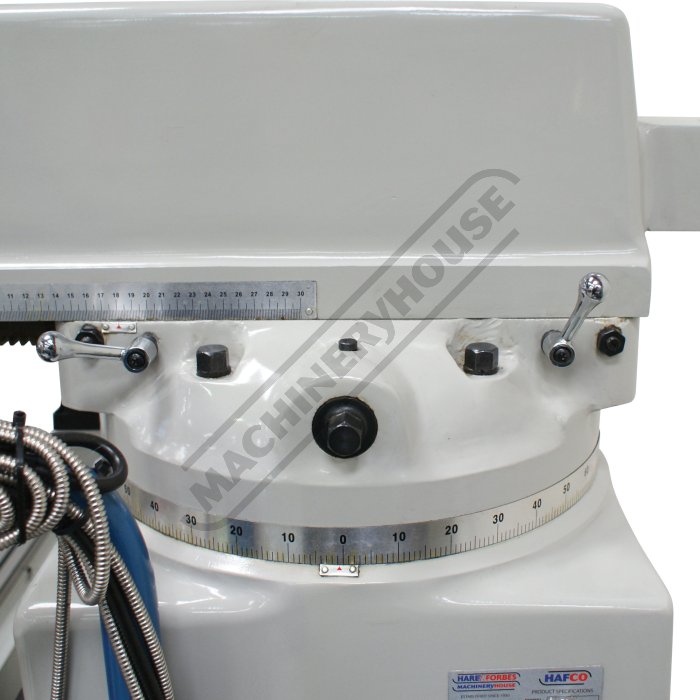

    Adjustable Swivel & Sliding Ram
  • 17 of 25

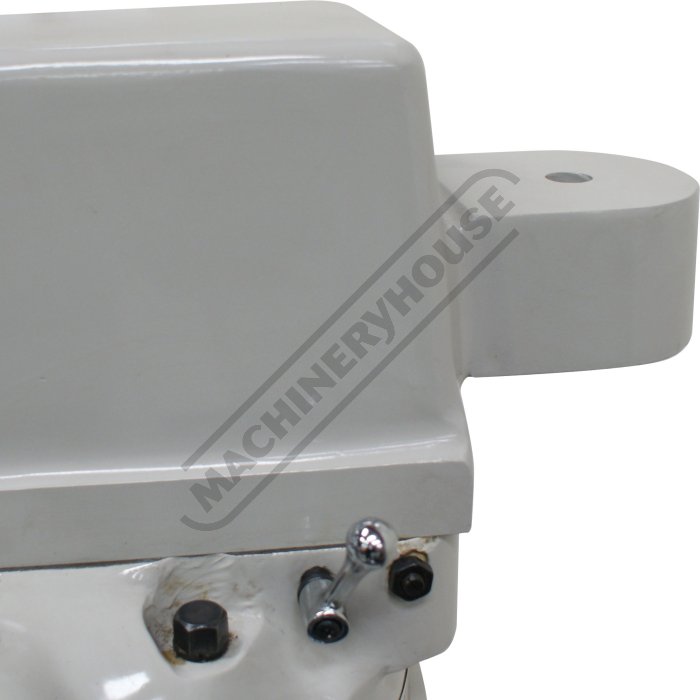

    Tail Lug Spigot Supports Slotting Head
  • 18 of 25

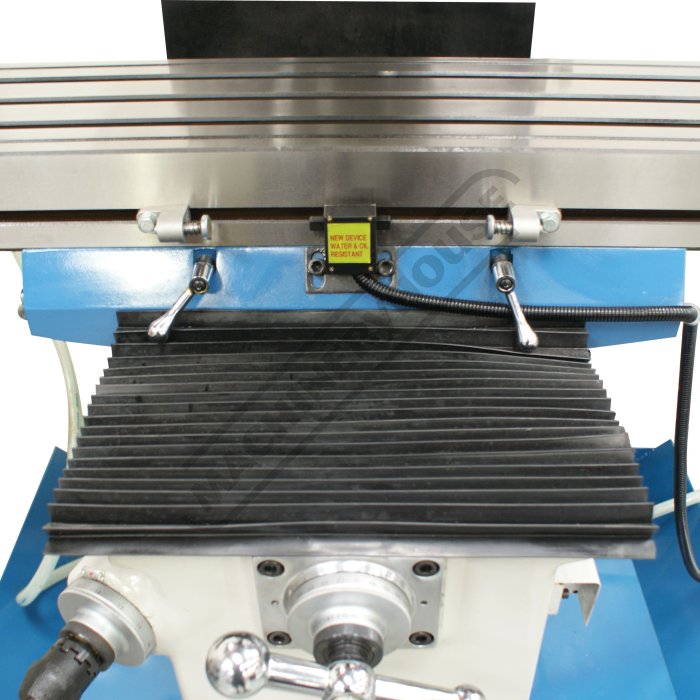

    Concertina Slide Way Cover
  • 19 of 25

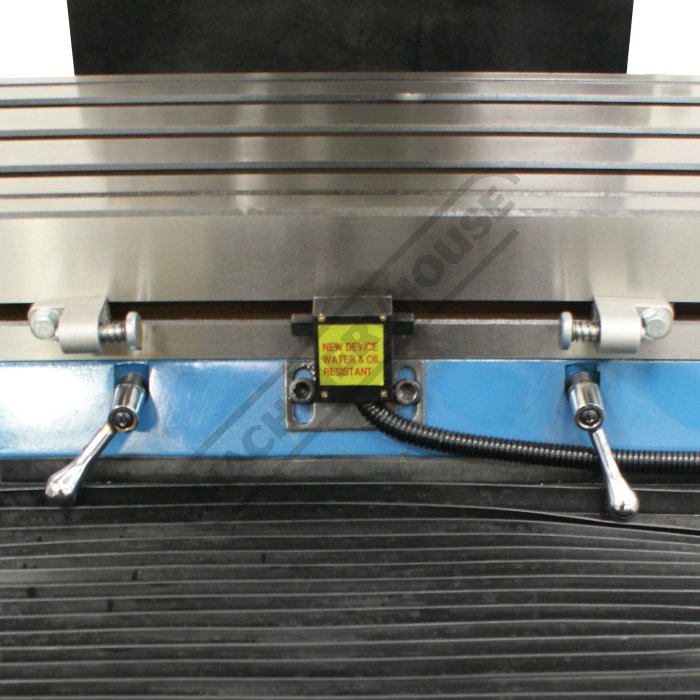

    Table Feed Limit Switches
  • 20 of 25

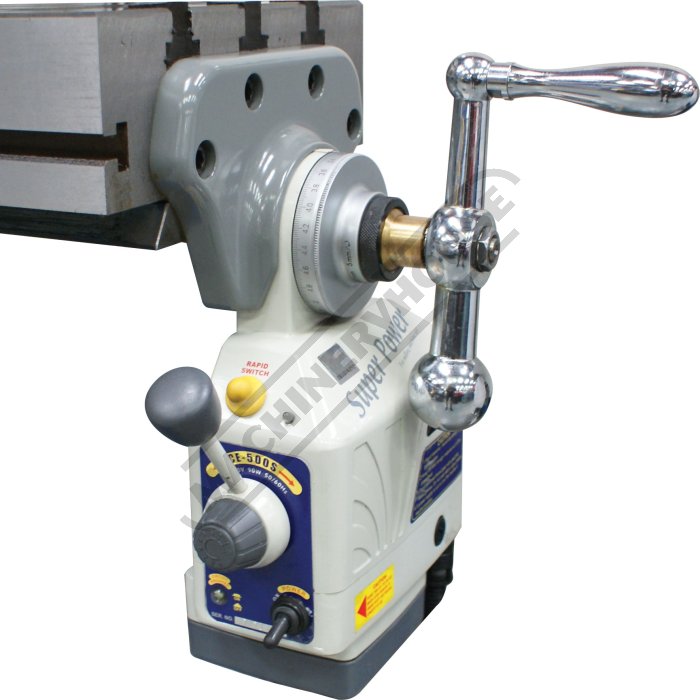

    X Axis Power Feed with Rapid
  • 21 of 25

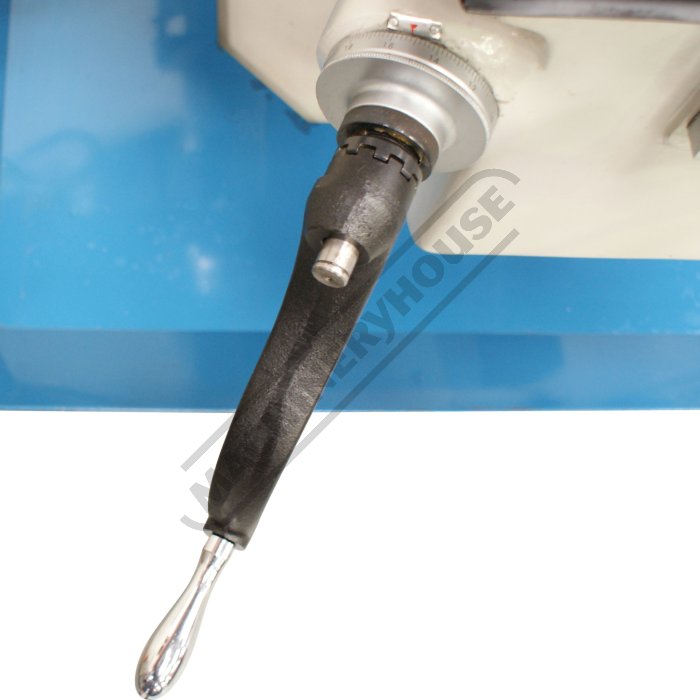

    Knee Feed Handle
  • 22 of 25

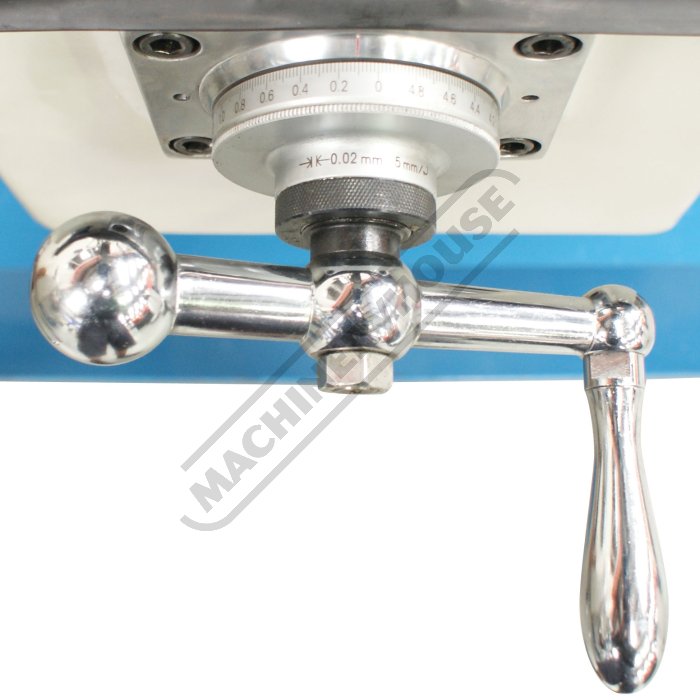

    Cross Feed Handle
  • 23 of 25

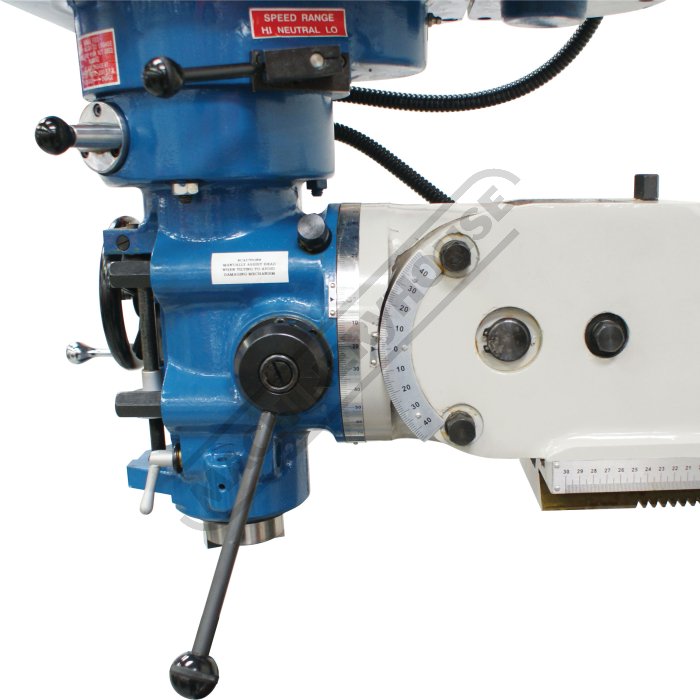

    Head Side View
  • 24 of 25

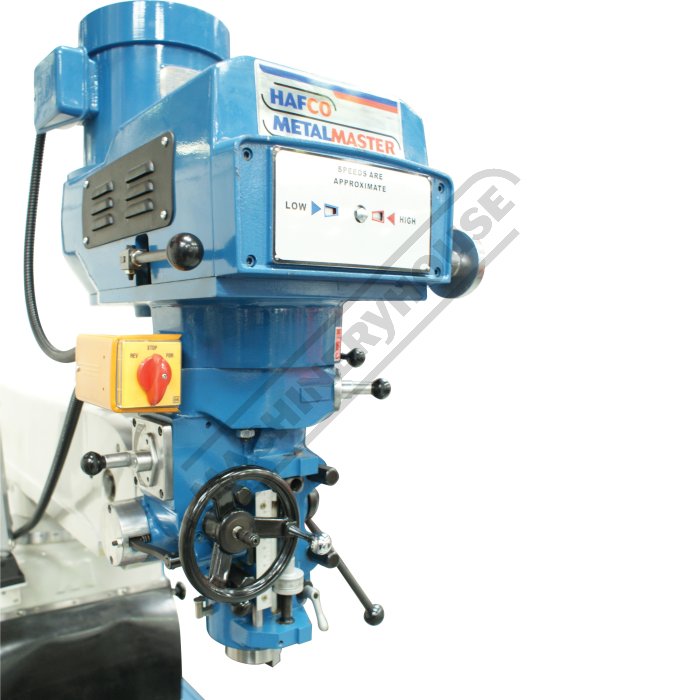

    Head Controls
  • 25 of 25

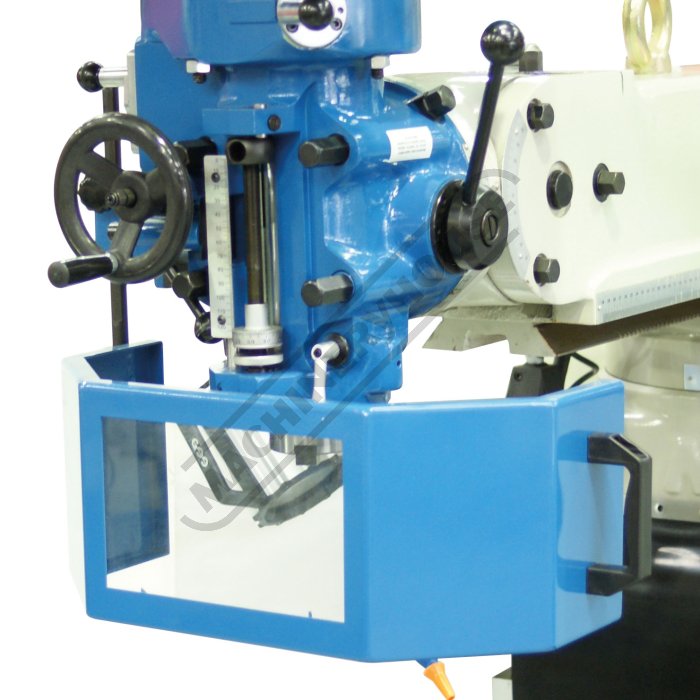

    Safety Quill Guard
Order Code: M607D
BM-40V - Turret Milling Machine (415V)
(X) 860mm (Y) 360mm (Z) 425mm
Includes Digital Readout, Vice & Clamp Kit
HAFCO METALMASTER
ORDER CODE
M607D
Model
BM-40V
Digital Readout
3-Axis Digital Readout
Type
Vertical
Table Size
1370 x 254mm
Spindle Taper - Vertical
NT30
Longitudinal Travel (X-Axis)
860mm
Cross Travel (Y-Axis)
360mm
Vertical Travel (Z-Axis)
425mm
Type of Slides
Dovetail
Ram Travel
508mm
Spindle to Table
505mm
Quill Travel / Diameter
127mm / 86mm
Throat Depth (max.)
735mm
Tilting Head (Left ~ Right)
±90º
Tilting Head (Forward ~ Back)
±45º
Power Feed - Quill
0.015, 0.04, 0.08mm/rev
Power Feed - Longitudinal (X-Axis)
20 - 2000 mm/min
Power Feed - Cross (Y-Axis)
Optional
Power Feed - Vertical (Z-Axis)
Optional
Table T-Slot Size
5/8"
Work Table Load Capacity
300kg
Spindle Speeds Vertical (steps/rpm)
Variable (70-3500rpm)
Motor Power - Vertical
2.2kW / 3hp
Motor Voltage
415V
Overall Height
2184mm
Weight (nett)
1300kg
Description
Manufactured in Taiwan
Features
  • 3 Axis digital readout fitted
  • 3HP 415V motor, dial variable speed system (BM-40V)
  • NT30 spindle taper with a chrome & ground quill
  • Hardened & ground work table & slide-ways
  • Turcite "B" coated X & Y Axis slide-ways reduces friction for smooth operation
  • All slides utilise dovetail construction for maximum rigidity
  • Meehanite casting for high strength & minimal deformation
  • Quality electrics & overload protection in an easy access enclosure
  • Horizontal travelling ram mounted on a rotating base allowing repositioning of spindle
  • The ram incorporates a tail lug (spigot) to accept a slotting attachment etc.
  • High / neutral and low gear selection lever to maximise torque
  • Align AL-500S X-Axis power-feed with adjustable micro switch feed stops
  • Coolant system, halogen light, 150mm machine vice & swarf tray
  • Metric dial graduations @ 0.02mm for X , Y & Z-Axis
  • Automatic quill feed 0.015, 0.04, 0.08mm/rev
  • Automatic cut off depth stop on quill
  • Oil lubrication pump and reservoir
  • Slide-way covers Y & Z-Axis
  • Mill head tilts to ±45º forward and back
  • Mill head tilts to ±90º left and right
  • Manual quick action quill lever
  • Mechanical spindle brake
  • Tool box and manual
Includes
  • 3-Axis digital readout fitted
  • One-shot oil lubrication pump and reservoir
  • Drawbar M12 thread
  • Coolant system
  • Slide-way covers
  • X-Axis power-feed
  • Halogen light
  • Machine vice (150mm)
  • Clamp kit
  • Safety cutter guard
  • Swarf tray
