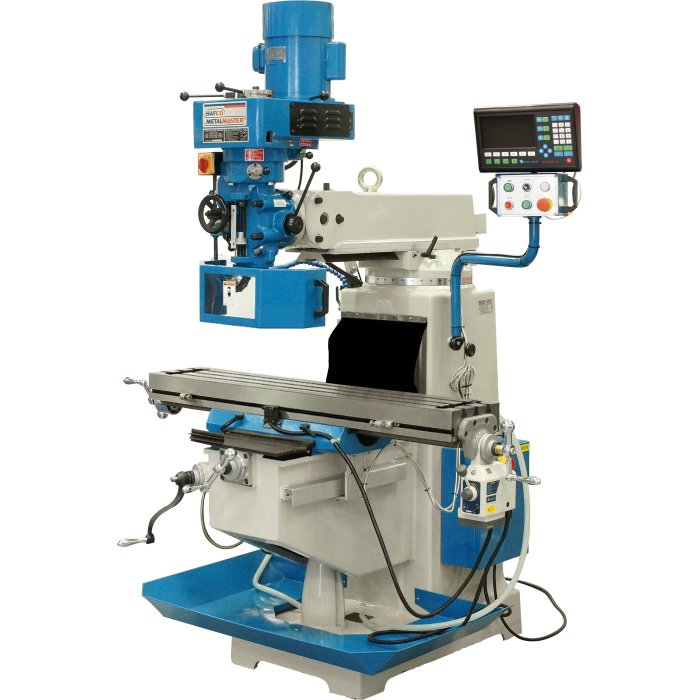

HAFCO METALMASTERBM-30A
Turret Milling Machine
  • 1 of 27
    M603D
  • 2 of 27

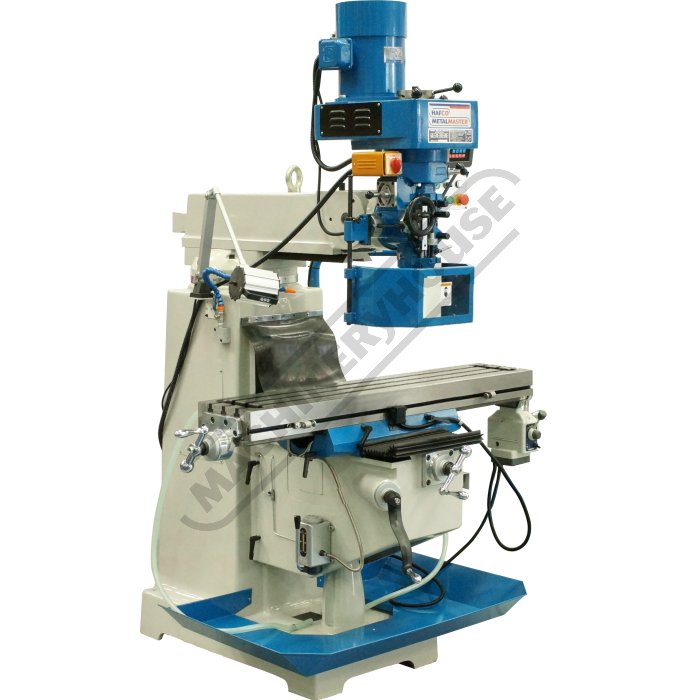

    Left View
  • 3 of 27

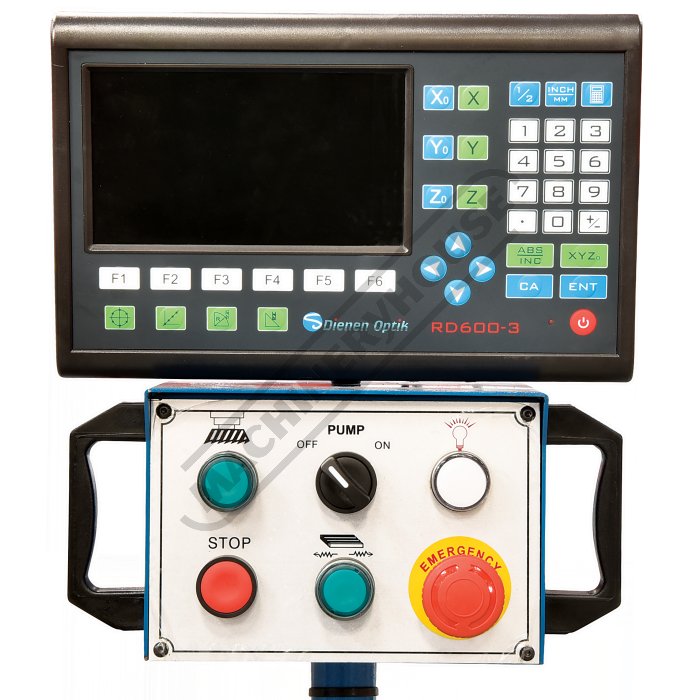

    Control Panel
  • 4 of 27

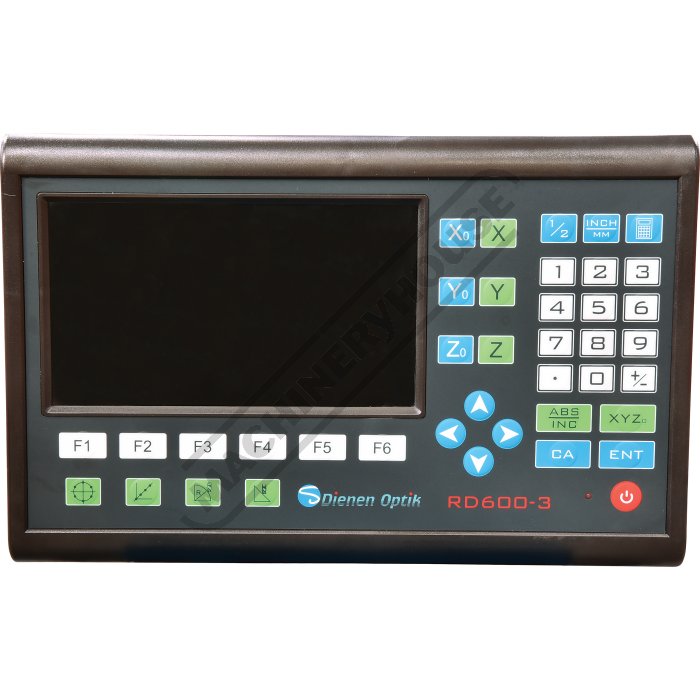

    3 Axis Digital Readout System
  • 5 of 27

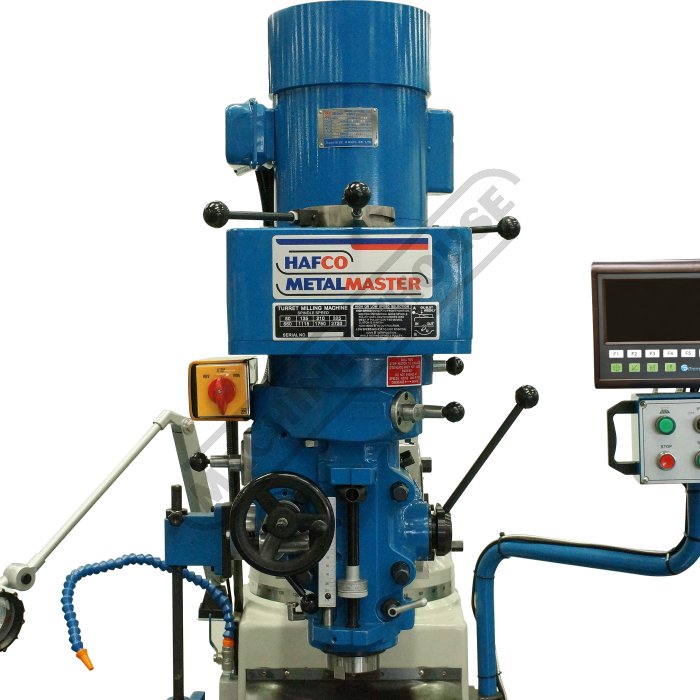

    Head Controls
  • 6 of 27

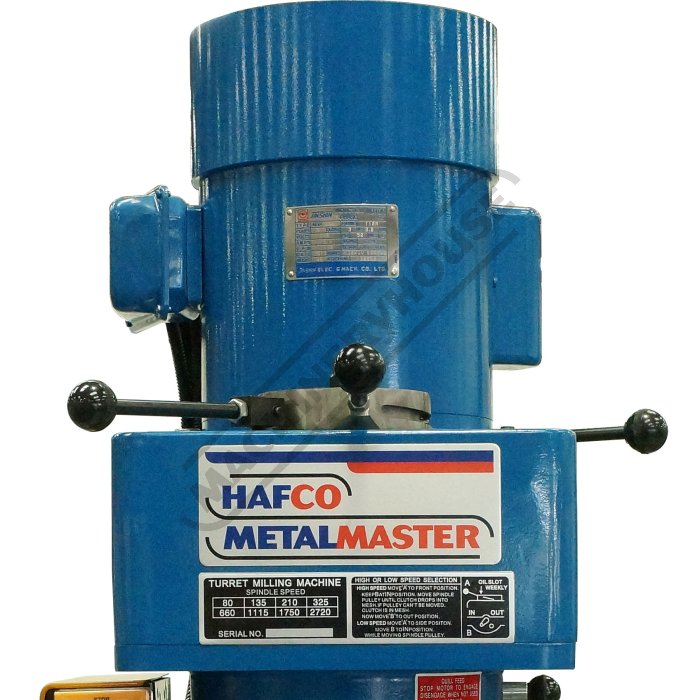

    Spindle Brake Lever

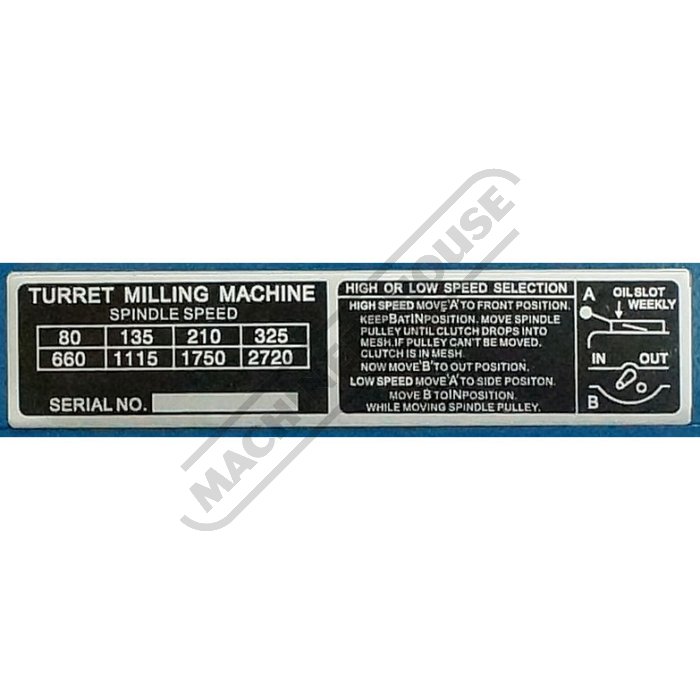

  • 7 of 27
    Speed Chart

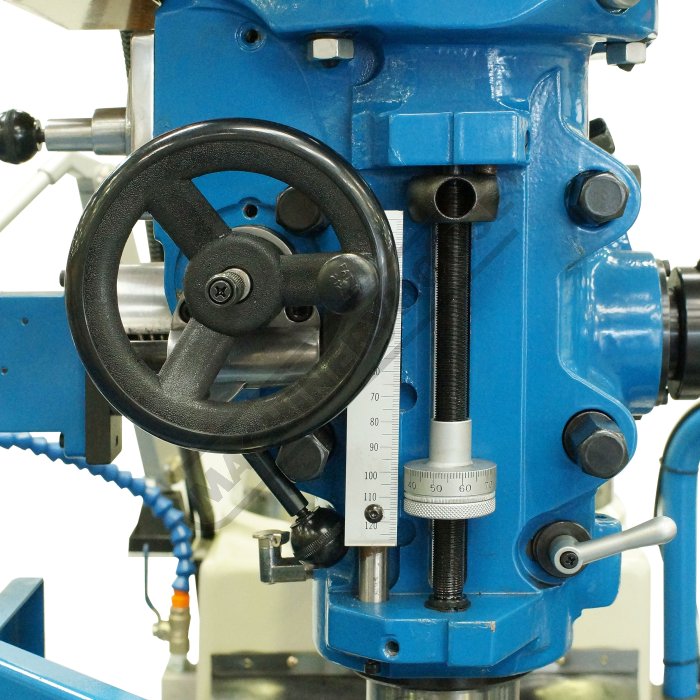

  • 8 of 27
    Quill Feed Depth Stop
  • 9 of 27

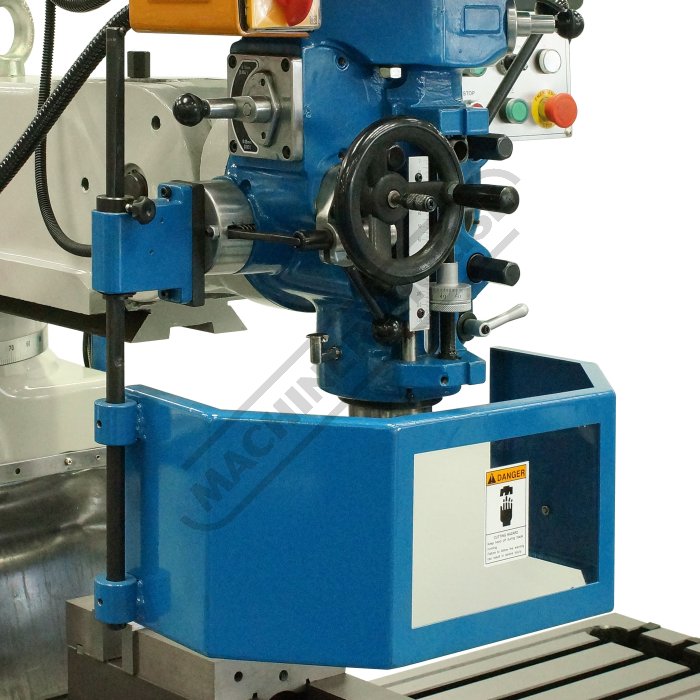

    Safety Chuck Guard
  • 10 of 27

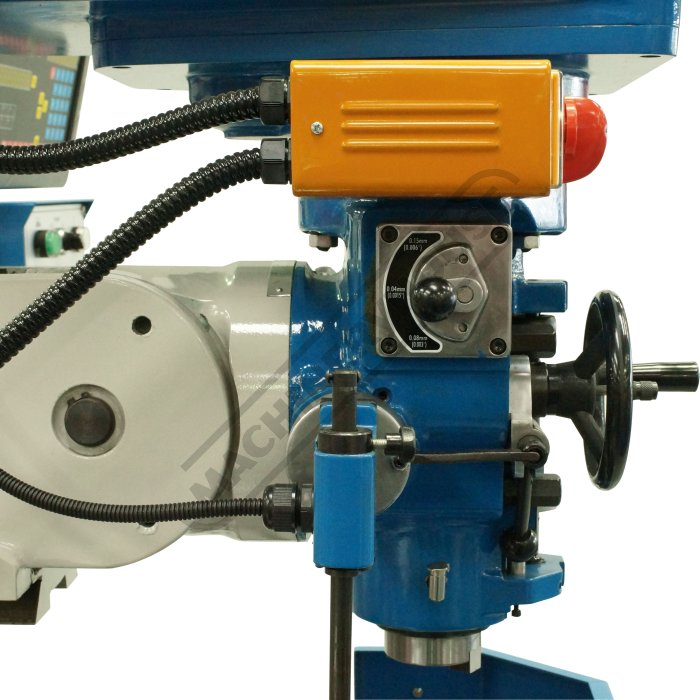

    Head Left Side View
  • 11 of 27

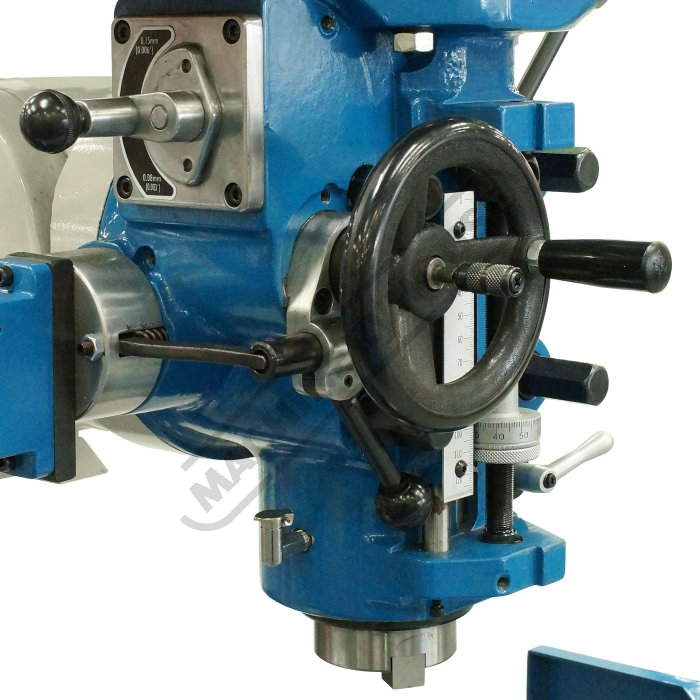

    Quill Feed Engagement Lever

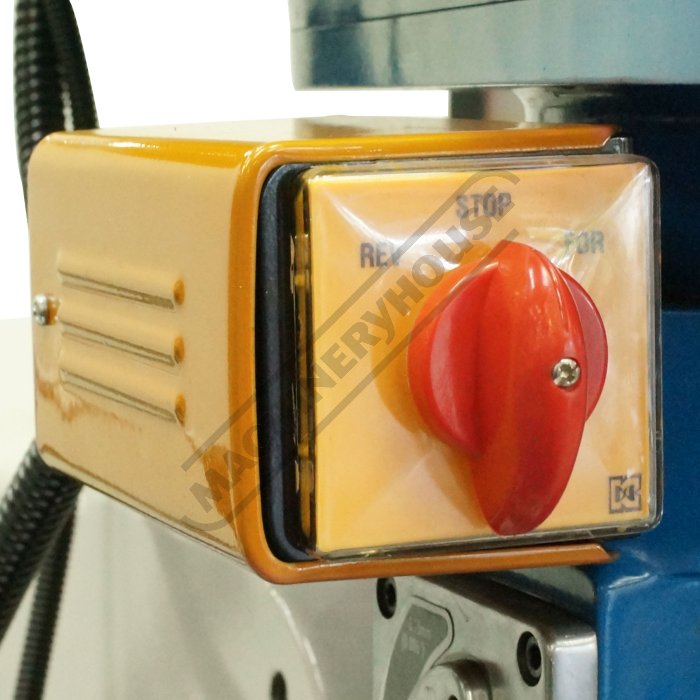

  • 12 of 27
    Spindle Foward Reverse Switch
  • 13 of 27

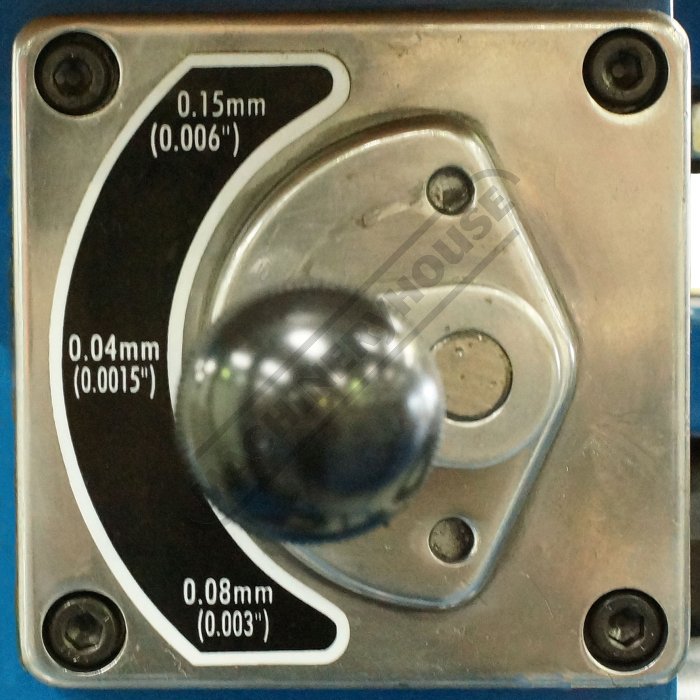

    Feed Range Selector
  • 14 of 27

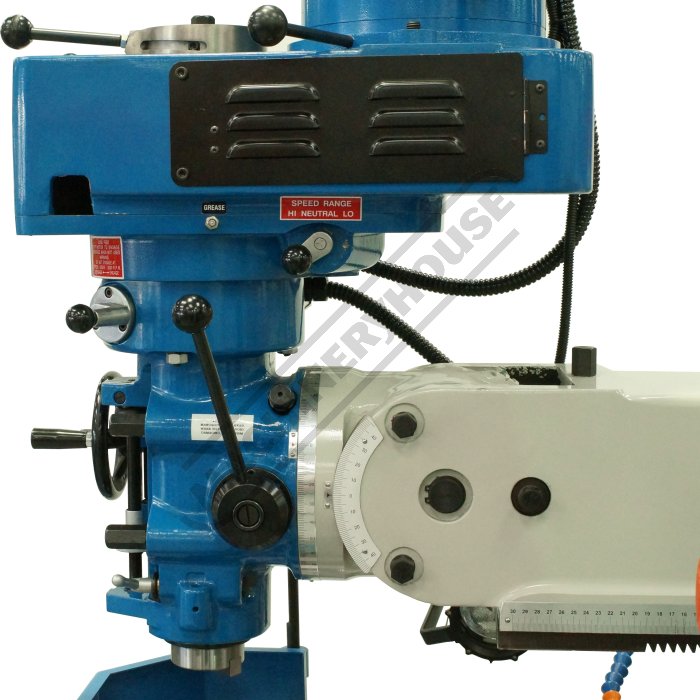

    Head Right Side View

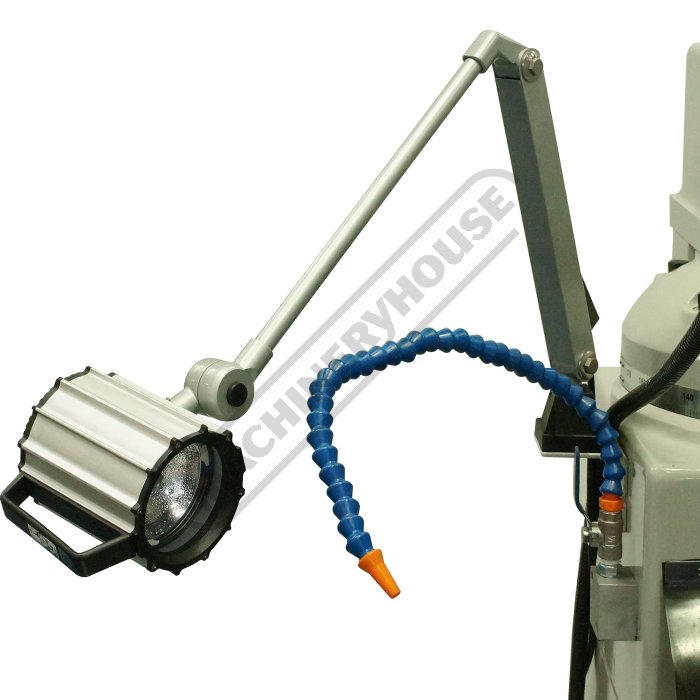

  • 15 of 27
    Halogen Worklight and Coolant Hose
  • 16 of 27

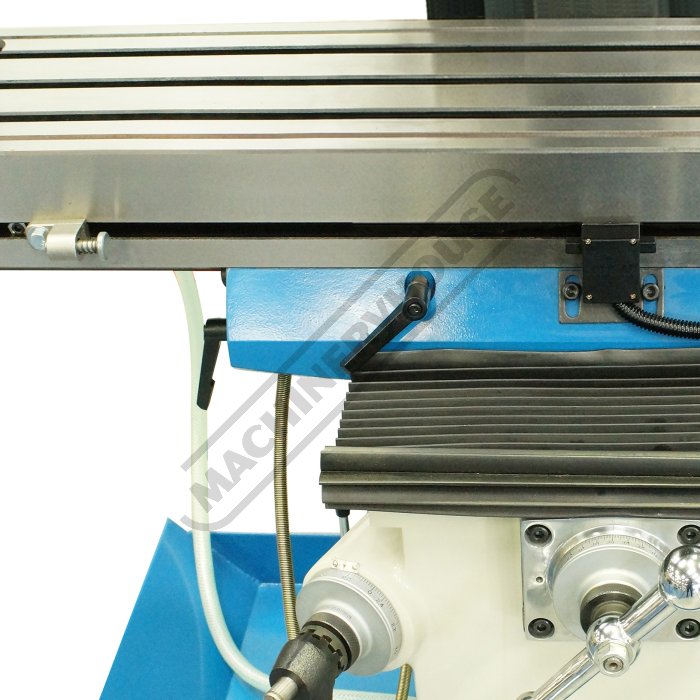

    Table Feed Limit Switches
  • 17 of 27

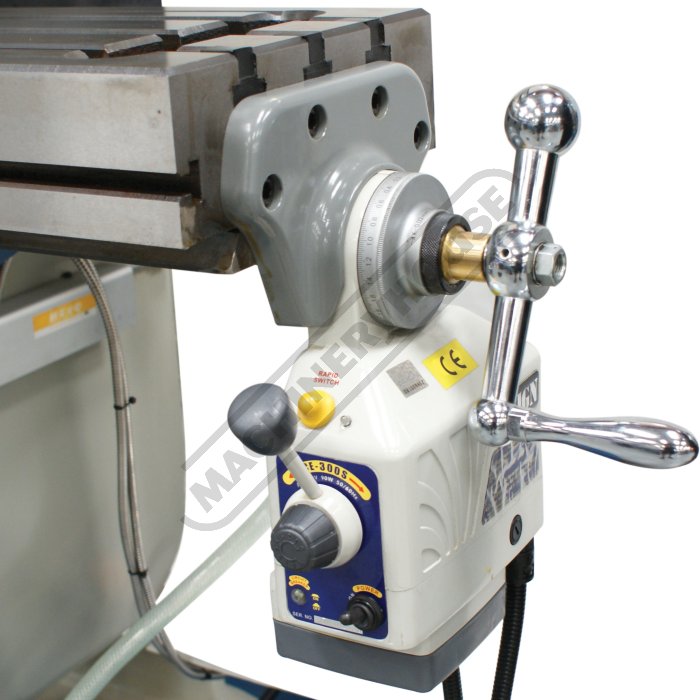

    X Axis Power Feed with Rapid
  • 18 of 27

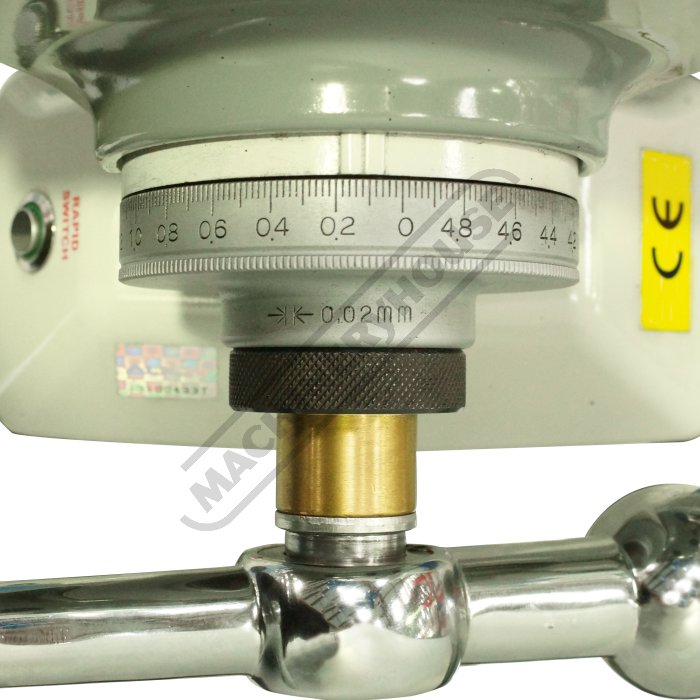

    X Axis Dial
  • 19 of 27

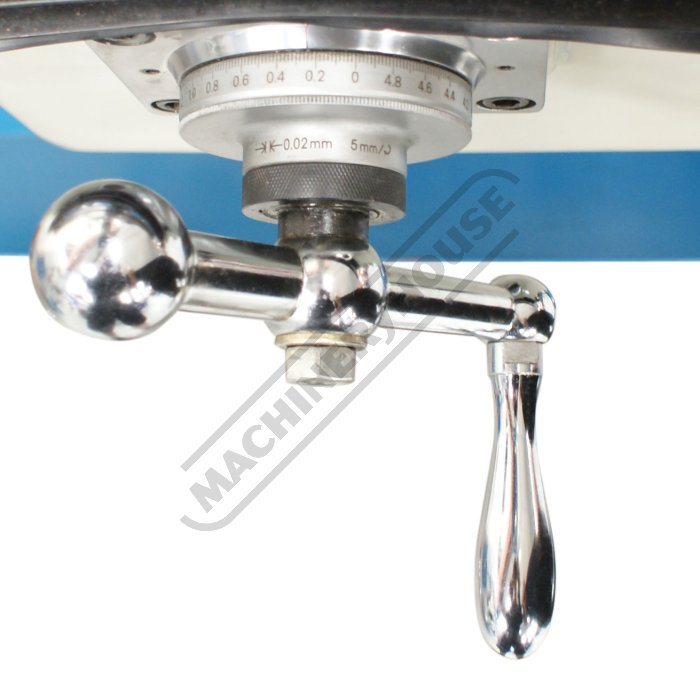

    Y Axis Handle
  • 20 of 27

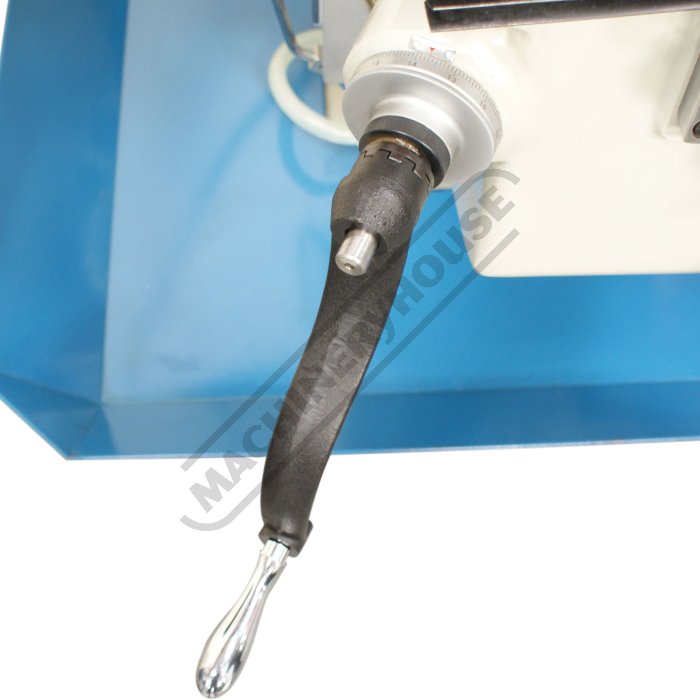

    Knee Feed Handle

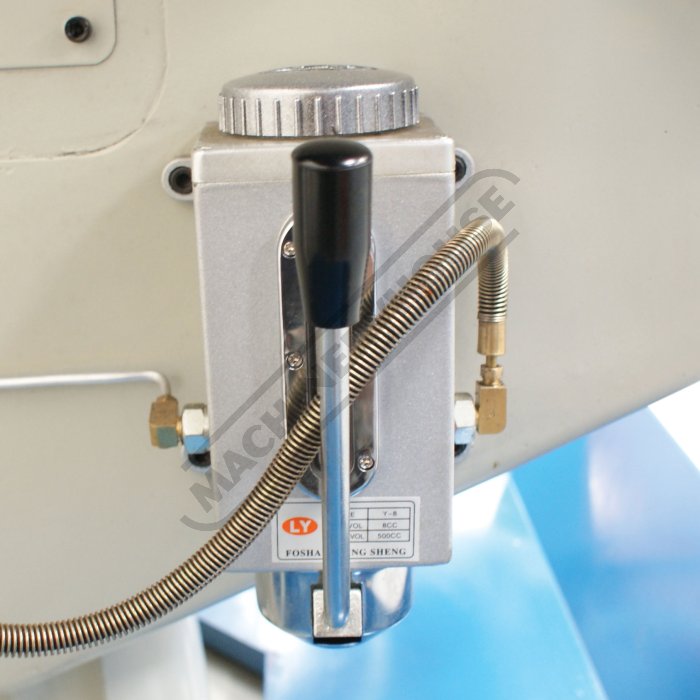

  • 21 of 27
    Lubrication Pump

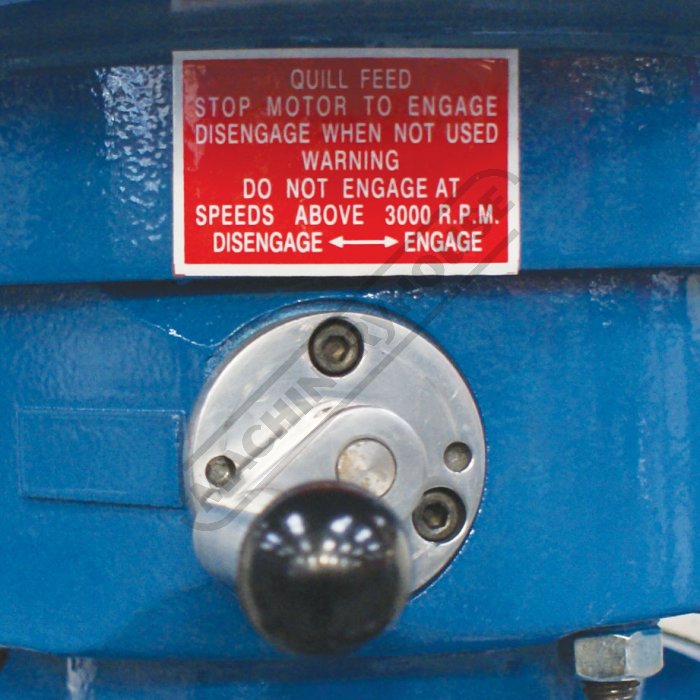

  • 22 of 27

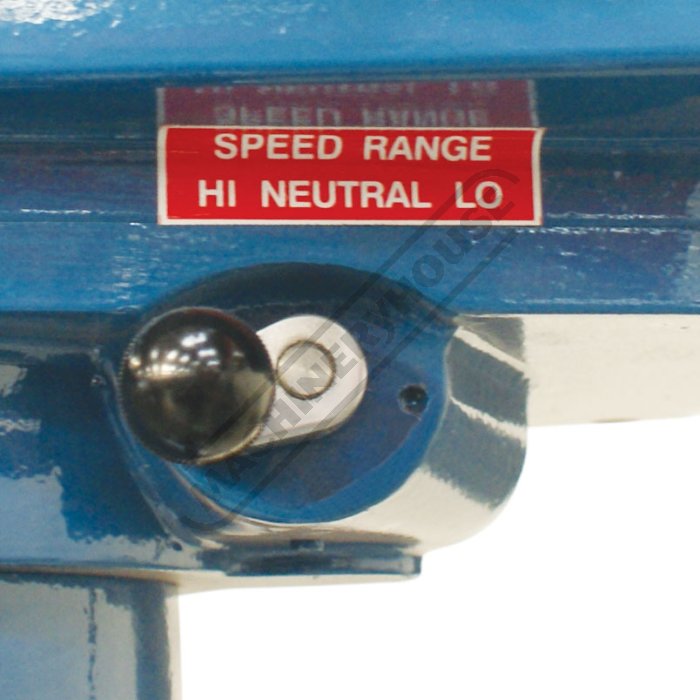

    Feed Engage Disengage Drive
  • 23 of 27

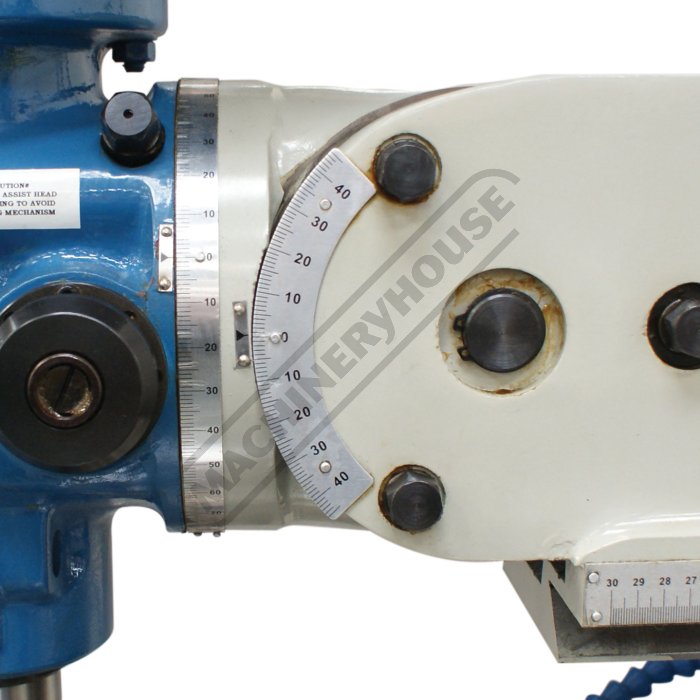

    Universal Tilting and Rotating Head
  • 24 of 27

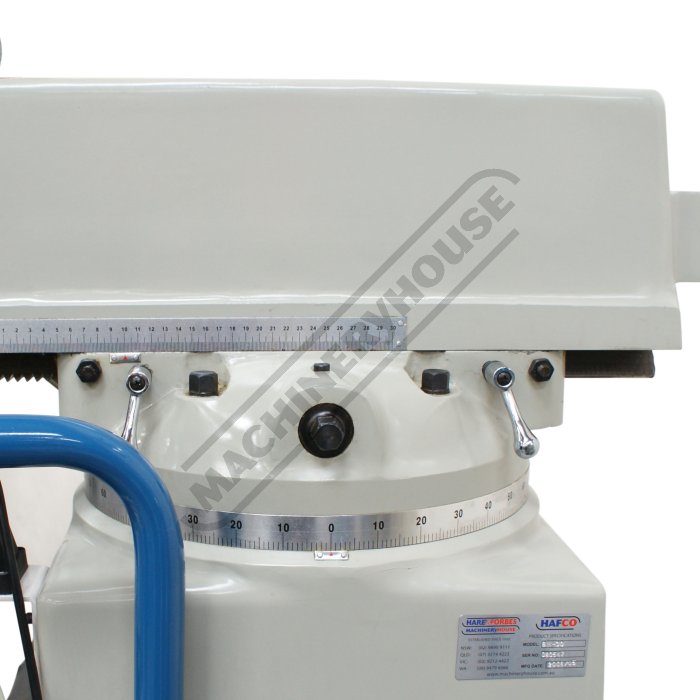

    Adjustable Swivel & Sliding Ram

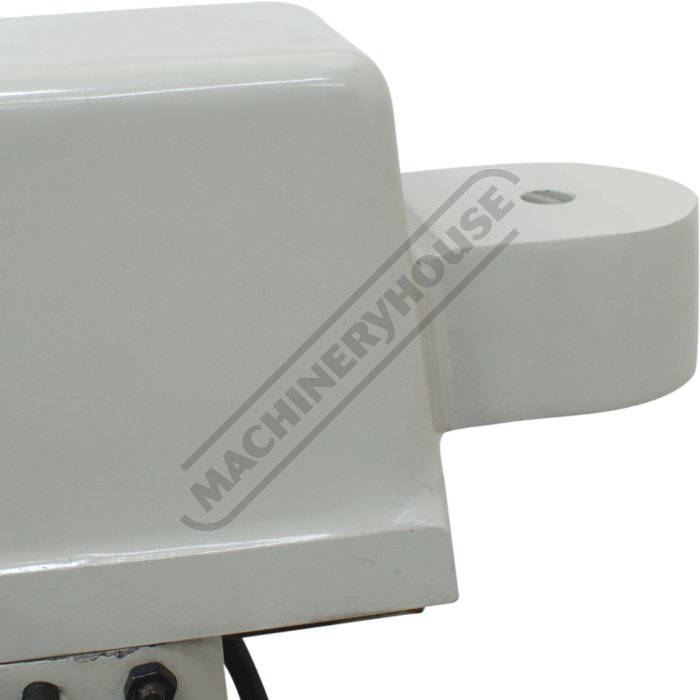

  • 25 of 27
    Tail Lug Spigot Supports Slotting Head
  • 26 of 27
    Includes 150mm Machine Vice
  • 27 of 27
    Includes Clamp Kit
Order Code: M603D
BM-30A - Turret Milling Machine (240V)
(X) 760mm (Y) 360mm (Z) 430mm
Includes Digital Readout, Vice & Clamp Kit
HAFCO METALMASTER
ORDER CODE
M603D
MODEL
BM-30A
Digital Readout
3-Axis Counter, X, Y Scales
Type
Vertical
Table Size (mm)
1270 x 254
Spindle Taper - Vertical
NT30
Longitudinal Travel (X-Axis) (mm)
760
Cross Travel (Y-Axis) (mm)
360
Vertical Travel (Z-Axis) (mm)
430
Type of Slides
Dovetail
Ram Travel (mm)
520
Spindle to Table (mm)
505
Quill Travel / Diameter (mm)
127 / 86
Throat Depth (max.) (mm)
740
Tilting Head (Left ~ Right)
±90º
Tilting Head (Forward ~ Back)
±45º
Power Feed - Quill (mm/rev)
0.015 / 0.04 / 0.08
Power Feed - Longitudinal (X-Axis) (mm/min)
20 - 2000
Power Feed - Cross (Y-Axis) (mm/min)
Optional
Power Feed - Vertical (Z-Axis) (mm/min)
Optional
Table T-Slot Size (inch / mm)
5/8
Work Table Load Capacity (kg)
250
Spindle Speeds Vertical (No./ rpm)
8 (80 - 2720)
Motor Power - Vertical (kW / hp)
2.2 / 3
Voltage / Amperage (V / amp)
240 / 20
Overall Height (mm)
2150
Nett Weight (kg)
1100
Description
Manufactured in Taiwan
Features
  • 3-Axis digital readout counter fitted with 2-Axis X & Y scales only
  • 3HP 240V motor, 8-speeds V-belt drive system
  • NT30 Spindle taper with a chrome & ground quill
  • Hardened & ground work table & slide-ways
  • Turcite B coated X & Y-Axis slide-ways reduces friction for smooth operation
  • All slides utilise dovetail construction for maximum rigidity
  • Meehanite casting for high strength & minimal deformation
  • Quality electrics & overload protection in an easy access enclosure
  • Horizontal travelling ram mounted on a rotating base allowing repositioning of spindle
  • The ram incorporates a tail lug (spigot) to accept a slotting attachment etc.
  • High / neutral and low gear selection lever to maximise torque
  • Align CE-300S X-Axis power-feed with adjustable micro switch feed stops
  • Coolant system, halogen light, 150mm machine vice & swarf tray
  • Metric dial graduations @ 0.02mm for X , Y & Z-Axis
  • Automatic quill feed 0.015, 0.04, 0.08mm/rev
  • Automatic cut off depth stop on quill
  • Oil lubrication pump and reservoir
  • Slideway covers Y & Z-Axis
  • Mill head tilts to ±45º forward and back
  • Mill head tilts to ±90º left and right
  • Manual quick action quill lever
  • Mechanical spindle brake
  • Tool box and manual
Includes
  • 3-Axis digital readout counter fitted with 2-Axis X & Y scales only
  • One-shot oil lubrication pump and reservoir
  • Drawbar M12 thread
  • Coolant system
  • Slideway covers
  • X-Axis power-feed
  • Halogen light
  • Machine vice (150mm)
  • Clamp kit
  • Safety cutter guard
  • Swarf tray
Product Brochure

Instruction Manual
4.76 MB
