THIS PRODUCT IS NO LONGER AVAILABLE. Click to see recommended item > M597D (BM-53VE)
HAFCO METALMASTERBM-52VE

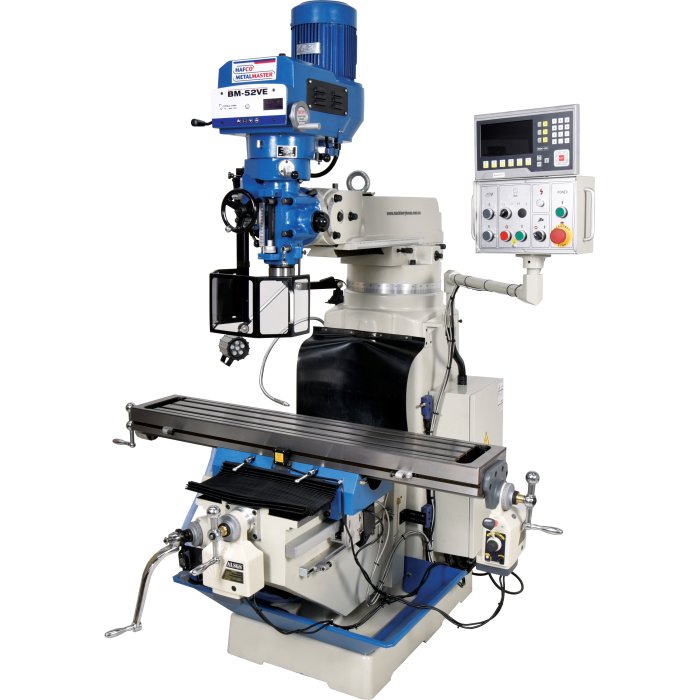

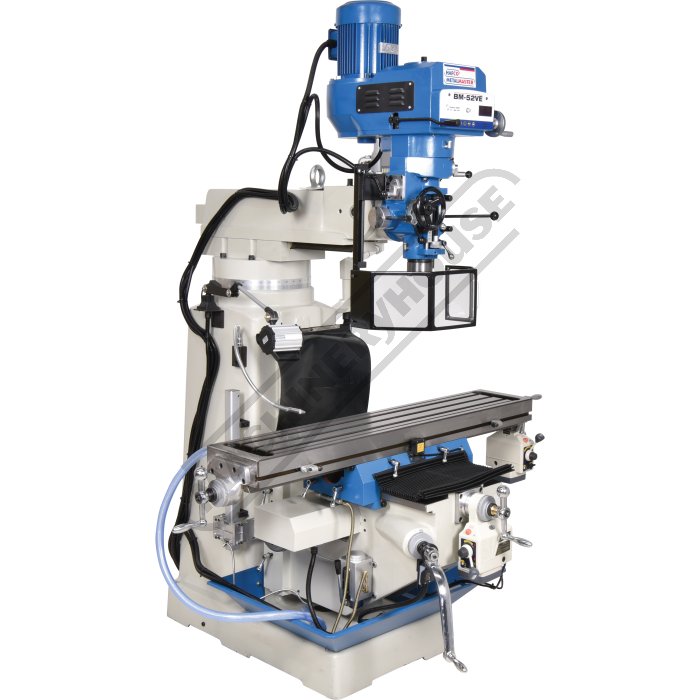

Turret Milling Machine
  • 1 of 29
    M596D
  • 2 of 29

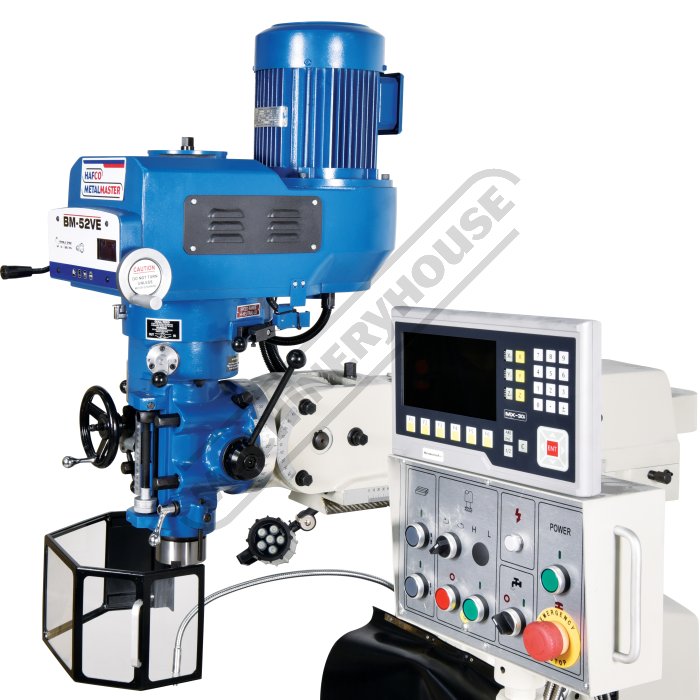

    Head Right View
  • 3 of 29

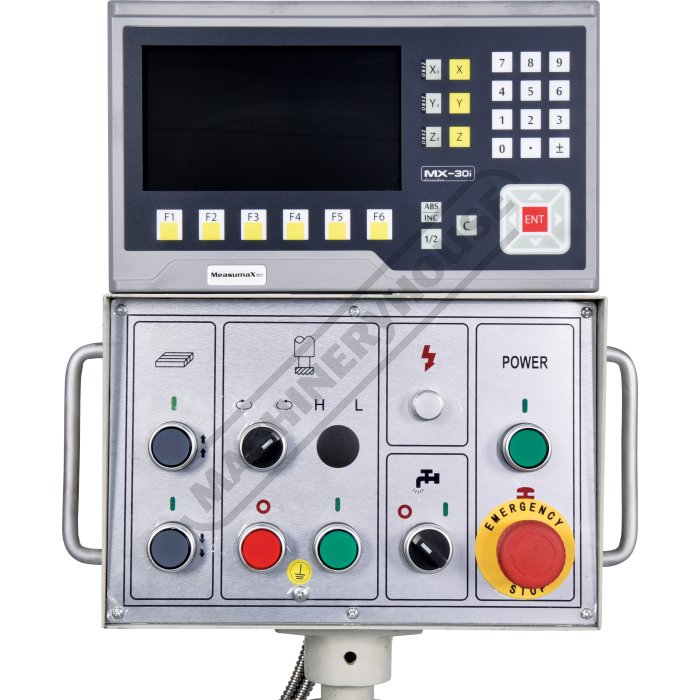

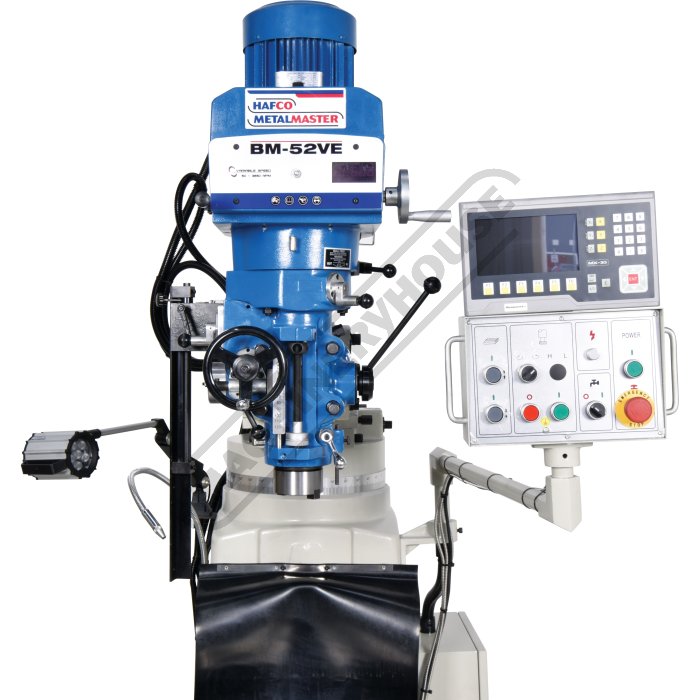

    Control Panel
  • 4 of 29

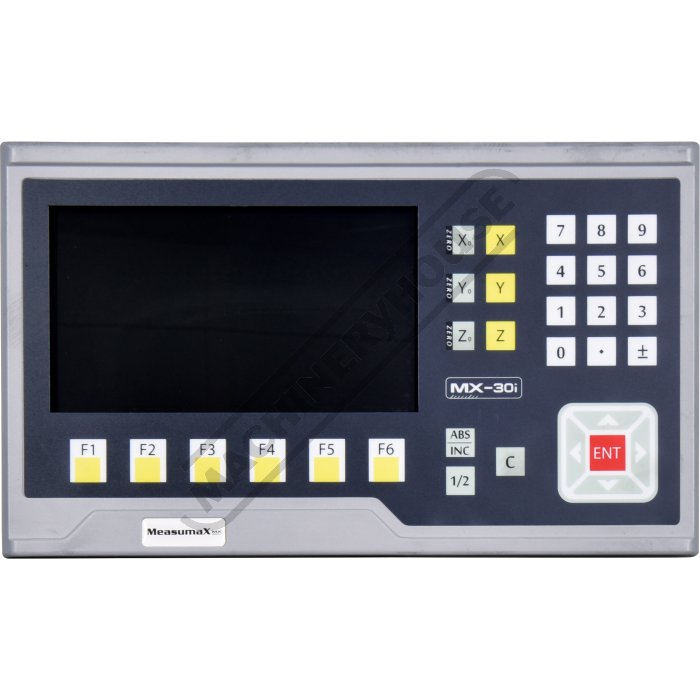

    3 Axis Digital Readout System
  • 5 of 29
    Switch Panel
  • 6 of 29

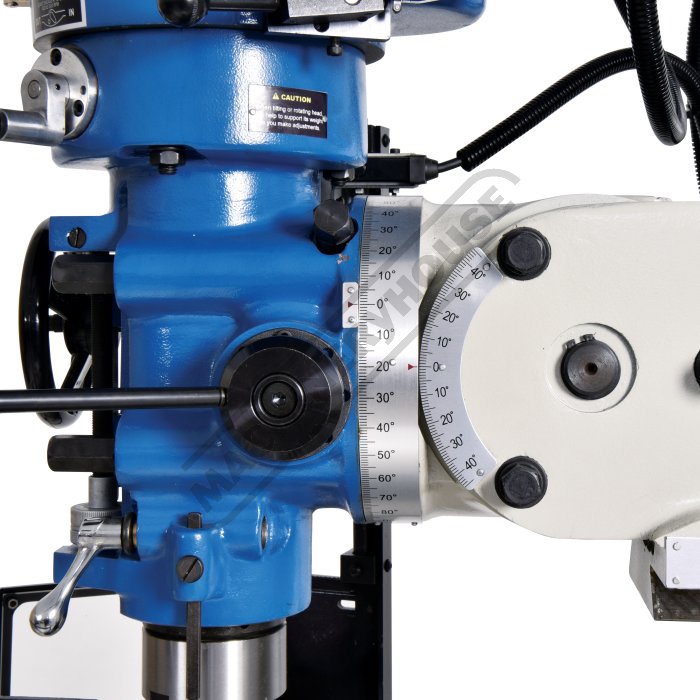

    Universal Tilting and Rotating Head
  • 7 of 29
    Head Right Side View
  • 8 of 29
    Variable Speed
  • 9 of 29
    Spindle Brake
  • 10 of 29
    Variable Speed Dial
  • 11 of 29

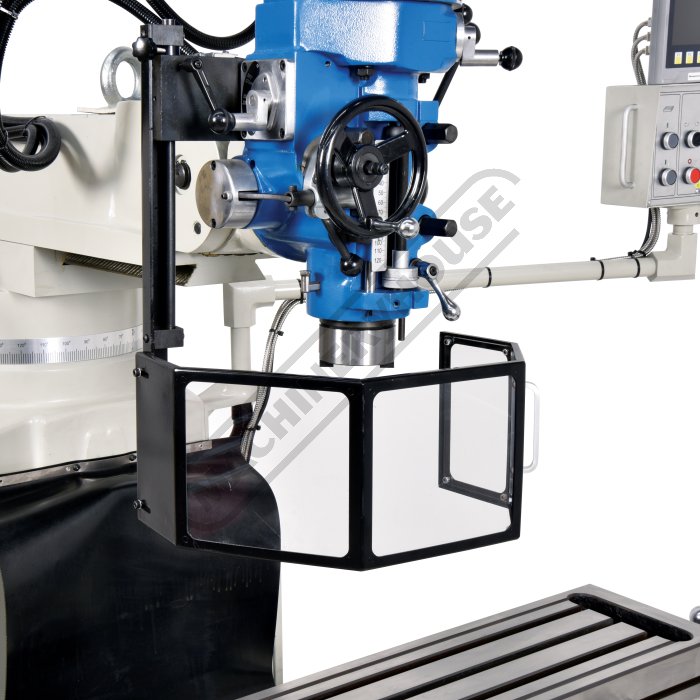

    Safety Milling Guard
  • 12 of 29

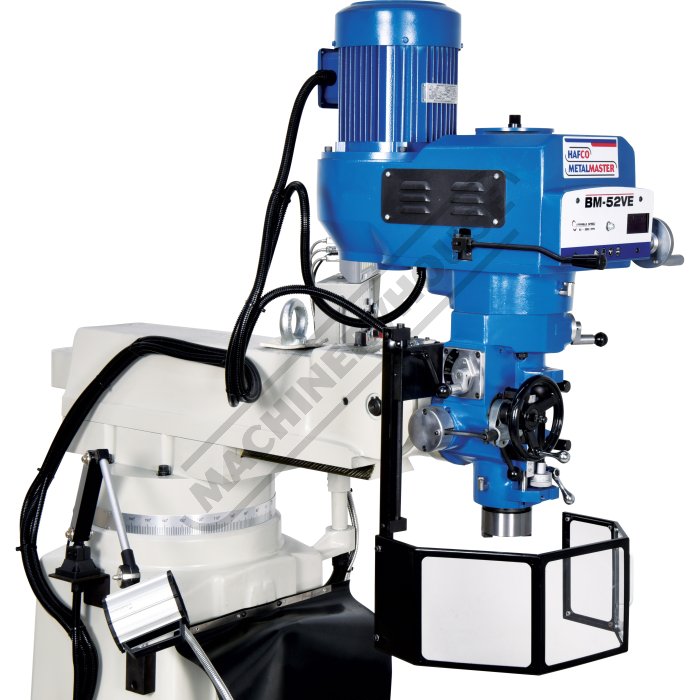

    Head Left View
  • 13 of 29
    Feed Selector
  • 14 of 29

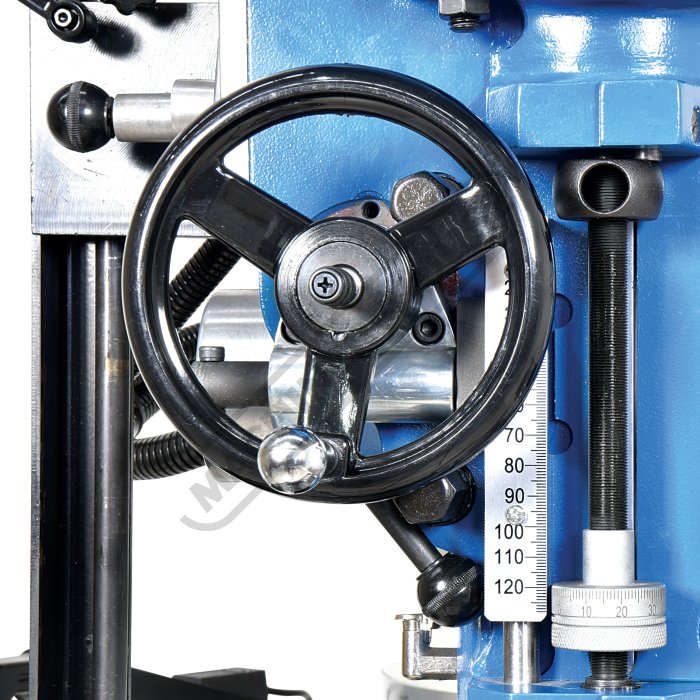

    Quill Feed Depth Stop
  • 15 of 29

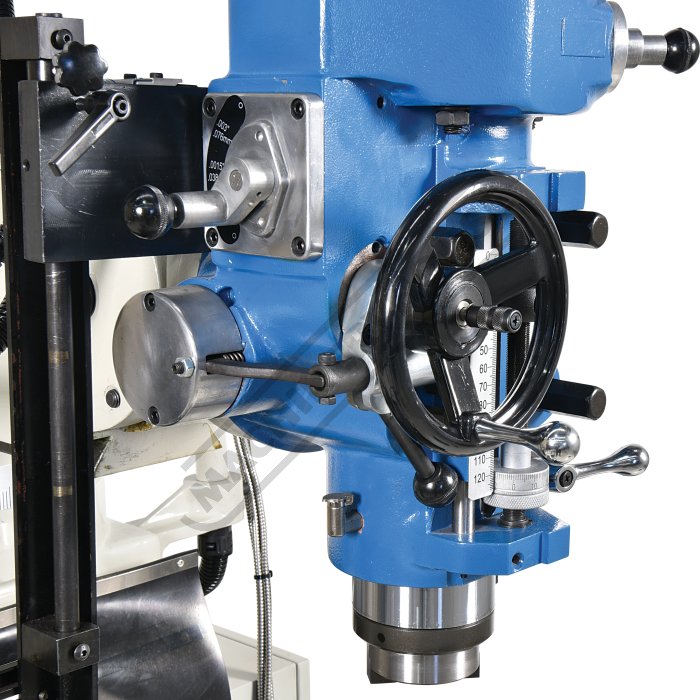

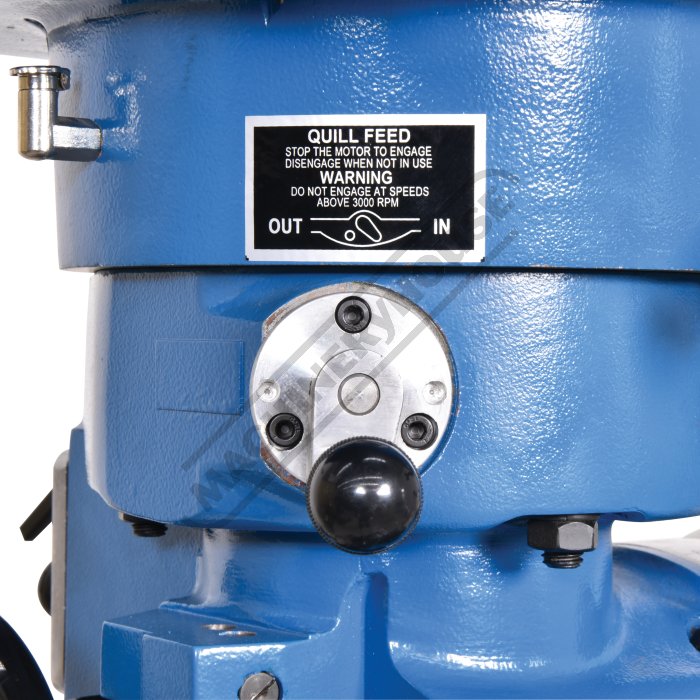

    Quill Feed Engage Lever
  • 16 of 29

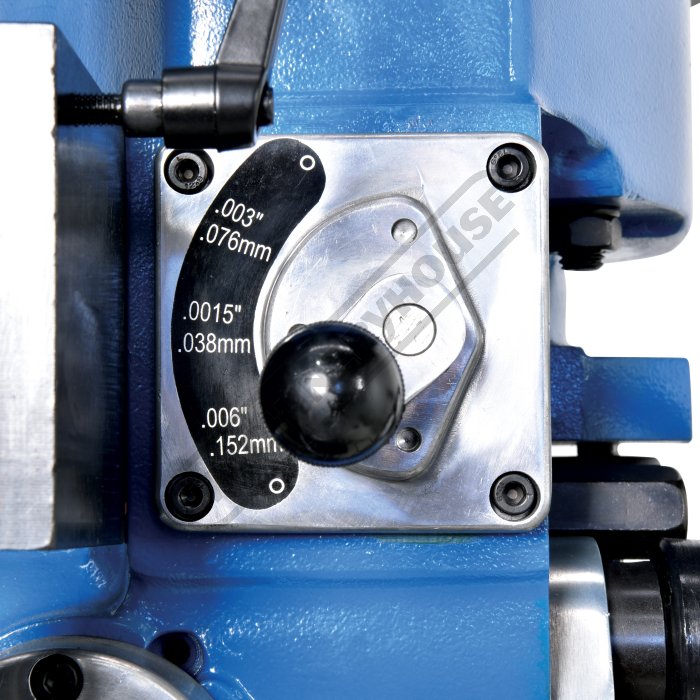

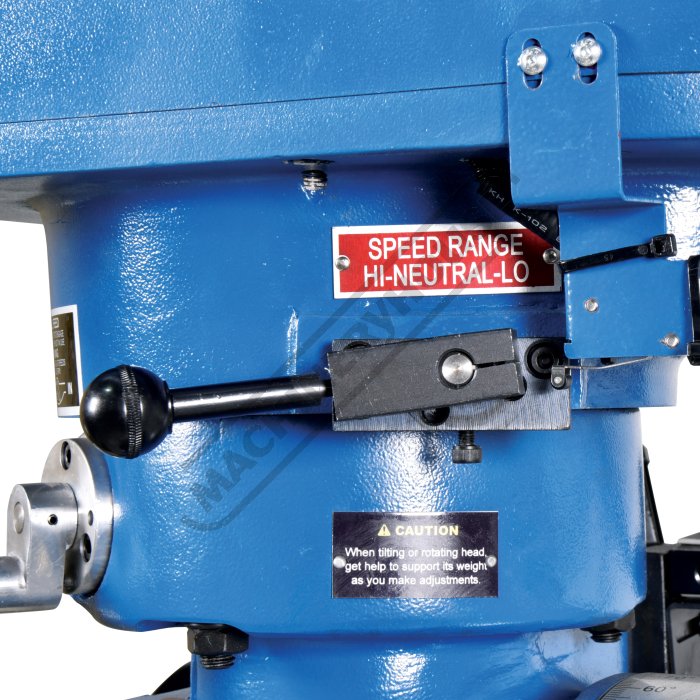

    Feed Range Hi Neutral Low
  • 17 of 29
    Quill Handle
  • 18 of 29

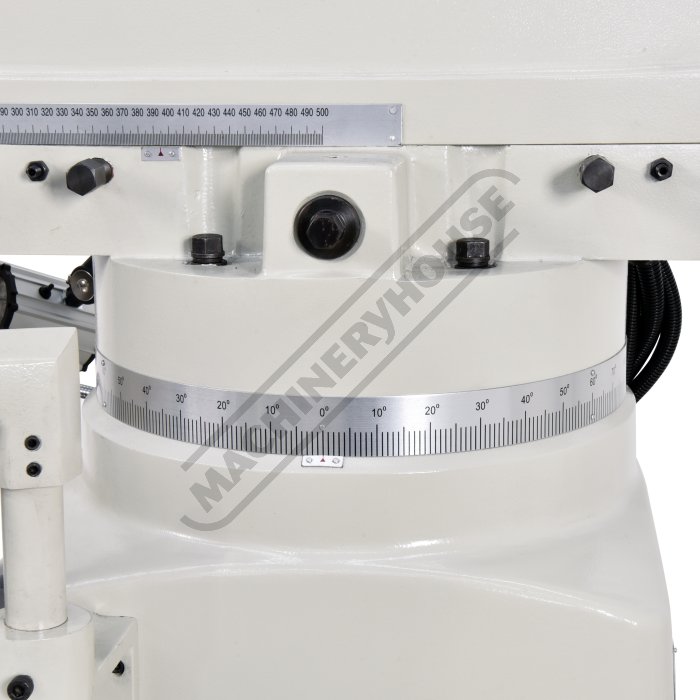

    Adjustable Swivel and Sliding Ram
  • 19 of 29
    Z Axis Micro Switches
  • 20 of 29

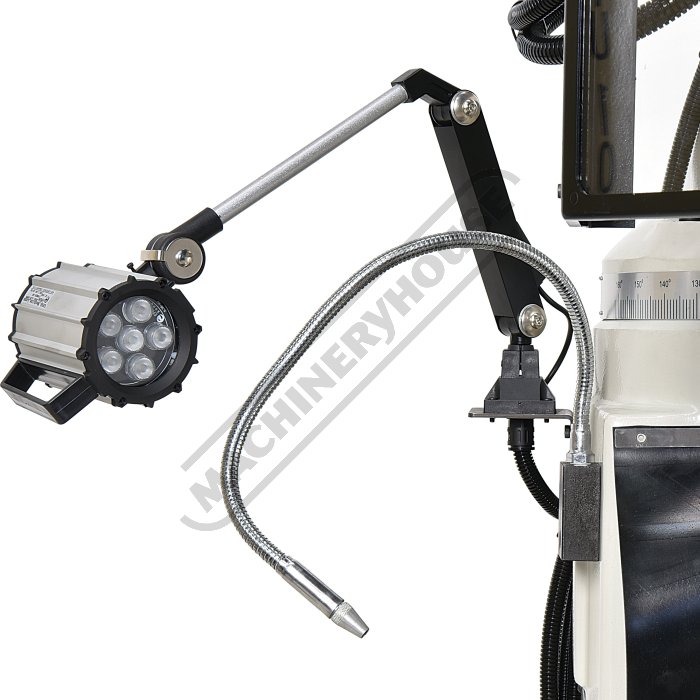

    Work Light and Coolant Hose
  • 21 of 29

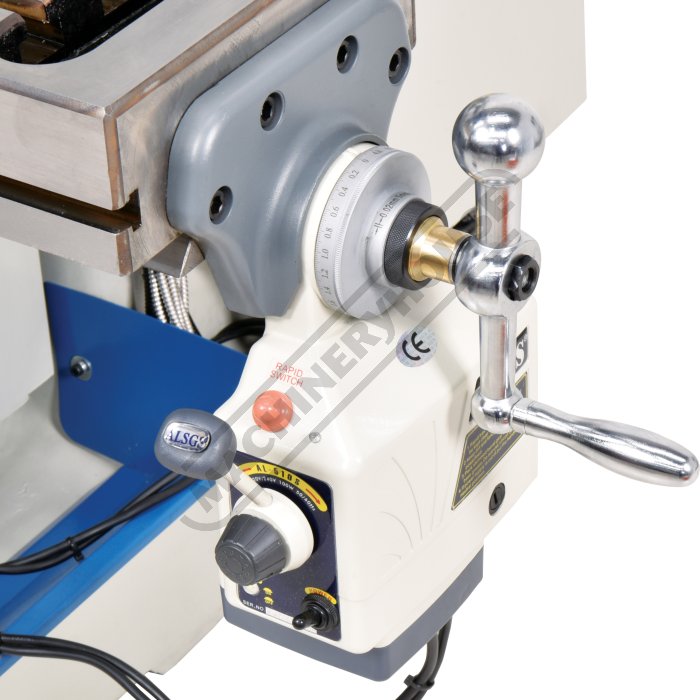

    X Axis Power Feed With Rapid
  • 22 of 29

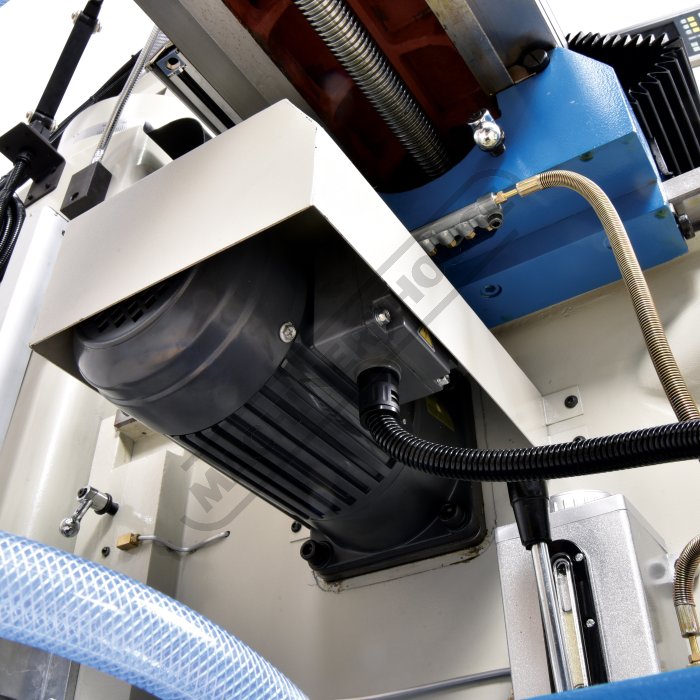

    Z Axis Rapid Motor
  • 23 of 29

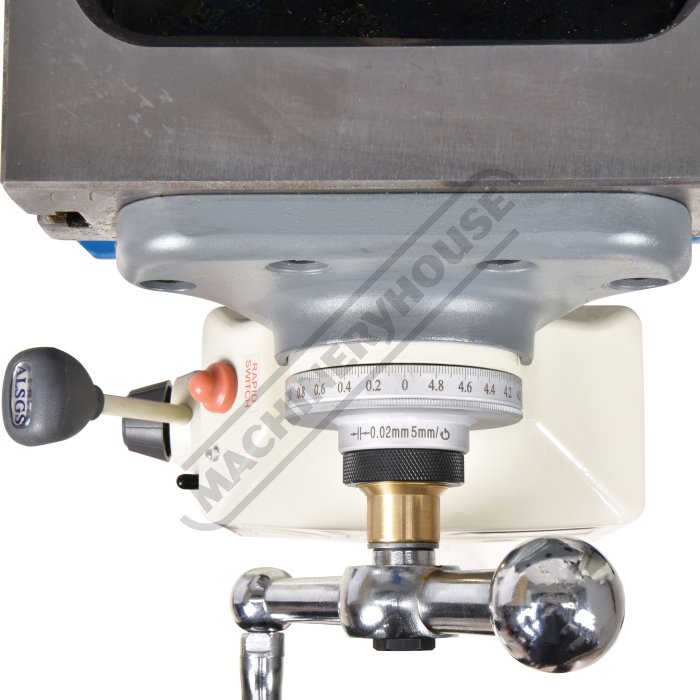

    X Axis Dial
  • 24 of 29

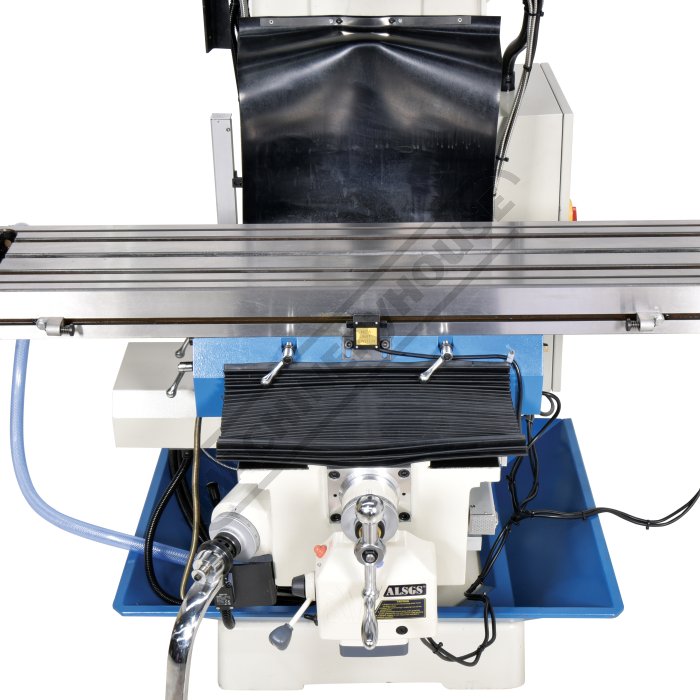

    Table Feed Limit Switches
  • 25 of 29

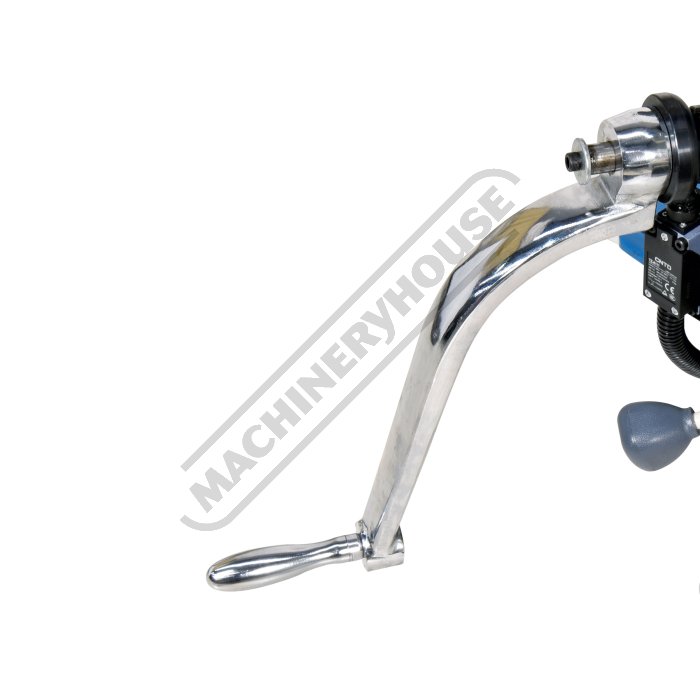

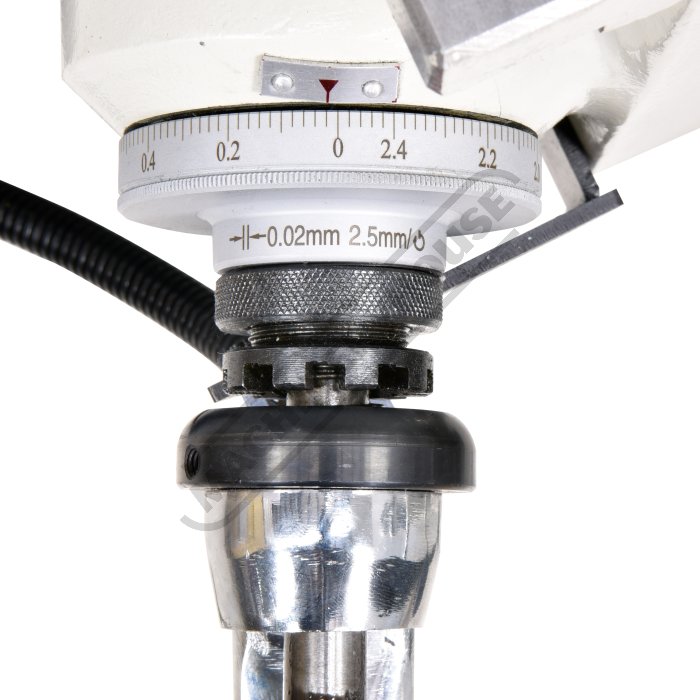

    Knee Feed Handle
  • 26 of 29

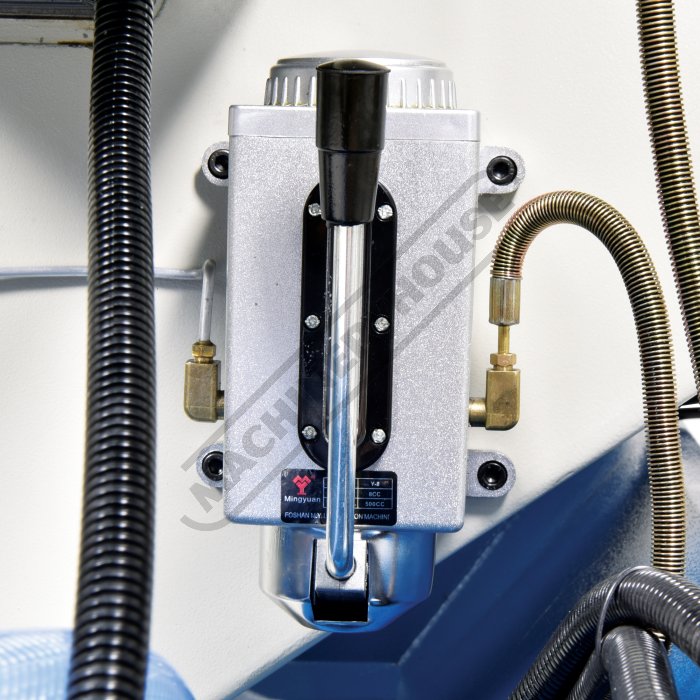

    Lubrication Pump
  • 27 of 29

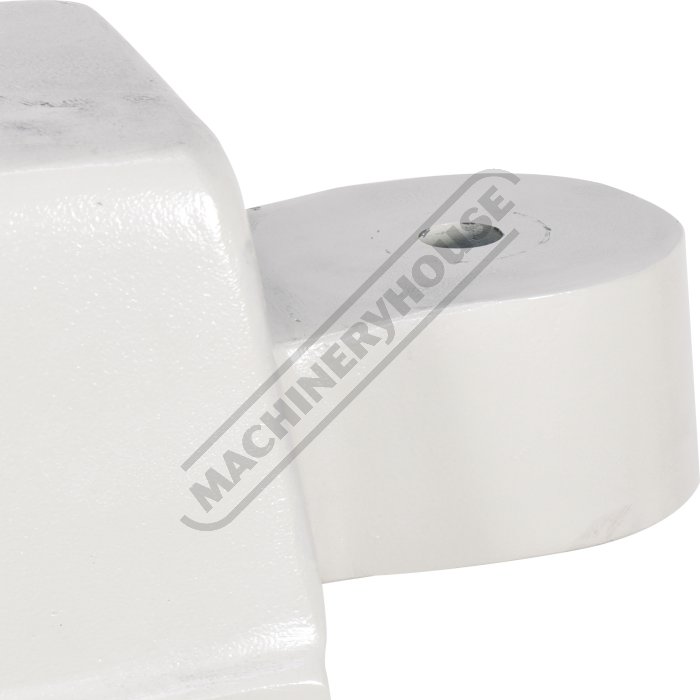

    Tail Lug Spigot Supports Slotting Head
  • 28 of 29
    Machine Vice
  • 29 of 29
    Clamp Kit
Order Code: M596D
BM-52VE - Turret Milling Machine (415V)
(X) 865mm (Y) 420mm (Z) 400mm
Includes Digital Readout, Vice & Clamp Kit
HAFCO METALMASTER
ORDER CODE
M596D
MODEL
BM-52VE
Digital Readout
3-Axis Digital Readout
Type
Vertical
Table Size (mm)
1370 x 254
Spindle Taper - Vertical
NT40
Longitudinal Travel (X-Axis) (mm)
865
Cross Travel (Y-Axis) (mm)
420
Vertical Travel (Z-Axis) (mm)
400
Type of Slides
Dovetail (X), Square (Y & Z)
Ram Travel (mm)
500
Spindle to Table (mm)
440
Quill Travel / Diameter (mm)
127 / 86
Throat Depth (max.) (mm)
690
Tilting Head (Left ~ Right)
±90º
Tilting Head (Forward ~ Back)
±45º
Power Feed - Quill (mm/rev)
0.076 / 0.038 / 0.152
Power Feed - Longitudinal (X-Axis) (mm/min)
20 - 2000
Power Feed - Cross (Y-Axis) (mm/min)
Optional
Power Feed - Vertical (Z-Axis) (mm/min)
Rapid
Table T-Slot Size (inch / mm)
5/8
Work Table Load Capacity (kg)
350
Spindle Speeds Vertical (No./ rpm)
Variable (50 - 3750)
Motor Power - Vertical (kW / hp)
3.75 / 5
Voltage / Amperage (V / amp)
415
Overall Height (mm)
2184
Nett Weight (kg)
1130
Description
Quality product representing excellent value
Features
  • 3 Axis digital readout fitted
  • 5HP 415V motor with mechanical variable speed system
  • NT40 Spindle taper with a chrome & ground quill
  • Hardened & ground work table & slide-ways
  • Square construction slides for Y & Z-Axis to maximise rigidity
  • Turcite B coated X & Y Axis slide-ways reduces friction for smooth operation
  • Powered elevating motor for Z-Axis
  • Meehanite casting for high strength & minimal deformation
  • Quality electrics & overload protection in an easy access enclosure
  • Horizontal travelling ram mounted on a rotating base allowing repositioning of spindle
  • The ram incorporates a tail lug (spigot) to accept a slotting attachment etc.
  • High / neutral and low gear selection lever to maximise torque
  • Align AL-500S X-Axis power-feed with adjustable micro switch feed stops
  • Coolant system, halogen light, 150mm machine vice & swarf tray
  • Micro switch on the manual knee handle for additional operator safety

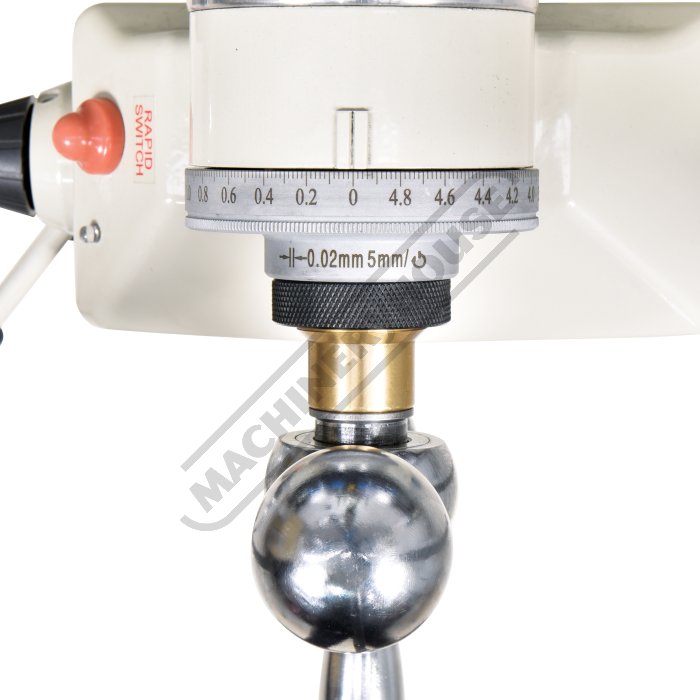

  • Metric dial graduations @ 0.02mm for X , Y & Z-Axis
  • Automatic quill feed 0.076, 0.038, 0.152mm/rev
  • Automatic cut off depth stop on quill
  • Oil lubrication pump and reservoir
  • Slide-way covers Y & Z-Axis
  • Mill head tilts to ±45º forward and back
  • Mill head tilts to ±90º left and right
  • Manual quick action quill lever
  • Mechanical spindle brake
  • Tool box and manual
Includes
  • 3 Axis digital readout fitted
  • One-shot oil lubrication pump and reservoir
  • Drawbar M16 thread
  • Coolant system
  • Slideway covers
  • Z-Axis powered elevating motor
  • X-Axis power-feed
  • Halogen light
  • Machine vice (150mm)
  • Clamp kit
  • Safety cutter guard
  • Swarf tray
