THIS PRODUCT IS NO LONGER AVAILABLE. Click to see recommended item > M183 (BC-3K)
Precision Boring Head
  • 1 of 1
Order Code: M1833
BC-3 - Precision Boring Head
Requires Spindle Arbor

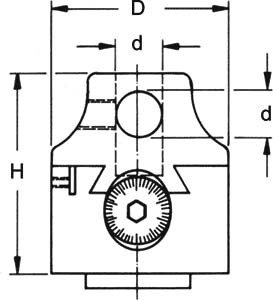

d (lowercase)
Centre Distance Between Holes
Micro Adjustment Travel
Weight (nett)
Sturdy boring head suitable for roughing & finishing work.
Fitted with 2 vertical and one cross hole for the boring bars
The boring head allows the boring bar to be adjusted at a right angle to the spindle axis. This feature makes it possible to position the boring cutter accurately to bore holes of varying diameters.
The adjusting screw is hardened & ground and is a non reflecting satin chrome. The reading dial allows for adjustments of 0.01mm on the tool slide and is a direct reading.
  • Wide range of boring diameters and depths
  • Calibrated micro adjusting screw via a hexagon key.
  • 1-1/2" x 18TPI threaded body to mount optional arbors
  • Accepts 18mm diameter boring bars
  • Includes storage case for protection
