THIS PRODUCT IS NO LONGER AVAILABLE. Click to see similar products > Boring Head - Kits
TOOLMASTERBC-2
Precision Boring Head Kit
  • 1 of 1
    BC 2Bhead OLD
Order Code: M182A
BC-2 - Precision Boring Head Kit
50mm
Requires Spindle Arbor
TOOLMASTER
ORDER CODE
M182A
Model
BC-2
Type
Boring

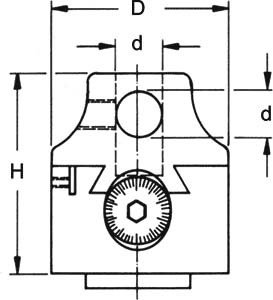

D
50
H
62
d (lowercase)
12
Centre Distance Between Holes
15
Micro Adjustment Travel
15
Weight (nett)
1.2kg
Description
Fitted with 2 vertical and one cross hole for the boring bars
The boring head allows the boring bar to be adjusted at a right angle to the spindle axis. This feature makes it possible to position the boring cutter accurately to bore holes of varying diameters. Direct-reading adjustment screw is hardened and ground, has an easy-to-read, non-reflecting satin chrome dial face for accurate adjustments of 0.01mm.
Please note: Shanks are sold separately.
Features
  • Wide range of boring diameters and depths
  • Calibrated micro adjusting screw via a hexagon key.
  • 1-1/2" x 18TPI threaded body to mount optional arbors
  • Accepts 12mm diameter boring bars
  • Includes boring bars and storage case for protection
Product Brochure

Boring Head Tips
378.12 KB
Spare Parts Ordering
To assist you in ordering your spare part quicker than ever before, we have listed our most common spare parts to suit our Hafco Machinery for purchase online. Just choose between the 2 options outlined below, to find exactly what you are looking for. If you need further assistance please contact us.
Option 1
Browse through the "Common Spare Parts" tab below . Once you have identified your part, you can add it to your cart by clicking on the "+ ADD TO CART" button. If you wish to add multiples of this part you can either click the "+ ADD TO CART" button as many times as you like or click on the "VIEW CART" button and change the order quantity, prior to completing your order.
Option 2
If your part is NOT listed in the "Common Spare Parts" tab below , click the "MORE INFO" button to complete the "Spare Parts Enquiry Form".
This will provide you with the option to email your spare part enquiry direct to our Spare Parts and Service Department, or if you wish, you can download a printable version of this enquiry form which will include a copy of the Parts List to suit this machine (if available). Further instructions for the return email address or fax number of this printable form is provided on the document for your convenience.
NOTE: Please remember to clearly identify your part on the included parts diagram if necessary so that we can respond as quickly as possible with a price and availability for the part(s) you require.
