HAFCO METALMASTERHM-52
Turret Milling Machine Horizontal - Vertical
  • 1 of 17
    M161
  • 2 of 17
    Quill Feed Handle and Fine Feed Dial
  • 3 of 17
    Horizontal Spindle
  • 4 of 17
    X Axis Power Feed with Rapid
  • 5 of 17
    Spindle Speed Chart
  • 6 of 17
    Tilting Head Scale
  • 7 of 17

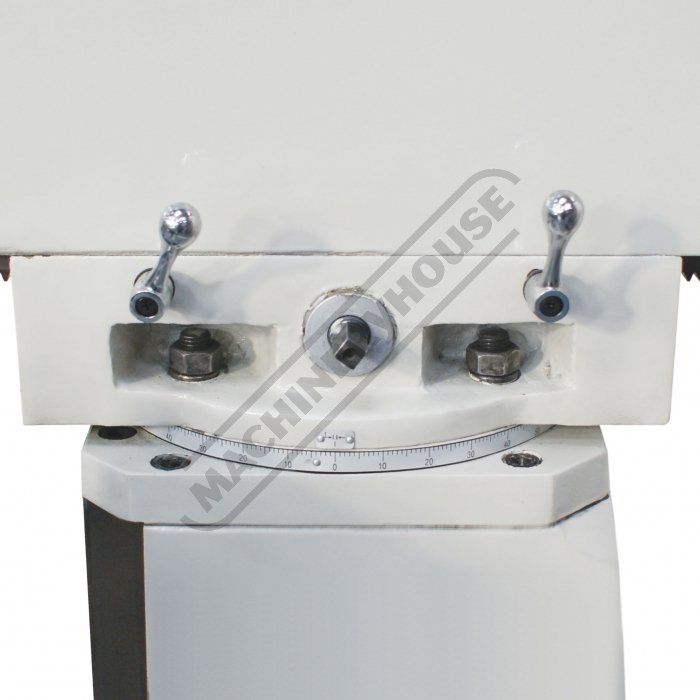

    Adjustable Swivel & Sliding Ram
  • 8 of 17
    Concertina Slide Way Cover
  • 9 of 17

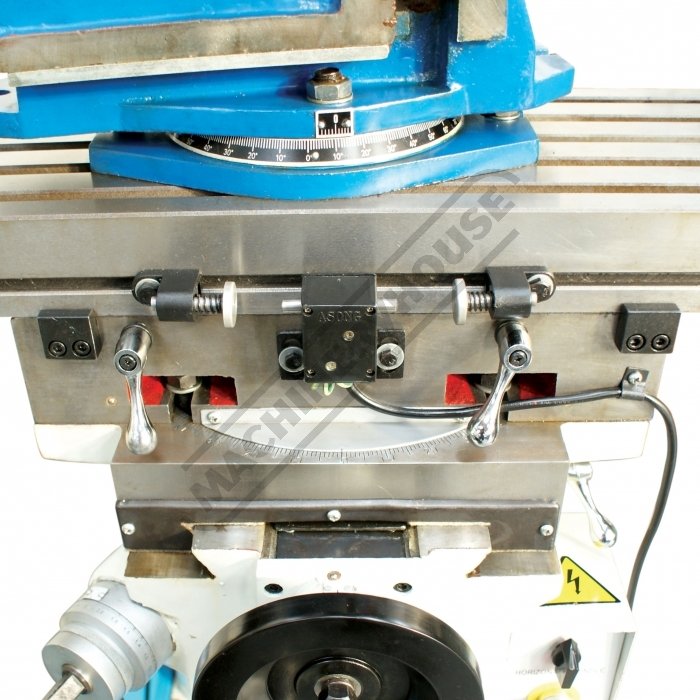

    Swivel Table & Feed Limit Switches
  • 10 of 17
    Horizontal Speed Spindle Chart
  • 11 of 17
    Vertical Spindle Switch
  • 12 of 17
    Knee Feed Handle
  • 13 of 17
    Horizontal Spindle Support
  • 14 of 17
    Halogen Light
  • 15 of 17
    Horizontal Spindle Switch
  • 16 of 17
    Coolant Pump
  • 17 of 17

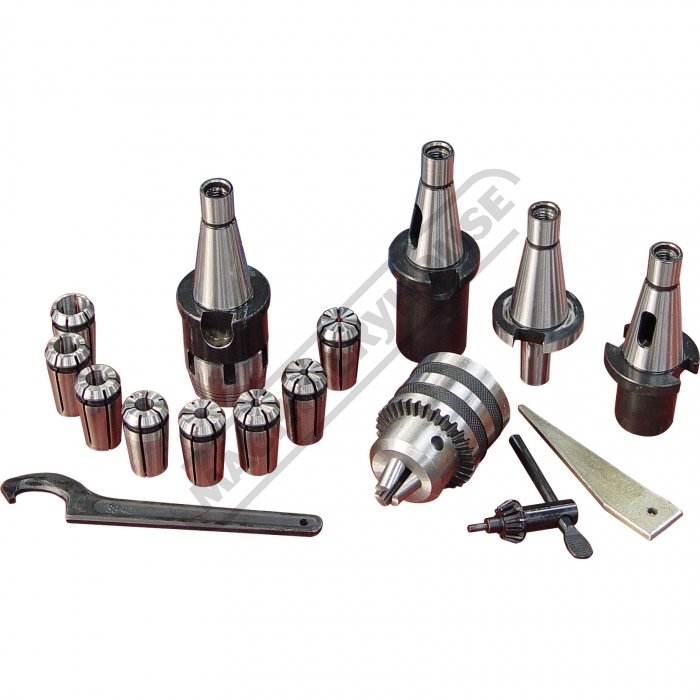

    Accessories Included, Metric Collet Chuck, Drill Chuck & Arbor, Morse Taper Adaptors
Order Code: M161
HM-52 - Turret Milling Machine Horizontal - Vertical (240V)
(X) 600mm (Y) 200mm (Z) 340mm
HAFCO METALMASTER
ORDER CODE
M161
Model
HM-52
Digital Readout
Optional
Type
Vertical & Horizontal
Table Size
1000 x 240mm
Spindle Taper - Vertical
NT30
Spindle Taper - Horizontal
NT30
Longitudinal Travel (X-Axis)
600mm
Cross Travel (Y-Axis)
200mm
Vertical Travel (Z-Axis)
340mm
Type of Slides
Dovetail
Ram Travel
500mm
Spindle to Table
375mm
Quill Travel / Diameter
125mm / 90mm
Throat Depth (max.)
640mm
Tilting Head (Left ~ Right)
±90º
Tilting Head (Forward ~ Back)
Fixed
Power Feed - Quill
Manual
Power Feed - Longitudinal (X-Axis)
20 - 2000 mm/min
Power Feed - Cross (Y-Axis)
Optional *
Power Feed - Vertical (Z-Axis)
Optional *
Table T-Slot Size
14mm
Work Table Load Capacity
175kg
Spindle Speeds Vertical (steps/rpm)
9 (220-2400rpm)
Spindle Speeds Horizontal (steps/rpm)
9 (60-1350rpm)
Motor Power - Vertical
1.5kW / 2hp
Motor Power - Horizontal
1.5kW / 2hp
Motor Voltage
240V
Overall Height
2060mm
Weight (nett)
1050kg
Description
A well-built entry level turret milling vertical and horizontal, drilling machine with a powerful continuous-load 1.5kW motor, intended for trade use. The work table is precision made with adjustable dovetail guides and is recognised for its 600mm X axis by 200mm Y axis travel. There is a three armed handle on the side for drilling also incorporating a fine feed control hand wheel on the front for milling. The screwed belt guard covers on each side of the head offer secure safety whilst providing easy access to the belts and pulleys for speed changing.

Other features include taper roller bearing support for the spindle, easy-to-read drilling depth stop, low voltage work light, 8 piece metric collet chuck set, coolant system, X axis power feed unit, drill chuck, 2 & 3 morse taper adaptors. The combination of generous sized vertical support and rugged cast iron construction throughout reduces vibration and guarantees accurate and chatter-free operation.

Extra Features:
Swivel Table
2 Arbors for the Horizontal spindle
Features
  • Swivel table & two arbors for the Horizontal spindle
  • Mill head tilts to ±90º left to right.
  • 500mm horizontally sliding and rotating ram
  • NT30 Horizontal and vertical spindles that are hardened and ground
  • Precision-ground dovetail slide-ways and table
  • Precision milling table incorporating machined T slots
  • Rear concertina slide-way cover
  • Forward and reverse on/off switch
  • Fine handwheel operated quill feed
  • Swarf & splash tray
  • Spindle lock for quill
  • Metric dial graduations @ 0.02mm for X , Y & Z-Axis
  • Vertical dial graduations on hand wheel @ 0.05mm
  • All slides utilise dovetail construction for maximum rigidity

  • * Note: X & Y travels maybe reduced due to safety stops
  • * Note: Optional Y & Z power feeds require additional parts & fitting (not included)
Includes
  • X-Axis power feed
  • Safety cutter guard
  • Swarf tray
  • Coolant system
  • Halogen lamp
  • Drill chuck & arbor
  • 2 & 3MT adaptors
  • 8-piece metric collet chuck set (4-16mm)
