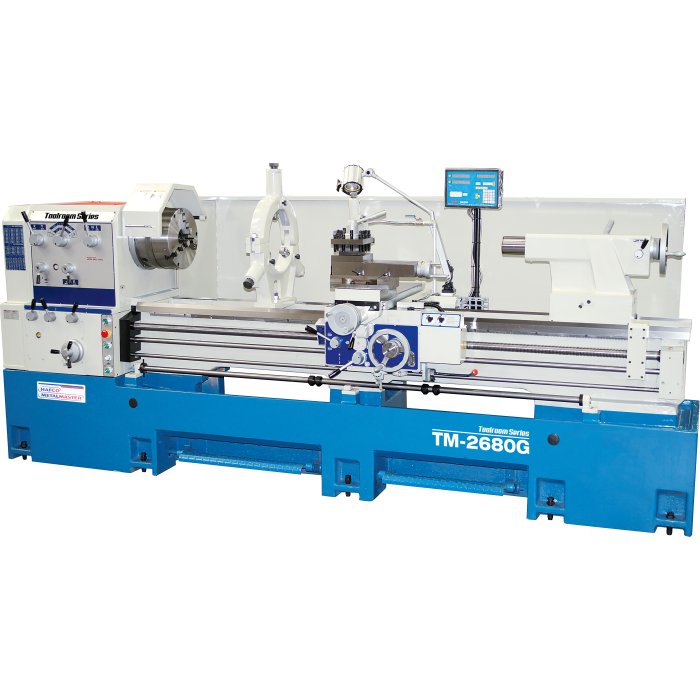

HAFCO METALMASTERTM-2680G
Centre Lathe
  • 1 of 32
    L639D
  • 2 of 32
    Digital Readout System
  • 3 of 32

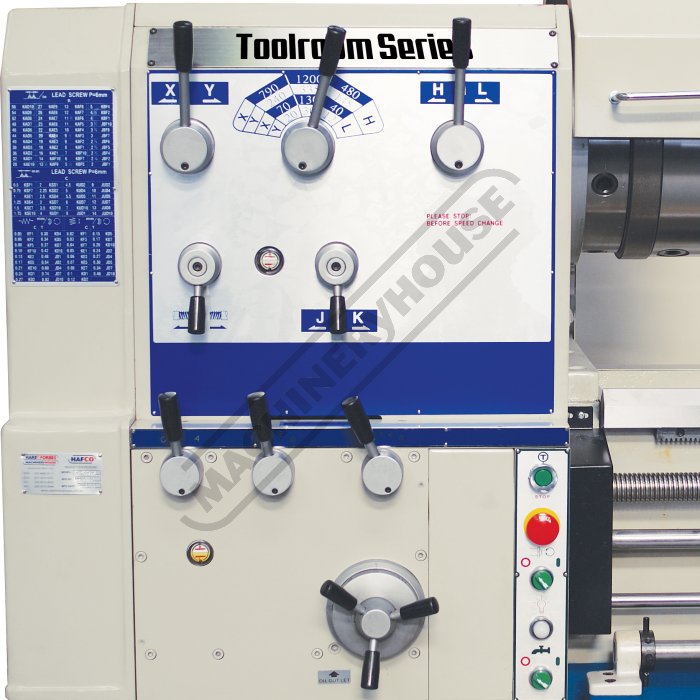

    Headstock
  • 4 of 32

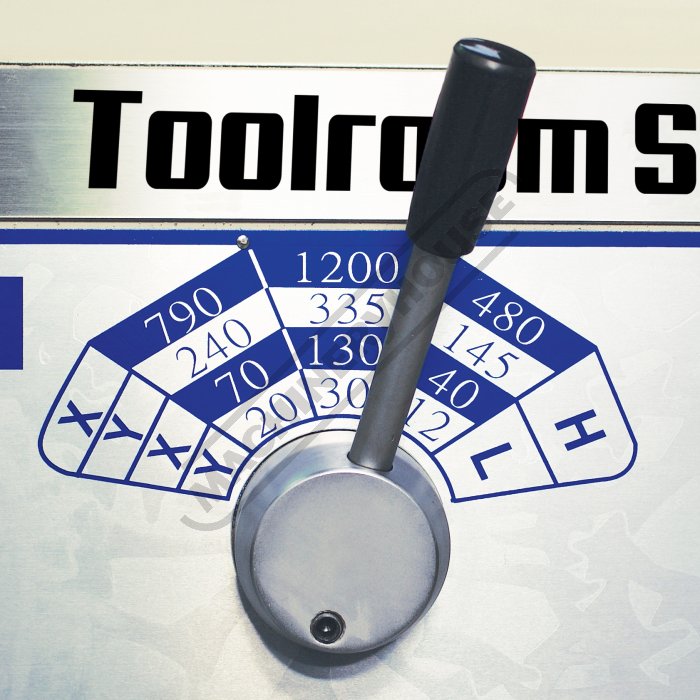

    Spindle Speeds
  • 5 of 32

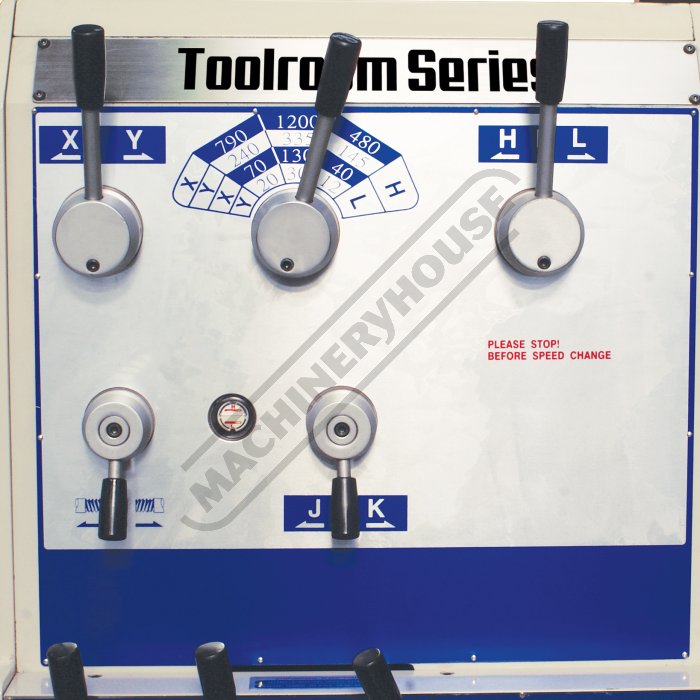

    Spindle Speed Selectors
  • 6 of 32
    Universal Enclosed Gearbox
  • 7 of 32
    Thread Charts
  • 8 of 32
    Safety Chuck Guard
  • 9 of 32
    Saddle Left View
  • 10 of 32
    Steadies
  • 11 of 32
    2 Point Steady
  • 12 of 32
    Saddle Front View
  • 13 of 32
    Saddle Right View
  • 14 of 32
    Coolant System and Work Light
  • 15 of 32
    Toolpost
  • 16 of 32
    Compound Slide Angle Scale
  • 17 of 32
    Spindle Engagement Lever
  • 18 of 32
    Rapid Longitudinal Buttons
  • 19 of 32
    Saddle Lock
  • 20 of 32
    Saddle Hand Wheel
  • 21 of 32
    Cross Feed Hand Wheel
  • 22 of 32
    Compound Slide Hand Wheel
  • 23 of 32
    Thread Chasing Dial
  • 24 of 32
    Feed Engagement Levers
  • 25 of 32
    Moveable Leadscrew and Feed Shaft Support
  • 26 of 32
    Adjustable 4 Position Length Stop
  • 27 of 32
    Tailstock Hand Wheel
  • 28 of 32
    2 Speed Tailstock
  • 29 of 32
    Tailstock Quill
  • 30 of 32
    Mechanite Cast Bed
  • 31 of 32
    Removable Gap Bed
  • 32 of 32
    Foot Brake
Order Code: L639D
TM-2680G - Centre Lathe (415V)
660 x 2000mm Turning Capacity - 115mm Bore
Includes Digital Readout
HAFCO METALMASTER
ORDER CODE
L639D
Model
TM-2680G
Digital Readout System Fitted
Quick Change Toolpost Fitted
Optional
Coolant System
Tool Height To Suit
30mm
Distance Between Centres
2000mm
Swing Over Bed
660mm
Swing Over Cross-slide
438mm
Swing In Gap
890mm
Centre Height
330mm
Spindle Bore
115mm
Spindle Nose Size or Type
D1-11 Camlock
Bed Width
400mm
Headstock Spindle Taper
7MT
Tailstock Taper
5MT
Cross Slide Travel
375mm
Compound Slide Travel
200mm
Leadscrew
Metric
Cross Feed Range (X-Axis)
0.02-0.4mm/rev
Longitudinal Feed Range (Z-Axis)
0.05-0.82mm/rev
Metric Thread Steps & Pitch Range
24 (0.5-14mm)
Imperial Thread Steps & TPI Range
44 (2-56TPI)
3 Jaw Chuck Diameter
310mm
4 Jaw Chuck Diameter
400mm
Spindle Steps / Speed Range
12 (12-1200rpm)
Motor Power
11.25kW / 15hp
Voltage
415V
Weight (nett)
3150kg
Description
Manufactured in Taiwan
Features
  • 2 Axis digital readout system
  • Triple SKF German made bearings supporting headstock spindle
  • Adjustable taper roller bearings providing spindle accuracy
  • Precision 'V'-beds & headstock gears are all hardened & ground
  • High quality one-piece Meehanite cast base increases rigidity
  • Overload protection on drive motor and coolant system
  • Universal enclosed gearbox incorporating metric & imperial thread capabilities
  • Inching button incorporated on the control panel for convenient spindle speed selection
  • Foot operated spindle brake with safety cut out switch
  • 400mm wide induction hardened heavy duty cast iron bed
  • Removable gap bed allowing work piece to swing up to 890mm
  • Powered longitudinal and cross feeds
  • Rapid traverse saddle Z axis
  • 2 speed high/low lever on tailstock
  • Slide-way mechanical lubrication pump driven via the saddle hand-wheel
  • Adjustable 4 position length-stop mechanism for accurate repetitive operation
  • Dual calibrated dials incorporating metric & imperial graduations
  • Coolant system with flexible hose enabling operator to manipulate flow direction
  • Roller bearings inserted to assist tail stock movement
  • Oil sight glass for head stock, gearbox and apron
  • Low voltage halogen work light
  • D1-11 camlock spindle for quick chuck removal
  • 12 Spindle speeds from 12 - 1200rpm
  • Large 115mm spindle bore
  • 11.25kW / 15HP 415V main motor
Includes
  • 2 Axis digital readout system
  • 310mm 3-jaw chuck with reverse jaws
  • 400mm 4-jaw chuck
  • 406mm face plate
  • 40-285mm fixed steady with roller bearings
  • 40-180mm travelling steady with roller bearings
  • 4-position knock out feed system
  • Dead centres
  • Thread chasing dial
  • Foot brake
  • Coolant system
  • Work light
  • Rear splash guard
  • Spindle reducing bush
  • Instruction booklet
