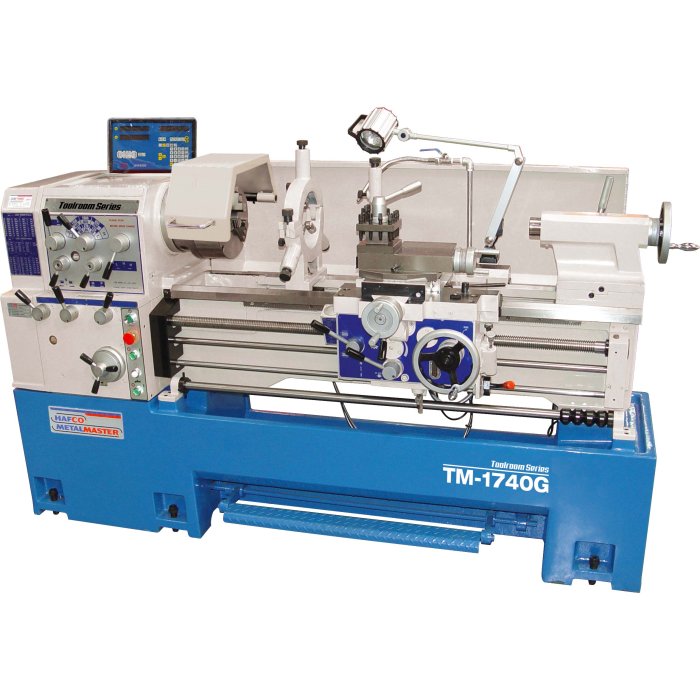

HAFCO METALMASTERTM-1740G
Centre Lathe
  • 1 of 31
    L632D
  • 2 of 31

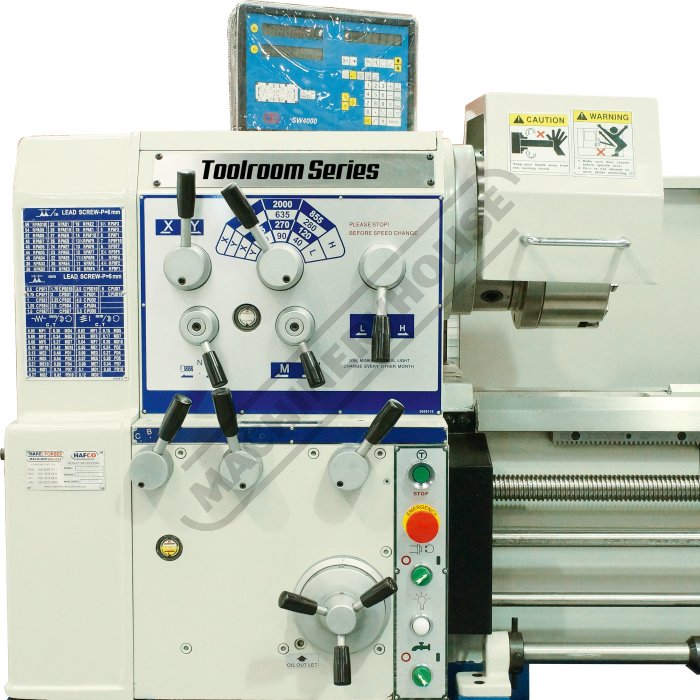

    Headstock
  • 3 of 31
    2 Axis DRO
  • 4 of 31
    Speed Levers
  • 5 of 31
    Thread Charts
  • 6 of 31
    Gearbox
  • 7 of 31
    Safety Chuck Guard
  • 8 of 31
    Meehanite Cast Bed
  • 9 of 31
    Saddle Left View
  • 10 of 31
    Saddle Front View
  • 11 of 31
    Saddle Right View
  • 12 of 31
    Compound Slide
  • 13 of 31
    Toolpost
  • 14 of 31
    Compound Scale
  • 15 of 31
    Saddle Lock
  • 16 of 31
    One Shot Slide Lubrication
  • 17 of 31
    Thread Chasing Dial
  • 18 of 31
    Feed and Threading Levers
  • 19 of 31
    Adjustable Auto Feed Knockout
  • 20 of 31
    Auto Feed Knockout System
  • 21 of 31
    Cross Feed Dial
  • 22 of 31
    Saddle Hand Wheel
  • 23 of 31
    Compound Slide Dial
  • 24 of 31
    Tailstock
  • 25 of 31
    Tailstock Quill
  • 26 of 31
    Tailstock Hand Wheel
  • 27 of 31
    Steadies
  • 28 of 31
    78mm Spindle Bore
  • 29 of 31
    Spindle Engagement Lever
  • 30 of 31
    Work Light and Coolant Hose
  • 31 of 31
    Foot Brake
Order Code: L632D
TM-1740G - Centre Lathe (415V)
430 x 1000mm Turning Capacity - 80mm Bore
Includes Digital Readout
HAFCO METALMASTER
On Special - Ends 31st December 2016
ex GST
inc GST
$16,950.00
$18,645.00
$15,990.00
$17,589.00

ORDER CODE
L632D
Model
TM-1740G
Digital Readout System Fitted
Quick Change Toolpost Fitted
Optional
Coolant System
Tool Height To Suit
25mm
Distance Between Centres
1000mm
Swing Over Bed
430mm
Swing Over Cross-slide
235mm
Swing In Gap
650mm
Centre Height
215mm
Spindle Bore
80mm
Spindle Nose Size or Type
D1-8 Camlock
Bed Width
300mm
Headstock Spindle Taper
7MT
Tailstock Taper
4MT
Cross Slide Travel
250mm
Compound Slide Travel
125mm
Leadscrew
Metric
Cross Feed Range (X-Axis)
0.02-0.4mm/rev
Longitudinal Feed Range (Z-Axis)
0.05-0.82mm/rev
Metric Thread Steps & Pitch Range
17 (0.5-7mm)
Imperial Thread Steps & TPI Range
39 (4-56TPI)
3 Jaw Chuck Diameter
275mm
4 Jaw Chuck Diameter
320mm
Spindle Steps / Speed Range
12 (40-2000rpm)
Motor Power
5.5kW / 7.5hp
Voltage
415V
Weight (nett)
1760kg
Description
Manufactured in Taiwan
Features
  • 2 axis digital readout system
  • Triple SKF German made bearings supporting headstock spindle
  • Adjustable taper roller bearings providing spindle accuracy
  • Precision 'V'-beds & headstock gears are all hardened & ground
  • High quality one-piece Meehanite cast base increases rigidity
  • Overload protection on drive motor and coolant system
  • Universal enclosed gearbox incorporating metric & imperial thread capabilities
  • Inching button incorporated on the control panel for convenient spindle speed selection
  • Foot operated spindle brake with safety cut out switch
  • 300mm Wide induction hardened heavy duty cast iron bed
  • Removable gap bed allowing work piece to swing up to 650mm
  • Powered longitudinal and cross feeds
  • Adjustable 4 position length-stop mechanism for accurate repetitive operation
  • Dual calibrated dials incorporating metric & imperial graduations
  • Coolant system with flexible hose enabling operator to manipulate flow direction
  • Oil sight glass for head stock, gearbox and apron
  • Low voltage halogen work light
  • Lubrication pump on saddle oiling slides
  • D1-8 camlock spindle for quick chuck removal
  • 12 Spindle speeds from 40 - 2000rpm
  • Large 80mm spindle bore
  • 5.5kW / 7.5HP 415V main motor
Includes
  • 2 Axis digital readout system
  • 275mm 3-jaw chuck with reverse jaws
  • 320mm 4-jaw chuck
  • 356mm face plate
  • Fixed Steady with roller bearings
  • Travelling steady with roller bearings
  • 4-position knock out feed system
  • Dead centres
  • Thread chasing dial
  • Foot brake
  • Coolant system
  • Work light
  • Rear splash guard
  • Spindle reducing bush
  • Instruction booklet
