HAFCO METALMASTERCL-100A

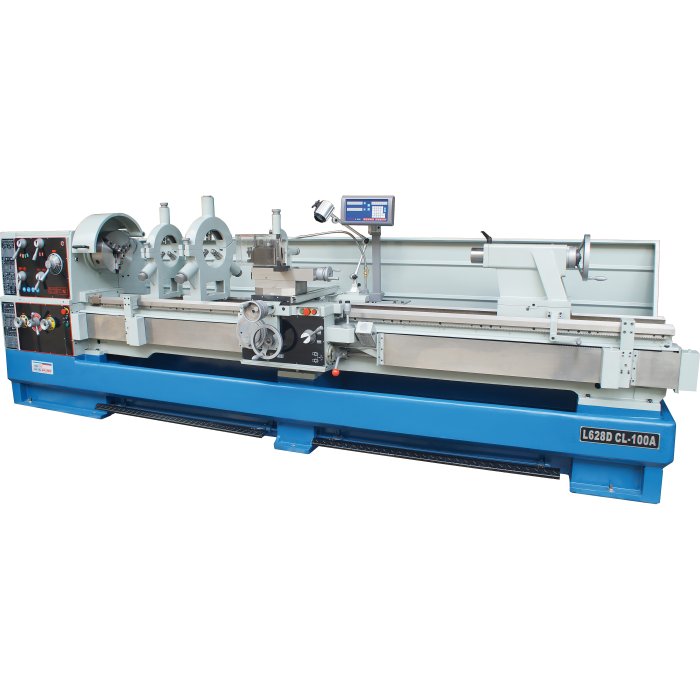

Centre Lathe
  • 1 of 36
    L628D
  • 2 of 36
    Front View
  • 3 of 36
    Left View
  • 4 of 36
    Digital Readout
  • 5 of 36
    Quick Change Toolpost
  • 6 of 36
    Taper Turning Attachment
  • 7 of 36
    Leadscrew Covers
  • 8 of 36
    Rapid Traverse Selection Lever On Saddle
  • 9 of 36
    Head Stock
  • 10 of 36
    Spindle Speed Controls
  • 11 of 36
    Spindle Speeds
  • 12 of 36
    Gearbox Controls
  • 13 of 36
    Feed Charts
  • 14 of 36
    Thread Charts
  • 15 of 36
    Chuck Guard
  • 16 of 36
    Removable Bed
  • 17 of 36
    Ground and Hardened Bed
  • 18 of 36
    3 Point Steady
  • 19 of 36
    2 Point Steady
  • 20 of 36
    Foot Brake
  • 21 of 36
    Saddle Left View
  • 22 of 36
    Saddle Front View
  • 23 of 36
    Saddle Right View
  • 24 of 36
    Coolant Nozzle And Worklight
  • 25 of 36
    Compound Slide
  • 26 of 36
    Compound Slide Dial
  • 27 of 36
    Compound Slide Angle Scale
  • 28 of 36
    Cross Slide Dial
  • 29 of 36
    Power Control Panel On Saddle
  • 30 of 36
    Saddle Hand Wheel
  • 31 of 36
    Saddle Dial
  • 32 of 36
    One Shot Lubrication
  • 33 of 36
    Thread Chasing Dial
  • 34 of 36
    Spindle Engage Lever
  • 35 of 36
    Tailstock
  • 36 of 36
    Tailstock Rear View
Order Code: L628D
CL-100A - Centre Lathe (415V)
660 x 3000mm Turning Capacity - 105mm Spindle Bore
Includes Digital Readout, Quick Change Toolpost & Taper Turning Attachment
HAFCO METALMASTER
ORDER CODE
L628D
MODEL
CL-100A
Swing Over Bed (mm)
660
Distance Between Centres (mm)
3000
Spindle Bore (mm)
105
Swing In Gap (mm)
900
Swing Over Cross-slide (mm)
440
Digital Readout System Fitted
Quick Change Toolpost Fitted
Leadscrew Covers Fitted
Taper Turning Attachment
Coolant System
Tool Height To Suit (mm)
25
Centre Height (mm)
330
Spindle Nose Size or Type
D1-8 Camlock
Bed Width (mm)
400
Headstock Spindle Taper (MT)
7
Tailstock Taper (MT)
5
Cross Slide Travel (mm)
368
Compound Slide Travel (mm)
230
Leadscrew Type
Metric
Metric Cross Feed (X-Axis) (mm/rev)
0.044 - 1.48
Metric Longitudinal Feed (Z-Axis) (mm/rev)
0.022 - 0.74
Metric Thread Steps & Pitch (No. / mm)
54 (0.45 - 120)
Imperial Thread Steps & TPI (No. / TPI)
54 (7/16 - 80)
3 Jaw Chuck Diameter (mm)
325
4 Jaw Chuck Diameter (mm)
400
Spindle Steps / Speeds (No. / rpm)
16 (25 - 1600)
Motor Power (kW / hp)
7.5 / 10
Voltage / Amperage (V / amp)
415
Nett Weight (kg)
3700
Features

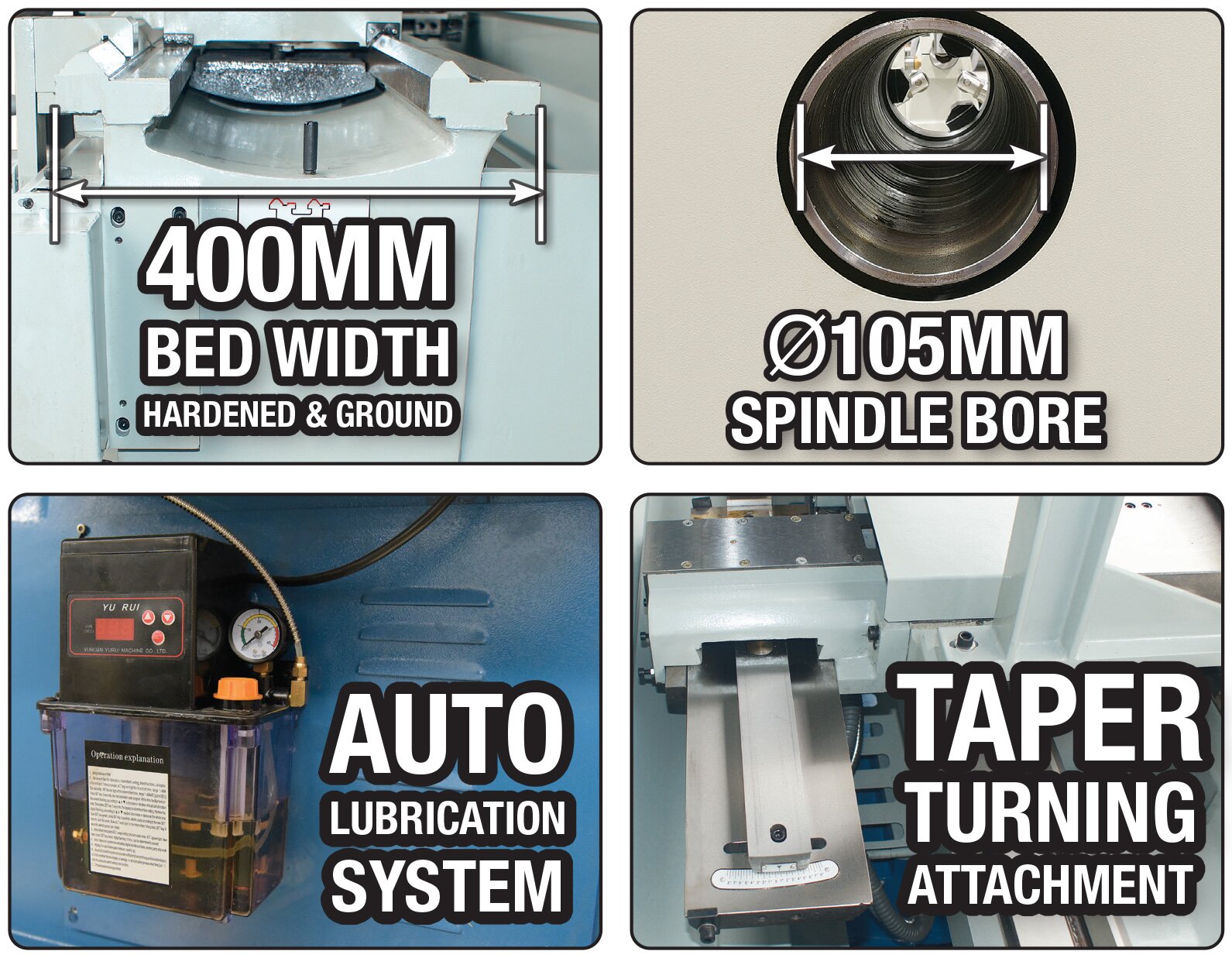

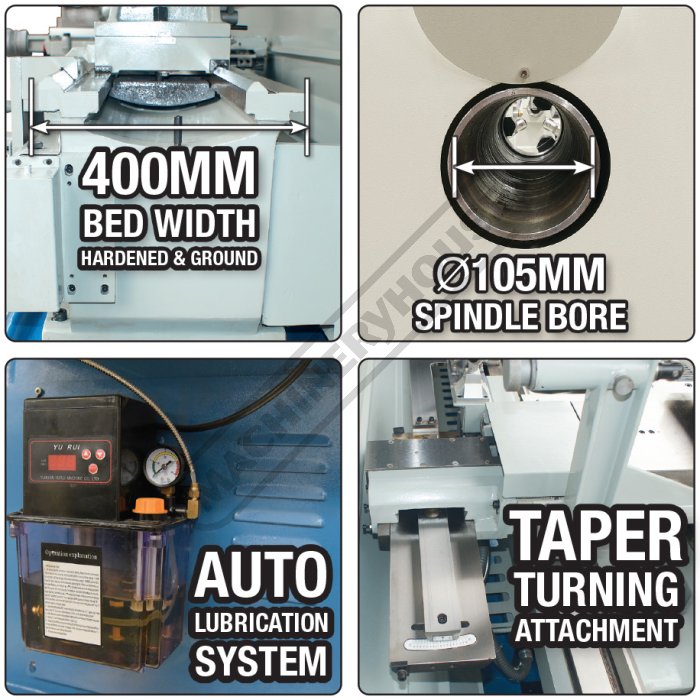

  • 2 Axis digital readout system
  • Taper turning attachment fitted to saddle
  • Triple bearings supporting headstock spindle
  • Quick change toolpost with additional holders
  • Adjustable taper roller bearings providing spindle accuracy
  • Precision 'V'-beds & headstock gears are all hardened & ground
  • Multiple discs forward and reversing clutch system
  • Overload protection on drive motor and coolant system
  • Universal enclosed gearbox incorporating metric & imperial thread capabilities
  • Foot operated spindle brake with safety cut out switch
  • X & Z axis rapid traverse selection lever incorporated on the saddle @ 4.5m/min
  • 400mm wide induction hardened heavy duty cast iron bed
  • Removable gap bed allowing work piece to swing up to 900mm
  • Cross slide handle disengages when auto feed is used
  • Saddle hand wheel disengages when auto feed is used
  • Adjustable clutch for auto feeds protects machine from overloading during machining
  • Chuck guard fitted with safety micro switch
  • Micro switch on side access door
  • Powered longitudinal and cross feeds
  • Metric / imperial calibrated feed dials
  • Coolant system with flexible hose enabling flow control & direction
  • Oil sight glass for head stock and gearbox & apron
  • Lubrication pump on saddle oiling slides
  • Low voltage halogen work light
  • D1-8 camlock spindle for quick chuck removal
  • 16 spindle speeds 25-1600rpm
  • Large 105mm spindle bore
  • 7.5kW / 10HP 415V main motor
Includes
  • 2 Axis digital readout system
  • Taper turning attachment
  • Leadscrew covers
  • 325mm 3-jaw chuck with reverse jaws
  • 400mm 4-jaw chuck
  • Face plate
  • Fixed steady with roller bearings
  • Travelling steady
  • Dead centres
  • Thread chasing dial
  • Foot brake
  • Coolant system
  • Work light
  • Rear splash guard
  • Spindle reducing bush
